Features
- HDMI incl. Deep Color and HDTV resolutions up to FullHD / 1080p
- CEC Auto-Switching and EDID emulation function
- Individual EDID Control between source and sink (no "bypass")
- Uncompressed, digital 7.1 HD Audio (DTS-HD Master Audio, etc.)
- Especially suitable for professional applications and installations
SIMPLE SIGNAL DISTRIBUTION WITH JUST ONE DEVICE

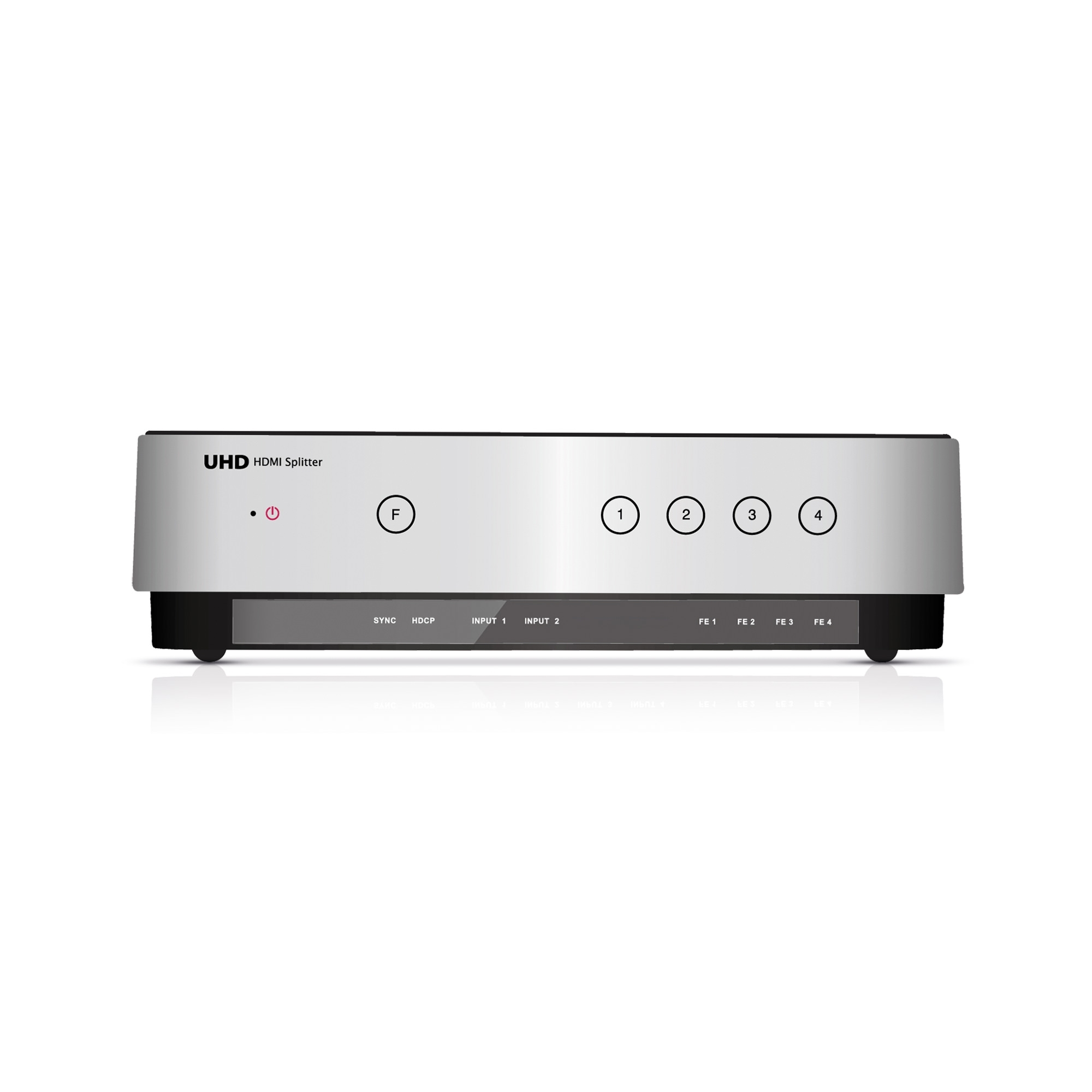

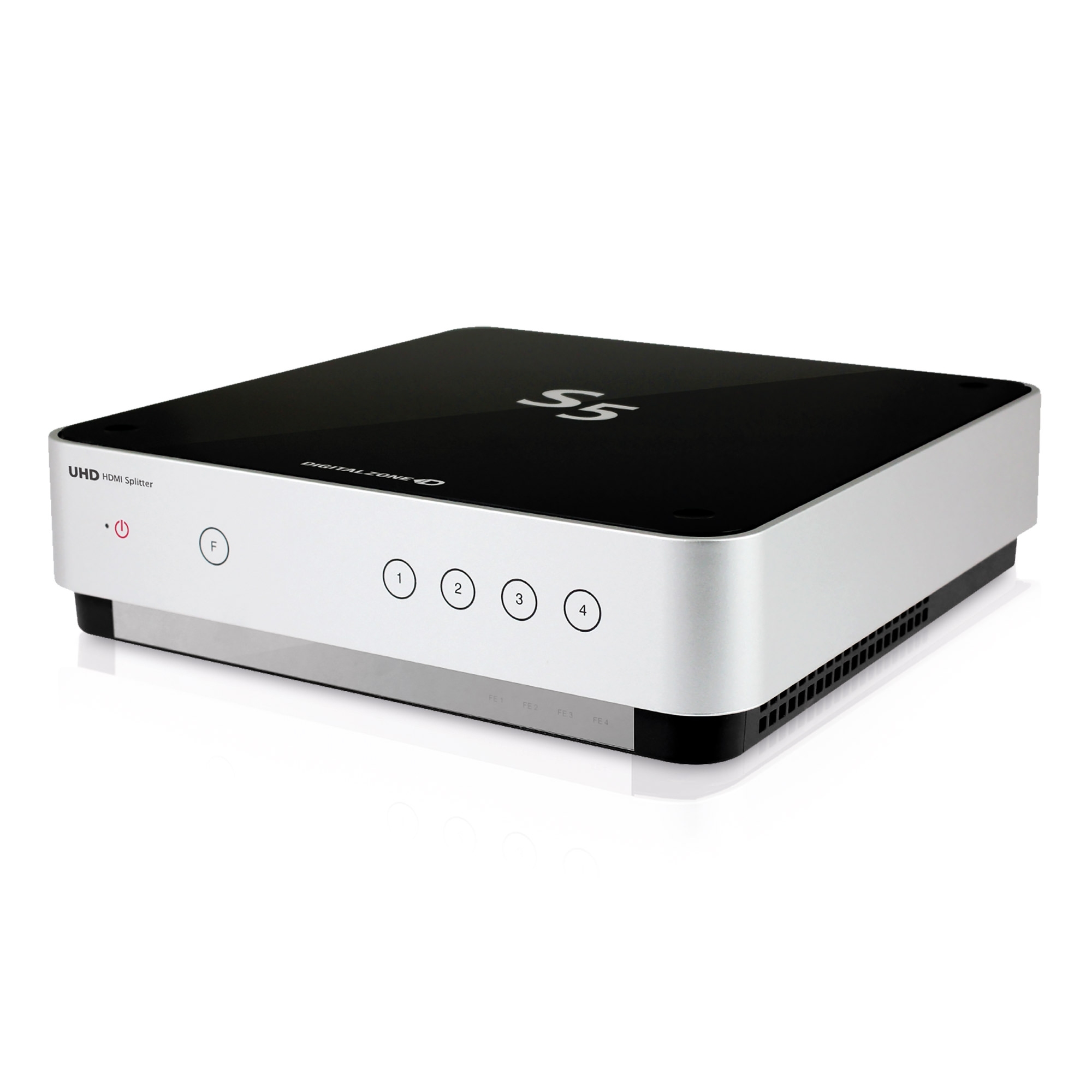

The flexible and portable switch on the go!The BV-HS2800 2x8 HDMI splitter included in the PureTools Series is a compact and portable design splitter with innovative sensor control panels and Smart Switch function for fast switching times. It allows for transmissions of FullHD video signals and high quality audio signals from up to two different sources to a maximum of eight different playback devices without any loss of quality. It can be directly used as plug-and-play solution. Thanks to its USB port, it is quickly and simply updatable. An extendable CEC emulation function serves as individual EDID control between source and sink.
The PureTools Series - High Quality AV Products for Commercial Applications
Our practice-oriented PureTools Series distinguishes itself by perfected technology complying with the latest standards and smartest innovations. Due to this, the products included in the PureTools Series are exceptional talents which are crucial for professional installers. Simple, Fast, Space-SavingThis PureTools splitter with integrated switcher allows for managing two HDMI input signals and eight HDMI outputs through a single device. A quick, flexible and especially simple use of input signals is guaranteed. The RS-232 input additionally provides a simple and quick control from one spot.Uncompressed FullHD Content and HD FormatsWith our PureTools HDMI splitters video and audio signals are being transmitted digitally and uncompressed in perfect quality. HDMI signals withFullHD, HDCP, 3D and DeepColor support are being transmitted with a resolution of 1920x1080 as well as unaltered digital audio signals up to 7.1 HD.Integrated Signal AmplifierThe integrated signal amplifier allows for the use of the splitter within an overall system and between splitter and sink over greater distances. Crystal clear images and ultra-pure sound are being transmitted without loss of quality to any output.Convincing - even in the DetailsThe splitters included in our PureTools Series are convincing in every detail, the devices profit from the optimisation for professional installations in known PureLink quality. With the transmission of RS-232 control signals as well as the integrated CEC emulation function, all precautions are taken for a professional use. The robust steel casing with optional installation into an AV rack simplifies the installation on location without any delays for installer and client. For Professional Purposes and InstallationsAll PureTools splitters are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the adapters undergo over ten quality tests, making them the most reliable choice on the market.
| Features |
| HDMI incl. Deep Color and HDTV resolutions up to FullHD / 1080p |
| CEC Auto-Switching and EDID emulation function |
| Individual EDID Control between source and sink (no "bypass") |
| Uncompressed, digital 7.1 HD Audio (DTS-HD Master Audio, etc.) |
| Especially suitable for professional applications and installations |
| Logistics Information | |
| Product 1. Net Weight in Kg | 0,80 |
| Product 1. Gross Weight in Kg | 1,30 |
| Packaging 1. Weight in Kg | 1 |
| Product 1. Length in cm | 21,5 |
| Product 1. Width in cm | 21,5 |
| Product 1. Height in cm | 6 |
| Packaging 1. Length in cm | 26 |
| Packaging 1. Width in cm | 23,5 |
| Packaging 1. Height in cm | 13 |
| Master Carton Length in cm | 55 |
| Master Carton Width in cm | 50 |
| Master Carton Height in cm | 31 |
| Product Information | |
| Europeans Customs Tariff Nr. | 85176200000 |
| Country of Origin | Korea |
| Packaging Material | Paper |
| VPE Information | |
| Master Packaging Unit (pcs) | 5 |
| Secondary Packaging Unit (pcs) | 1 |
| Connections | |
| Input connector(s) | 4x HDMI, 1x RS-232, 1x IR |
| Output connector(s) | 8x HDMI |
| Power connector(s) | 12V3A DC |
| Control connector(s) | RS-232, IR |
| Electric signal | |
| Digital video formats | 1080p@60Hz, 1080i, 720p/i, abwärtskompatibel |
| Digital audio formats | HD Surround Sound (Dolby TrueHD, DTS HD) bis 7.1 K |
| HDCP | Yes |
| CEC | Yes |
| EDID | Yes |
| Mechanical | |
| Power supply | Max. 10 Watt |
| Power consumption | 12V3A DC |
| Operating temperature | 0°C - 40°C |
| Storage temperature | -20°C - 60°C |
| Humidity | 20% - 90% |
| Enclosure | PVC |
| Dimensions | 223 x 195 x 63 mm |
| Signal transmission | |
| Supported standards | HDMI, HDMI Deep Color, RS-232, IR |
| Weiteres | |
| Safety | RoHS, WEEE, CE, FCC |
| Warranty | 3 Years Manufacturer's Warranty |
| Delivery Content |
| 1x BV-HS2800 |
| 1x 12V3A Power Supply |
| 1x IR Controller |
| 1x IR Extension |
