Features
  • DP version 1.2 – 21.6Gbps for resolutions up to 4K UltraHD 60Hz
  • Gold plated precision contacts with locking mechanism
  • DisplayPort male to DisplayPort male
  • High purity, tinned OFC copper conductors and triple shielding, AWG28
  • 100% tested for professional AV applications

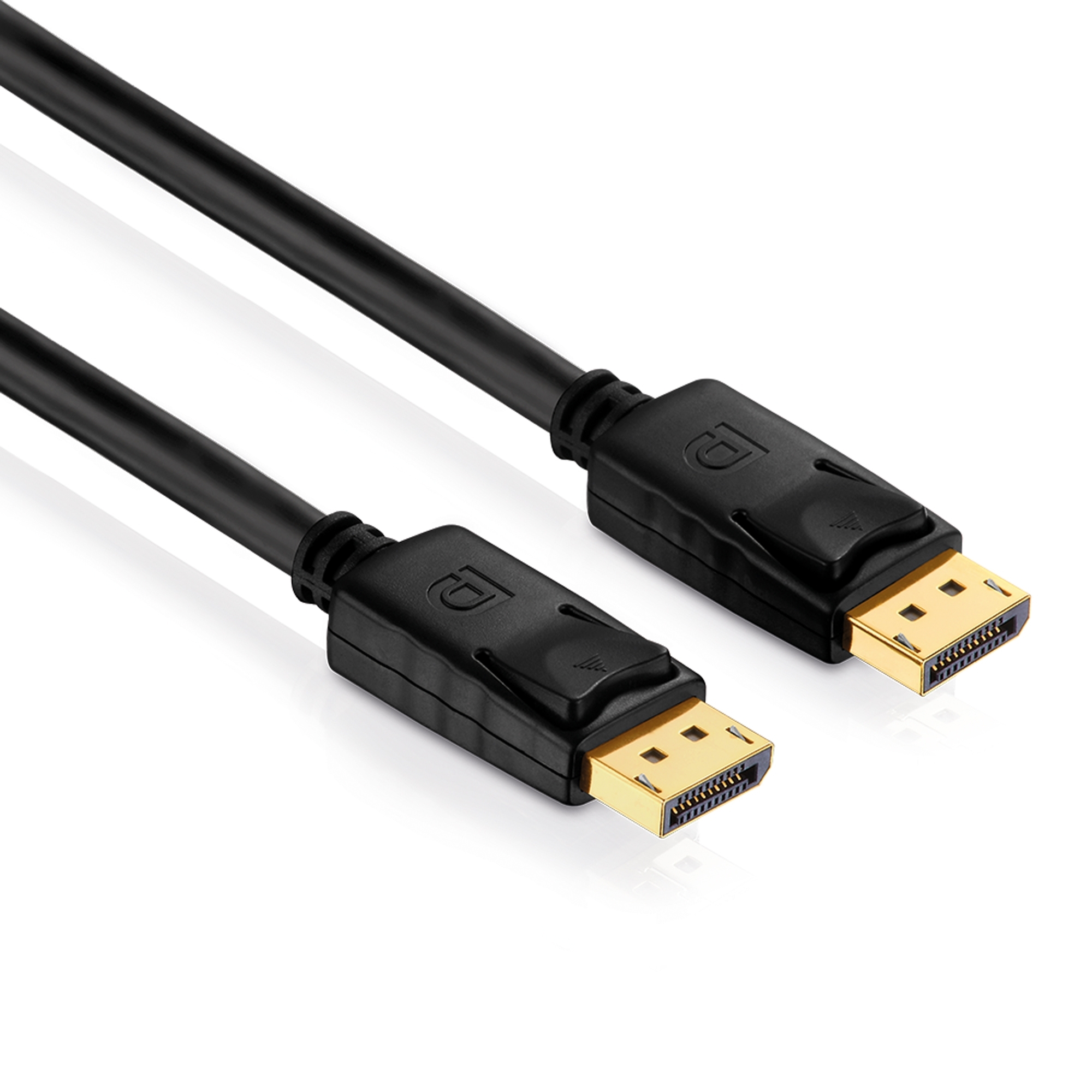

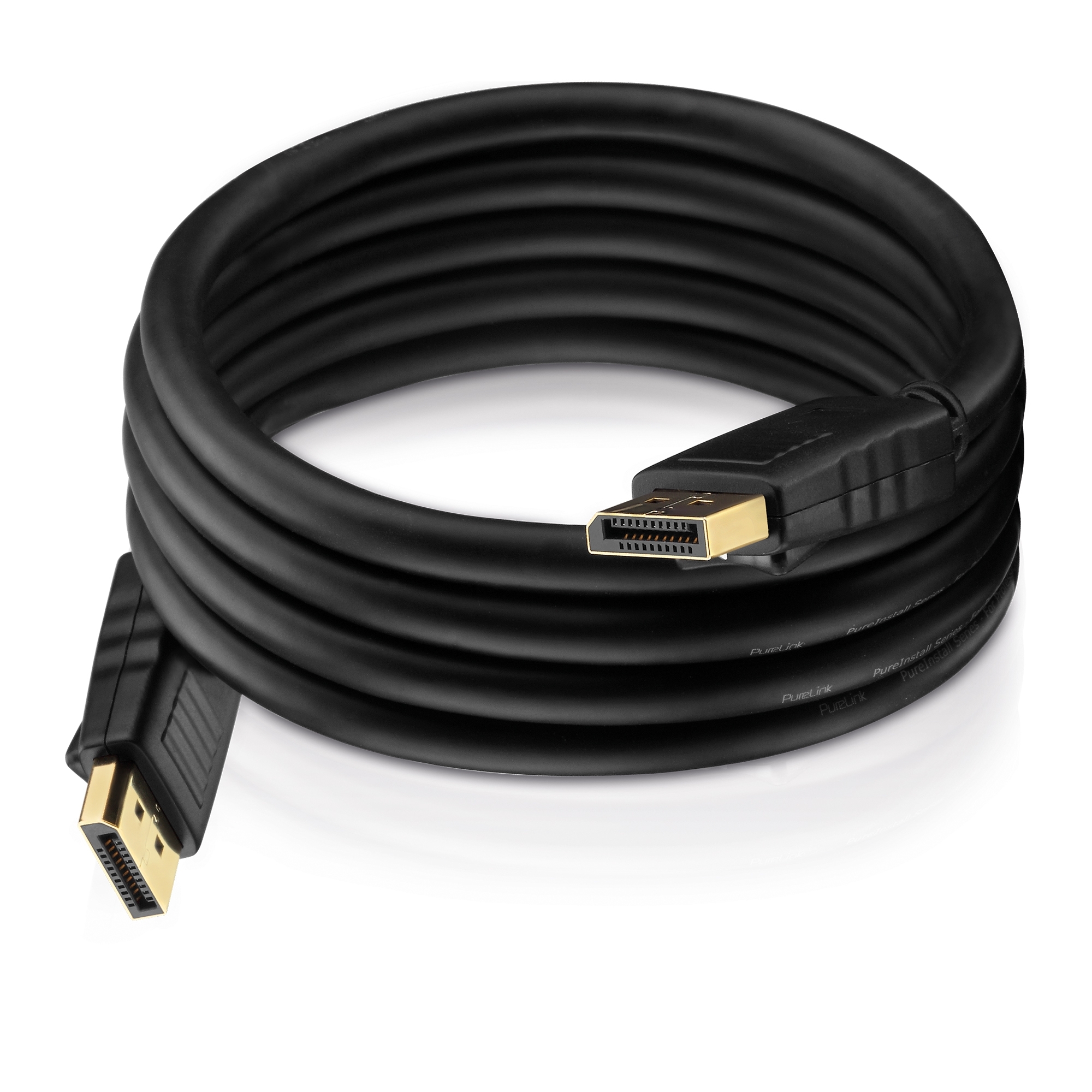

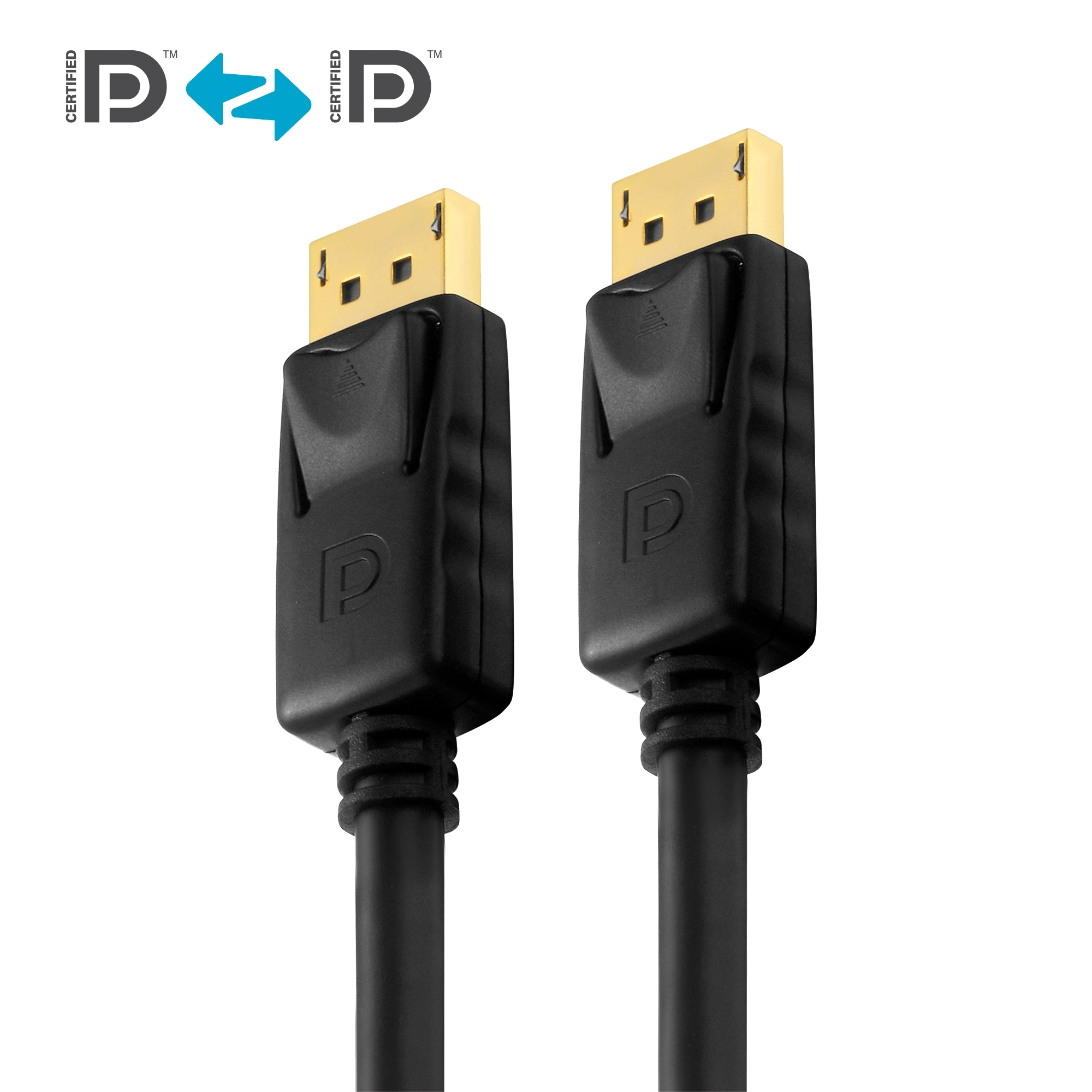

PureInstall PI5000 - DisplayPort Cable
The reliable connection of two DisplayPort devices!
The PI5000 DisplayPort cable offers the connection of two DisplayPort-ready devices with a resolution of up to 4K@60Hz / UltraHD @60Hz. This cable is the right choice for perfect signal transmission of this modern transmission standard. Both ends are equipped with the known PureInstall Series custom-fit and gold-plated plugs, which guarantee for a durable and undisturbed connection.
BENCHMARK FOR PROFESSIONAL INSTALLATIONS
High-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts, PureInstall products are a good investment for any field of use.

The Latest Generation
Our PureInstall DisplayPort cables comply with the DisplayPort standard. They support resolutions up to 4K/UltraHD@60Hz (3840x2160) for cable lengths up to 5m and are backwards compatible with all former DP specifications.

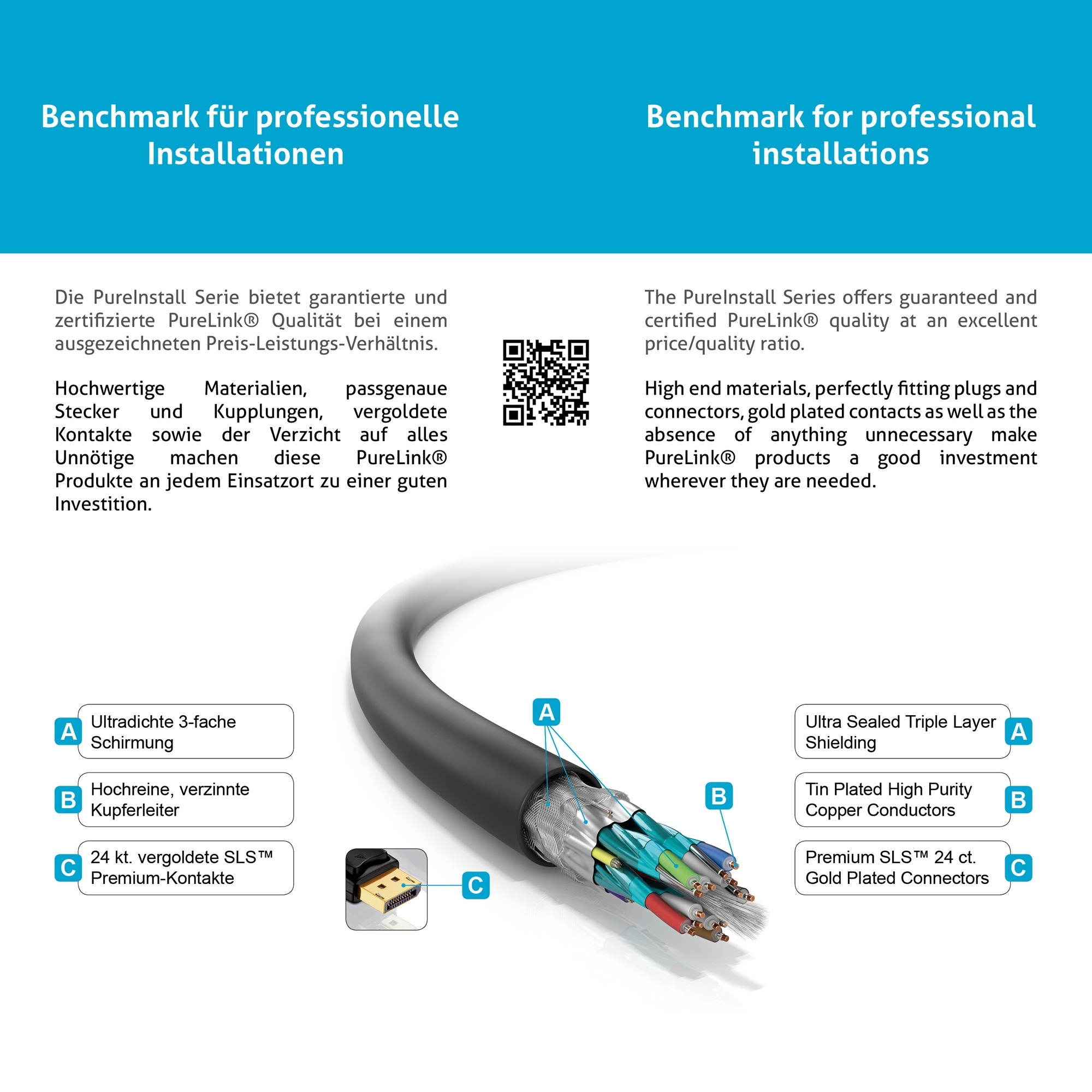

Triple Shielding
Our unique triple-shielding technology consists of a 100% closed aluminum foil, a thick netting and an additonal inner shielding. Due to this, our cable are immune from interferences and crosstalk. The ultra-pure inner conductor made of OFC copper can therefore unfold its full potential.

Custom-fit, Durable and Without Losses
The highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality. Our DVI cables have been tested for professional use and extreme bending.

For Professional Purposes and Installations
All PureInstall cables are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the cables undergo over ten quality tests, making them the most reliable choice on the market.
Features
DP version 1.2 – 21.6Gbps for resolutions up to 4K UltraHD 60Hz
Gold plated precision contacts with locking mechanism
DisplayPort male to DisplayPort male
High purity, tinned OFC copper conductors and triple shielding, AWG28
100% tested for professional AV applications
Logistics Information
Product 1. Net Weight in Kg 0,33
Product 1. Gross Weight in Kg 0,33
Product 1. Length in cm 16
Product 1. Width in cm 16
Product 1. Height in cm 3,5
Packaging 1. Length in cm 30,8
Packaging 1. Width in cm 21,6
Packaging 1. Height in cm 0,1
Master Carton Length in cm 41
Master Carton Width in cm 39
Master Carton Height in cm 21
Product Information
Europeans Customs Tariff Nr. 85444290900
Country of Origin China
Packaging Material Plastic
VPE Information
Master Packaging Unit (pcs) 20
Connections
Connector material PVC
Contact material 24 ct. gold plated, long-life design
Shielding Yes
Connector 1 DisplayPort male (20pin)
Connector 2 DisplayPort male (20pin)
Dimensions Con.1 53,0 x 20,0 x 11,0 (mm)
Dimensions Con.2 53,0 x 20,0 x 11,0 (mm)
Contacts 24 ct. gold plated, long-life design
Electric signal
Maximum pixel clock / bandwidth 4K / UltraHD / 2160p @60Hz, 8bit, 4:4:4 bzw. HDR
HDCP Yes
EDID Yes
Cable
Type Round cable
Lenght 5.0 meters
Inner conductor material Tinned OFC copper
AWG AWG28
Number of shieldings 3
Shielding 1 Aluminium foil (100% density)
Shielding 3 Mesh (100% density)
Outer material Elastic PVC
Outer diameter 7.3mm
Signal transmission
Supported standards DisplayPort
Transmission modes Digital audio and video signals
Supported Colors 16/24 bit RGB/YUV, Deep Color, x.v.Color™
Supported audio standards Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD
Further standards 3D, FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)
Weiteres
Safety CE (incl. RoHS), FCC
Colour black
Warranty Optional 15 Years Manufacturer's Warranty
Delivery Content
1x PI5000-050 DisplayPort cable, black, 5.0m
