Features
- Wireless 60GHz AV-transmission via HDMI up to 10m in line-of-sight
- HDMI version 2.0 for resolutions up to 4K UltraHD 30Hz
- HDMI-A female input to HDMI-A female output
- No interference with WiFi signals in the 2.4GHz and 5GHz range
- Compression-free transmission with <100ms latency
RESOURCES

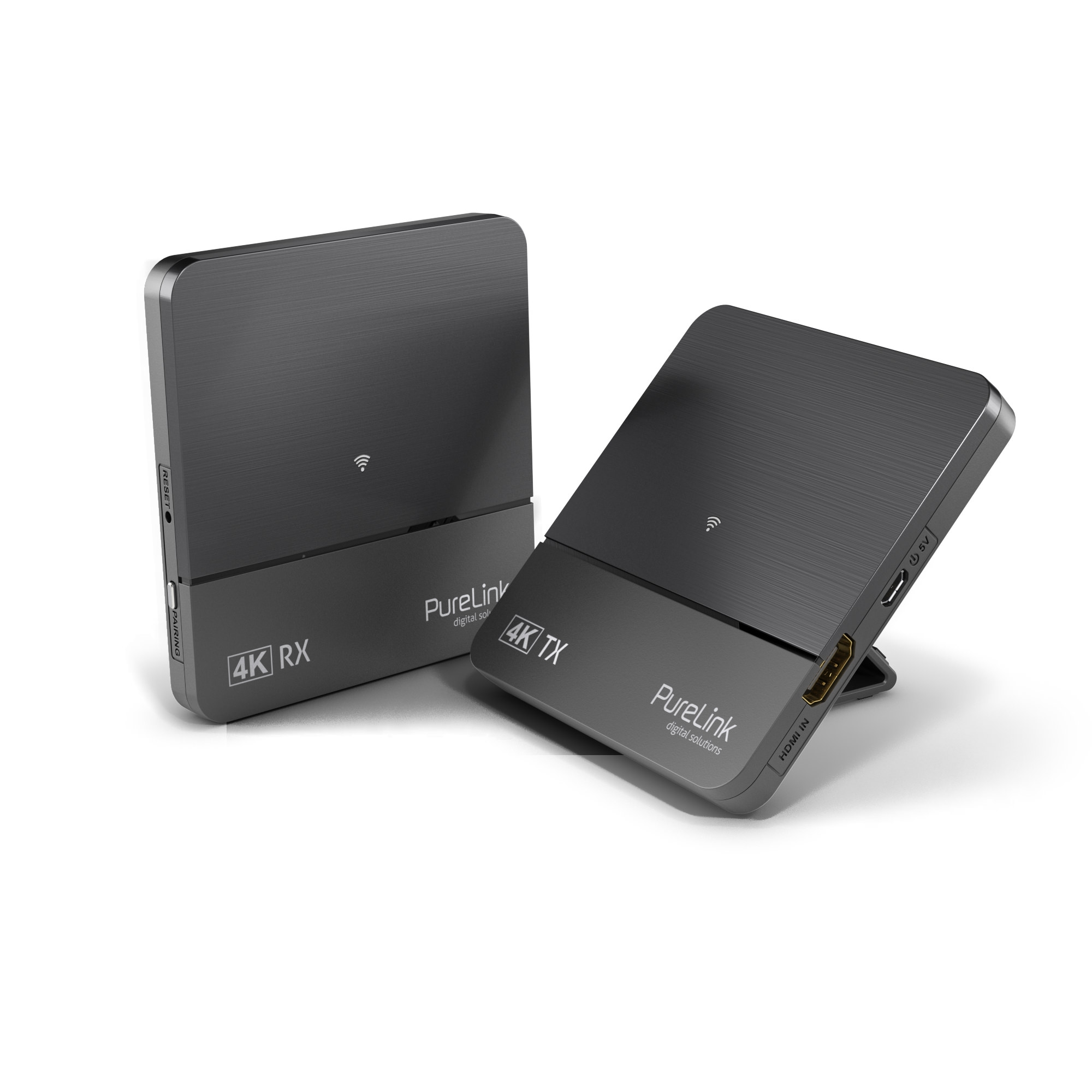

Cinema Series CSW200 4K / UltraHD Wireless HD Set, 10m

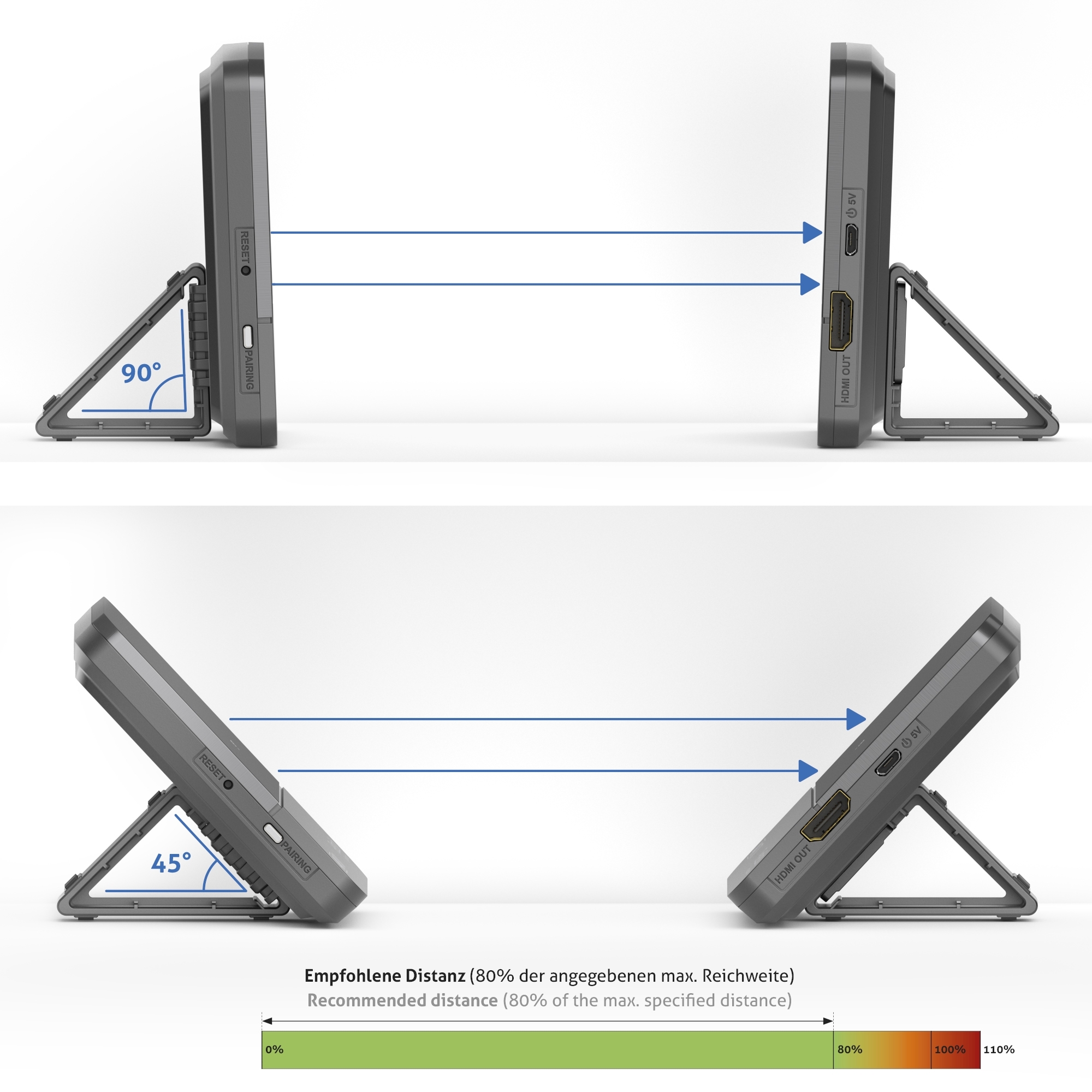

The CSW200 is the ideal product for 4K Wireless HD applications and operates in the 60GHz spectrum, thus avoiding any interference with home appliances in the 2.4GHz and 5GHz ranges. This ensures a high data transfer rate and strong anti-interference characteristics. The integrated high sensitivity matrix antennas can transmit 4K / UltraHD signals with 30Hz over up to 10m (30ft.) and with nearly no latency (<100ms). A clear line of sight and 90° angle between transmitter and receiver are recommended to reach the max. transmission range.
4K WIRELESS HD SIGNAL TRANSMISSION UP TO 10 METER

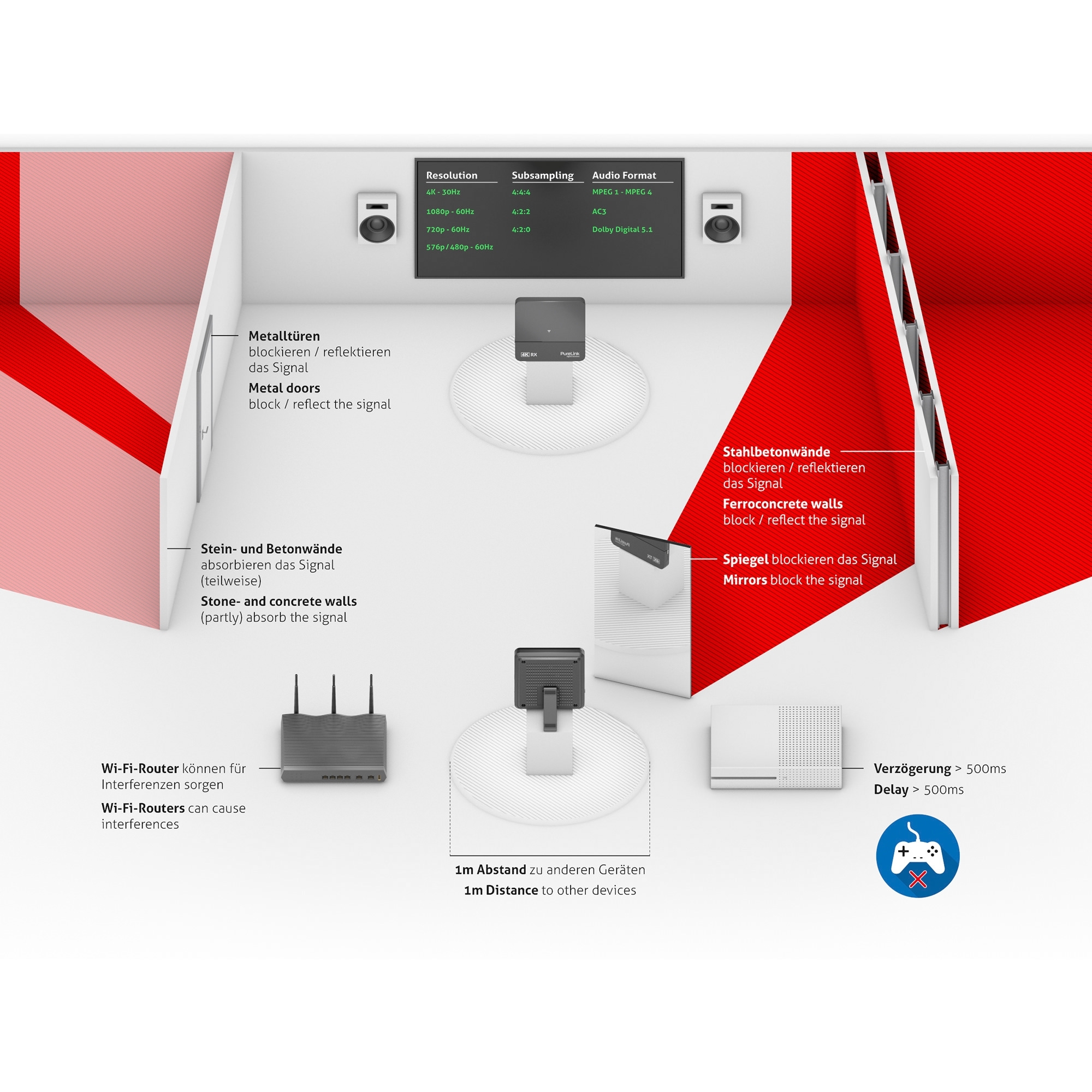

CSW200 is a Wireless HD extender set from PureLink, transmitting signals with up to 4K / UltraHD / 2160p resolution and including audio for the first time wirelessly over a distance of up to 10m.Up to 10 meters in line of sightTransfer signals with up to 4K / UltraHD / 2160p@30Hz over a maximum distance of up to 10 meters with almost invisible mounting. The transmission distance outside the line of sight can not be determined generally and depends on local conditions.60GHz frequency range for no interferenceCSW200 operates in the frequency range of 60GHz, avoiding interference of any kind with 2.4GHz / 5GHz home networks, i. e. WiFi.This is achieved by a professional chipset, allowing for uncompressed transmission with less than 100ms latency.Professional qualityWith a PureLink product, you always choose first-class professional quality. PureLink Wireless HD products master the challenge of perfectly transmitting images and sound even at the highest data rates. Our devices are optimized to the requirements of HDTV, so that no pixel errors are to be feared.Backwards compatibleThis PureLink Wireless HD Set is backwards compatible with all previous HDMI versions. So you do not have to pay attention to which HDMI versions your devices support.Recommended useThe CSW200 is ideal for the connection of devices with HDMI-A connectors.Use it between PC, DVD player, Blu-ray player, Playstation, Xbox One and LCD TV, LED TV, Plasma TV, Beamer or projector.
Features |
Wireless 60GHz AV-transmission via HDMI up to 10m in line-of-sight |
HDMI version 2.0 for resolutions up to 4K UltraHD 30Hz |
HDMI-A female input to HDMI-A female output |
No interference with WiFi signals in the 2.4GHz and 5GHz range |
Compression-free transmission with <100ms latency |
Logistics Information | |
Product 1. Net Weight in Kg | 0,31 |
Product 1. Gross Weight in Kg | 0,33 |
Product 1. Length in cm | 10 |
Product 1. Width in cm | 9,5 |
Product 1. Height in cm | 1,7 |
Packaging 1. Length in cm | 22,9 |
Packaging 1. Width in cm | 16,6 |
Packaging 1. Height in cm | 5 |
Master Carton Length in cm | 32,1 |
Master Carton Width in cm | 25,4 |
Master Carton Height in cm | 39,4 |
Product Information | |
Europeans Customs Tariff Nr. | 85176200000 |
Country of Origin | Taiwan |
Packaging Material | Paper |
VPE Information | |
Master Packaging Unit (pcs) | 10 |
Secondary Packaging Unit (pcs) | 5 |
Third Packaging Unit (pcs) | 1 |
Connections | |
Input connector(s) | Transmitter: 1x 5V microUSB Power Supply, 1x HDMI-A Socket | Receiver: 1x 5V microUSB Power Supply |
Output connector(s) | Receiver: 1x HDMI-A female |
Power connector(s) | 5V1A DC |
Electric signal | |
Maximum pixel clock / bandwidth | UltraHD / 4K / 2160p @30Hz, uncompressed |
Standards | Frequency 60G, uncompressed, nearly latency free |
Digital video formats | Up to UltraHD / 4K / 2160p @30Hz, uncompressed |
Digital audio formats | HDMI 1.4a compliant |
HDCP | Yes |
EDID | Yes |
Mechanical | |
Power consumption | 5V 1A DC |
Enclosure | Plastic |
Signal transmission | |
Supported standards | HDMI 1.4b, HDCP 2.0 |
Transmission modes | Digital audio and video signals |
Further standards | Wireless HD, HDCP, EDID |
Weiteres | |
Safety | CE, FCC, SGS |
Colour | black |
Warranty | Statutory guarantee rights |
Delivery Content |
1x CSW200 Transmitter |
1x CSW200 Receiver |
2x 5V/1A MicroUSB PSU |
2x Wall Mount |
1x User Manual |
