Social Connecting: Professional Teleconferencing with PT-PSW-21C

PT-PSW-21Cod58A4fzl5opz

Stay connected wherever you are

Use any environment as an online virtual conference room for cloud meetings

Stay Connected with Business, Family and Friends

What an awful situation. Coronavirus compels us not to come too close to other people. Even the usual, polite physical distance between people is too short to be safe. When we talk about Social Distancing, we actually only mean the physical distance to other people.

We don't want to miss the professional contact, but also the contact to family and friends - so we need to find new approaches. Platforms such as MicrosoftTeams or Zoom, which enable an uncomplicated and decentralized exchange of information between participants, are now of utmost importanceit.

To be able to use one's own laptop or a permanently installed PC including webcam and microphone for the conference, a central switching unit is required that can process and distribute different signals.

The Pure Tools PT-PSW-21C is a mobile, versatile switcher for all signals and environments.

For these applications PureLink has specially designed the compact 2x1 Soft Codec AV Switch PT-PSW-21C, which can process signals with resolutions up to 4K at 60Hz.

PureLink's PureTools PT-PSW-21C is a mobile, versatile signal switch for all signals and environments.

The switch allows you to integrate HDMI, USB-C or DisplayPort signals into a meeting. Devices connected to the USB 3.0 ports, such as cameras and microphones, are automatically switched to ensure that no interpersonal nuance is lost in the data stream.

The PT-PSW-21C provides additional functions that make social interaction in these times so much easier. The integrated "Auto-Switch" function detects an active video stream and can automatically switchwithout a hot plug" trigger.

To also work with older displays easily, the switch features a downscaler that adapts the output signal to the display format, thus ensuring universal compatibility. In addition, the switch can also decouple an applied audio signal so that the sound is also available locally. With support of the USB Power Delivery Standard, connected USB-C devices can be additionally charged during normal operation with up to 40W power.

Key Features

  • Two switchable input signals (HDMI, USB-C) to 1 output (HDMI)

  • Automatic signal switching

  • AResolutions up to 4K / UltraHD with 60Hz, 4:4:4 incl. HDCP 2.2, HDR10 and Dolby Vision support

  • USB-C connection: data (v3.1) and 4K video signals and charging function with up to 40W

  • Balanced analog audio extraction (5-pin Phoenix)

  • USB-A (v3.1/2.0) peripheral ports - automatically switched with HDMI and USB-C for USB integration with active hosts

  • Simultaneous charging of mobile devices via USB-C port

  • Connect an external webcam  to USB-C or Host USB

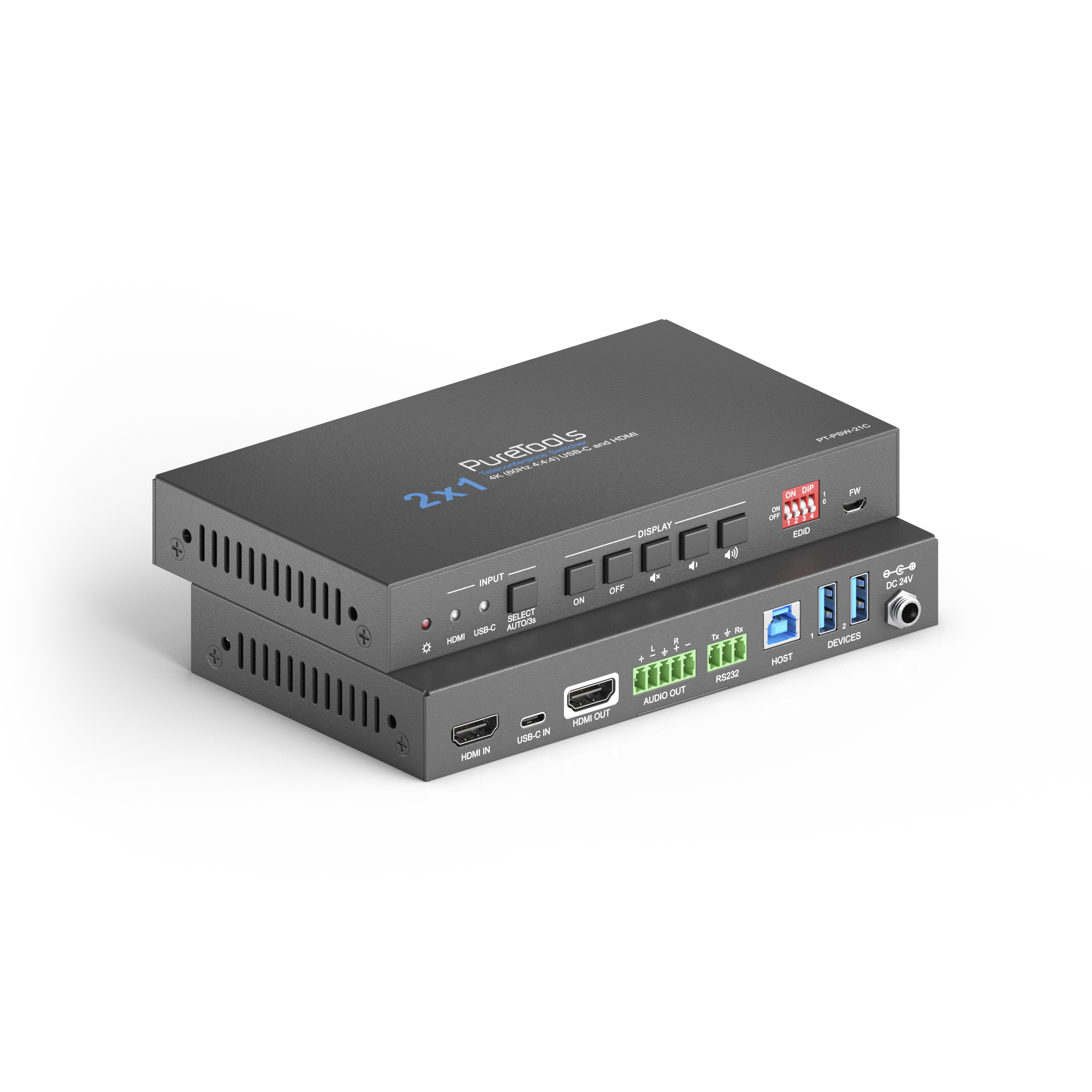

PureTools PT-PSW-21C - 2x1 Multiformat Teleconference Switcher
