- Cat.6a with up to 500MHz for 10GBase-T Ethernet and HDBaseT
- Gold plated precision contacts
- RJ45 male to RJ45 male
- High purity copper strands, S/FTP shielding, AWG27
- Halogen-free (LSZH) jacket, low smoke emissions in case of fire

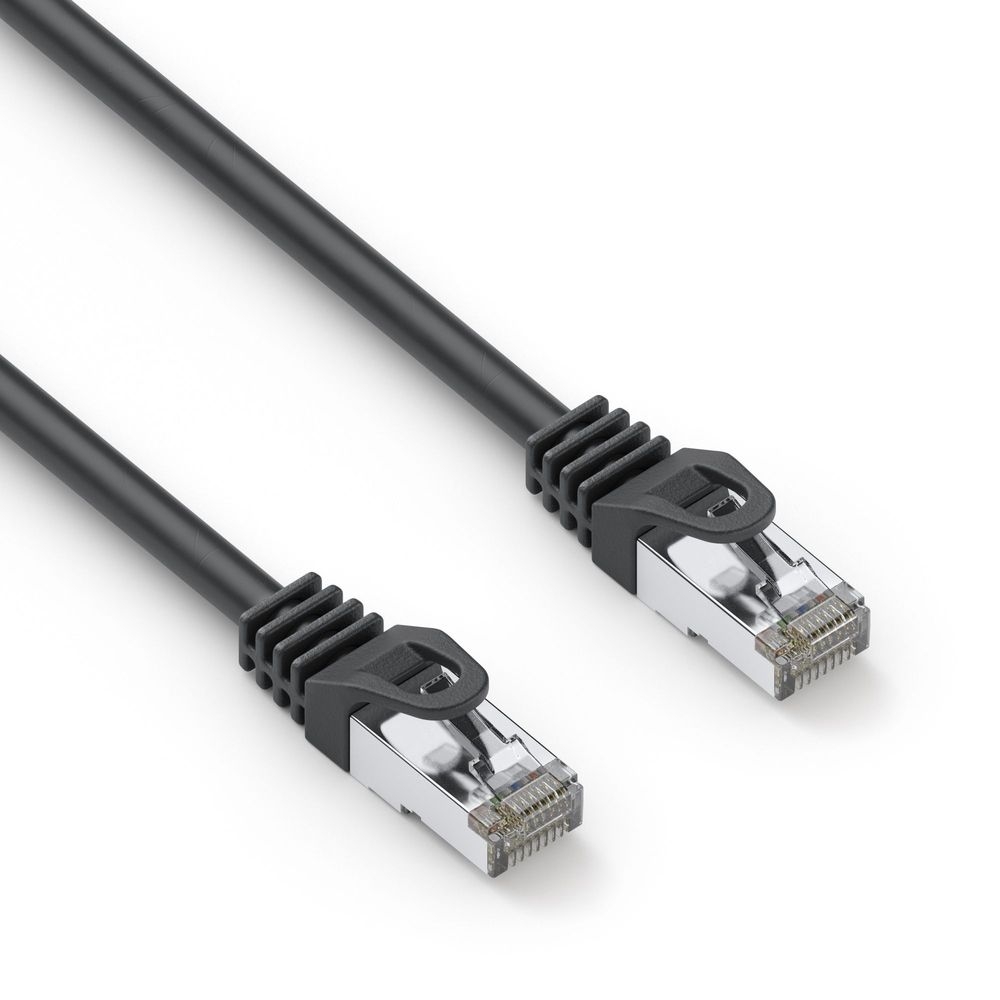

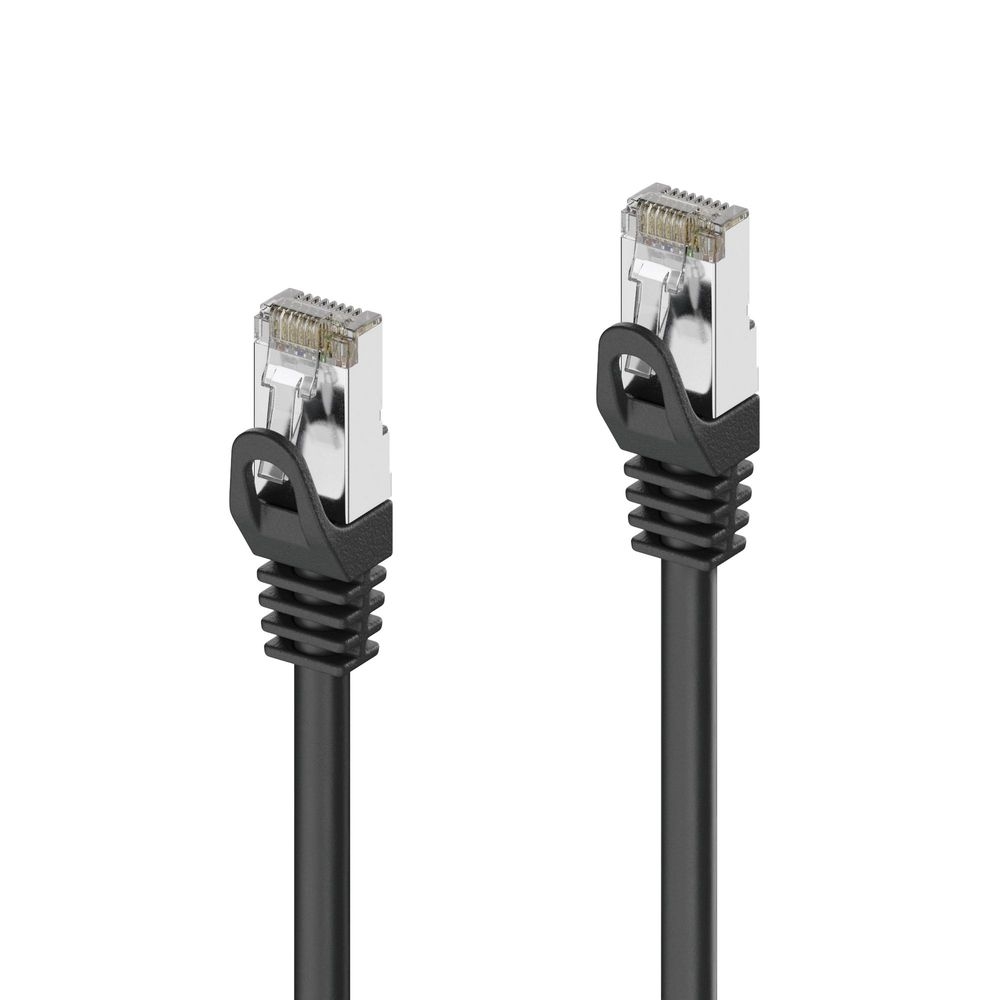

IQ Series IQ-PC1000 Cat.6A S/FTP Patch Cable, black
The IQ-PC1000-100 is a 10.00 meter long Cat.6A Ethernet patch cable included in the IQ series by PureLink, which is equipped with RJ45 connectors and a halogen-free cable sheathing. The halogen-free production of the cable results in less smoke in case of fire (LSZH). The cable with 5.8mm outer diameter enables data transmission speeds of up to 10,000 Mbit/s (10 Gigabit / second) with an operating frequency of up to 500MHz. It is also equipped with S/FTP shielding, high-purity copper strands and gold plated precision contacts.
The IQ Series by PureLink – Installation Quality for Intelligent Quotations
The Ethernet cables of the IQ series are designed for the distribution of network signals with up to 10 Gigabit and thus enable IP streaming as well as HDBaseT infrastructures in addition to conventional TCP/IP distribution. The cables with an outer diameter of 5.8mm comply with worldwide IT industry standards, such as ANSI / TIA-568-C.2 and ISO / IEC 11801 Ed 2.2 and are based on the specifications for structured cabling. They are perfectly suitable for easily connecting computers and peripherals in wired local home or office networks.
The IQ network cables comply with the Cat.6A standard and feature S/FTP shielding. The plug contacts are gold-plated, the plug itself is made of transparent PVC and a nickel-coated plug housing.
The cable is free of halogens (LSZH - Low Smoke Zero Halogen) and therefore develops significantly less smoke in case of fire than cables that have been manufactured with halogens.
The IQ patch cables are available in lengths between 0.25 and 20.00 meters and can therefore be used for short distances, such as in patch panels or IT racks, but also for long distances, such as for AV over IP or HDBaseT transmission.
To simplify cabling organization, the Ethernet cables are available in 5 different colors: black (IQ-PC1000), grey (IQ-PC1001), white (IQ-PC1002), blue (IQ-PC1004) and red (IQ-PC1005).
IQ Series - Installation Quality for Intelligent Quotations
No frills installation-level products at a fair price - this concept defines perhaps the smartest product line from PureLink.
IQ can be taken quite literally: A "Smart Buy" for every planner and installer, featuring products and intelligent little helpers for the integrators' everyday needs.
We thought it through so that you can focus on the job at hand.
This applies to professional purchasing staff, but also to the single installation and everyday use of PureLink IQ products.
|Cat.6a with up to 500MHz for 10GBase-T Ethernet and HDBaseT|
|Gold plated precision contacts|
|RJ45 male to RJ45 male|
|High purity copper strands, S/FTP shielding, AWG27|
|Halogen-free (LSZH) jacket, low smoke emissions in case of fire|
|Product 1. Net Weight in Kg||0,30|
|Product 1. Gross Weight in Kg||0,34|
|Product 1. Length in cm||16|
|Product 1. Width in cm||16|
|Product 1. Height in cm||5|
|Packaging 1. Length in cm||28|
|Packaging 1. Width in cm||25|
|Packaging 1. Height in cm||0,00|
|Master Carton Length in cm||40|
|Master Carton Width in cm||30|
|Master Carton Height in cm||30|
|Europeans Customs Tariff Nr.||85444210000|
|Country of Origin||China|
|Master Packaging Unit (pcs)||30|
|Connector material||Plastic, Metal Shell|
|Dimensions Con.1||14,4 x 11,8 x 41,00 mm|
|Dimensions Con.2||14,4 x 11,8 x 41,00 mm|
|Standards||ANSI / TIA-568-C.2, ISO / IEC 11801 Ed 2.2|
|Inner conductor material||Copper|
|Warranty||3 Years Manufacturer's Warranty|
|1x IQ-PC1000-100 Cat.6A Patch Cable, RJ45, S/FTP, LSZH - 10.00m, black|
