- Cat.6a with up to 500MHz for 10GBase-T Ethernet and HDBaseT
- Gold plated precision contacts
- RJ45 male to RJ45 male
- High purity copper strands, S/FTP shielding, AWG26
- Halogen-free (LSZH) PE jacket, low smoke emissions in case of fire
Each AV Infrastructure is Unique

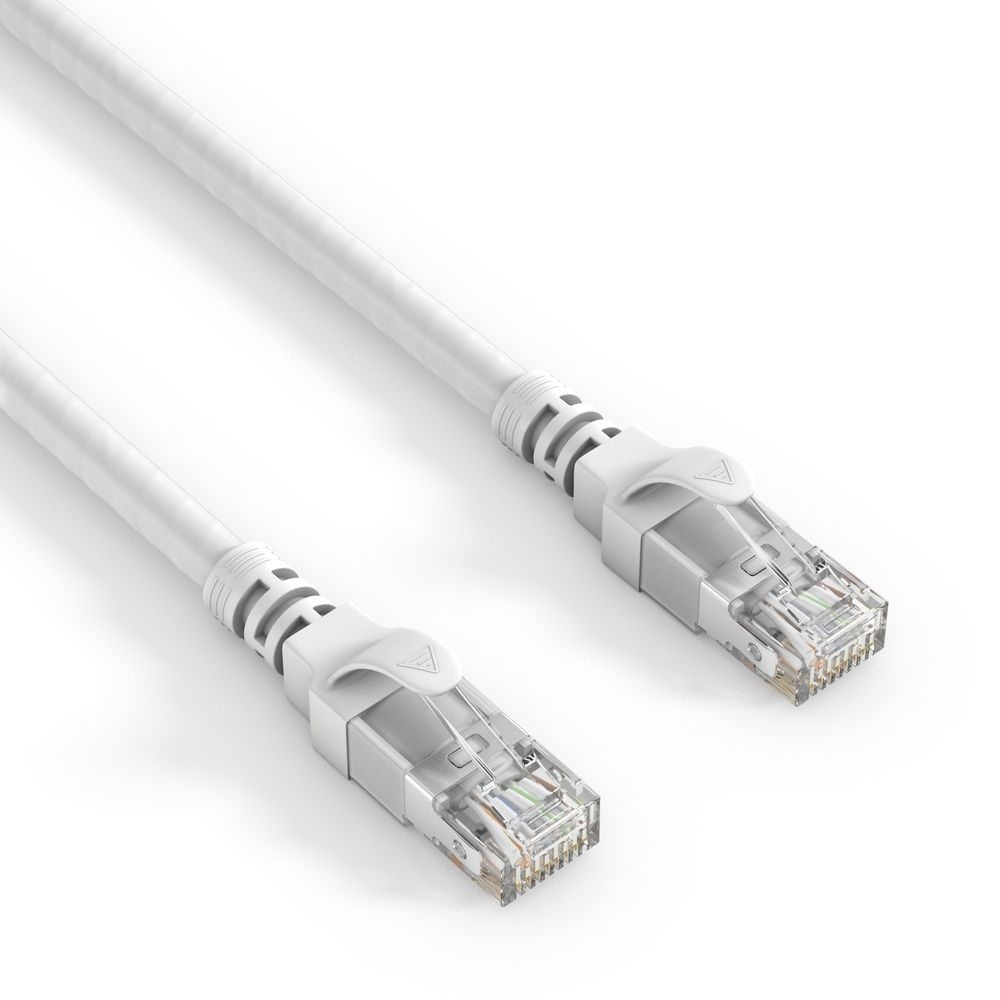

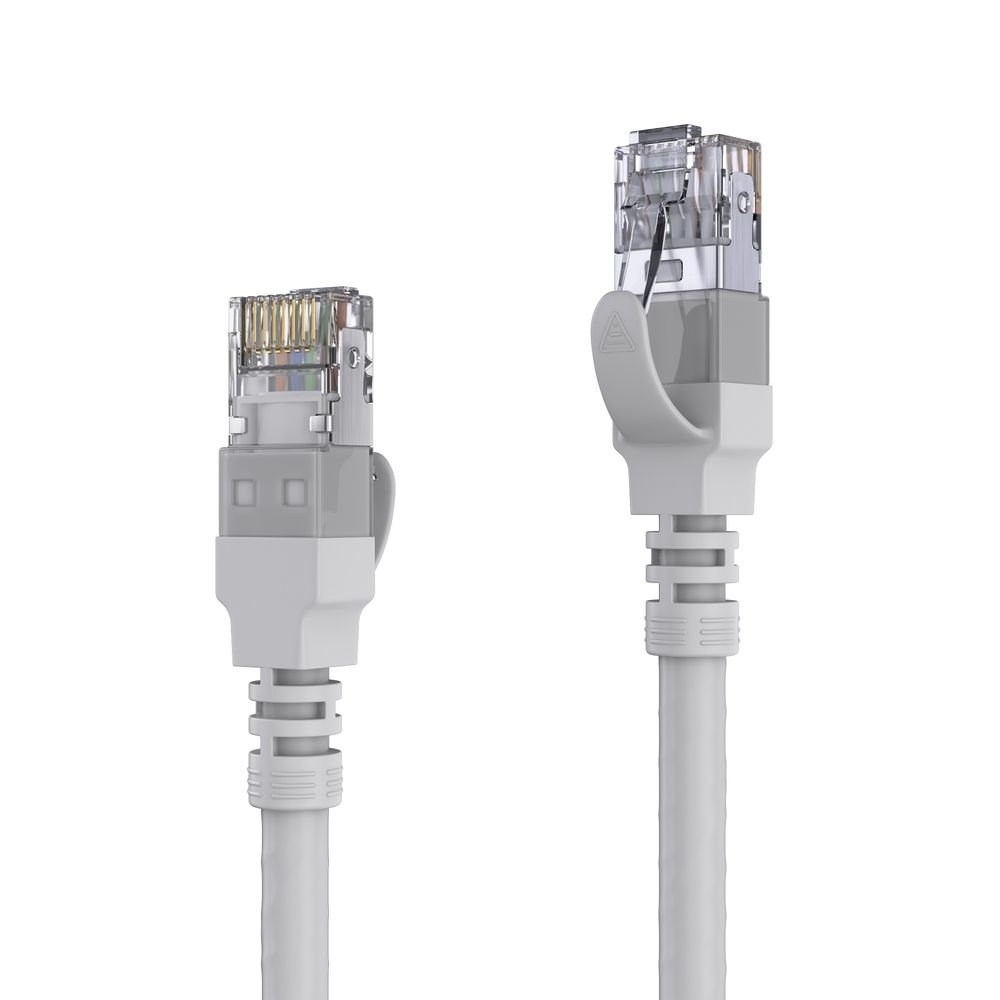

This Cat.6a cable transmits signals with up to 500MHz and is thus suitable for 10GBase-T Ethernet, AV over IP and HDBaseT applications, and more. The cable is equipped with RJ45 precision contacts on both sides which are plated with 50µ of gold while the cable itself features high purity OFC copper strands (AWG26) as well as S/FTP shielding. The cable has a low resistance and is thus perfectly suitable for long transmission distances. The low-profile, snag-resistant boot design with robust strain and bend relief collar ensures long-term durability. The cable sheathing / jacket is made of halogen-free (LSZH) PE material which emits a low amount of smoke in case of fire. These cables are manufactured in a ISO 9001-2005 certified patchcord factory and are compliant with ANSI/TIA-568.C.2, ISO/IEC 61156-6 & 11801 as well as EN50288-4-2 & EN50173.
Reliable Cables for 10GBase-T Ethernet and HDBaseT Signal Transmission
With the advance in virtualization of LAN and SAN infrastructure, the boundaries in the cabling industry are being pushed further out. Based on good understanding of today's vital business and technology challenges and how they impact data centers, AVIT Media offers the best-of-class physical infrastructure solutions. It is a set of complementary network copper technologies to ensure better network performance, systems reliability, energy efficiency and more flexibility for all kinds of infrastructure. AVIT Media products provide the extra advantage of performance and stability to make sure that the network deployed today can carry any customer into the future.
AVIT Media products acquire the advantage of being engineered in one of the world's hottest spots for high-end electronics and information technology. Companies around the world rely on the high quality of components developed and designed here to maintain their own standards of quality and reliability. Industry specialists know that there is no better source for electronic components.
AVIT Media technology powered products simplify the distribution of 10 Gigabit Ethernet, IP streaming and point-to-point 4K / UltraHD AV signals. The AVIT Media series features a variety of modular Cat.6 / Cat.6a products and is designed to comply with worldwide industrial IT standards as well as to fulfill the requirements of structured cabling. The Cat.6a cables of the AVIT Media series are manufactured in a ISO 9001-2005 certified patchcord factory and are compliant to ANSI/TIA-568.C.2, ISO/IEC 61156-6 & 11801, EN50288-4-2 & EN50173.
AVIT Media - Reliable Cables for 10GBase-T Ethernet and HDBaseT Signal Transmission
AVIT Media technology powered products simplify the distribution of 10 Gigabit Ethernet, IP streaming and point-to-point 4K / UltraHD AV signals. The AVIT Media series features a variety of modular Cat.6a products and is designed to comply with worldwide industrial IT standards as well as fulfilling the requirements of structured cabling. With its forward thinking product standards, the AVIT Media Series exceeds all applicable industry standards such as ANSI / TIA-568-C.2 and ISO / IEC 11801 Ed 2.2.
|Cat.6a with up to 500MHz for 10GBase-T Ethernet and HDBaseT|
|Gold plated precision contacts|
|RJ45 male to RJ45 male|
|High purity copper strands, S/FTP shielding, AWG26|
|Halogen-free (LSZH) PE jacket, low smoke emissions in case of fire|
|Product 1. Net Weight in Kg||0,90|
|Product 1. Gross Weight in Kg||0,90|
|Product 1. Length in cm||24|
|Product 1. Width in cm||24|
|Product 1. Height in cm||5,5|
|Packaging 1. Length in cm||35|
|Packaging 1. Width in cm||30|
|Packaging 1. Height in cm||0,1|
|Master Carton Length in cm||55,5|
|Master Carton Width in cm||37,5|
|Master Carton Height in cm||26|
|Europeans Customs Tariff Nr.||85444210000|
|Country of Origin||China|
|Master Packaging Unit (pcs)||20|
|Contact material||50µ gold-plated|
|Type||Cat.6a round cable|
|Inner conductor material||OFC copper|
|Outer material||PE (LSZH)|
|Supported standards||ANSI/TIA-568.C.2, ISO/IEC 61156-6 & 11801, EN50288-4-2 & EN50173|
|Warranty||3 Years Manufacturer's Warranty|
|1x MC1001-250 Cat Cable, grey, 25.00m|
Dokumente "Premium Cat.6a Patch Cable, RJ45, S/FTP, LSZH – 25.00m, Grey"
