PI5200-015

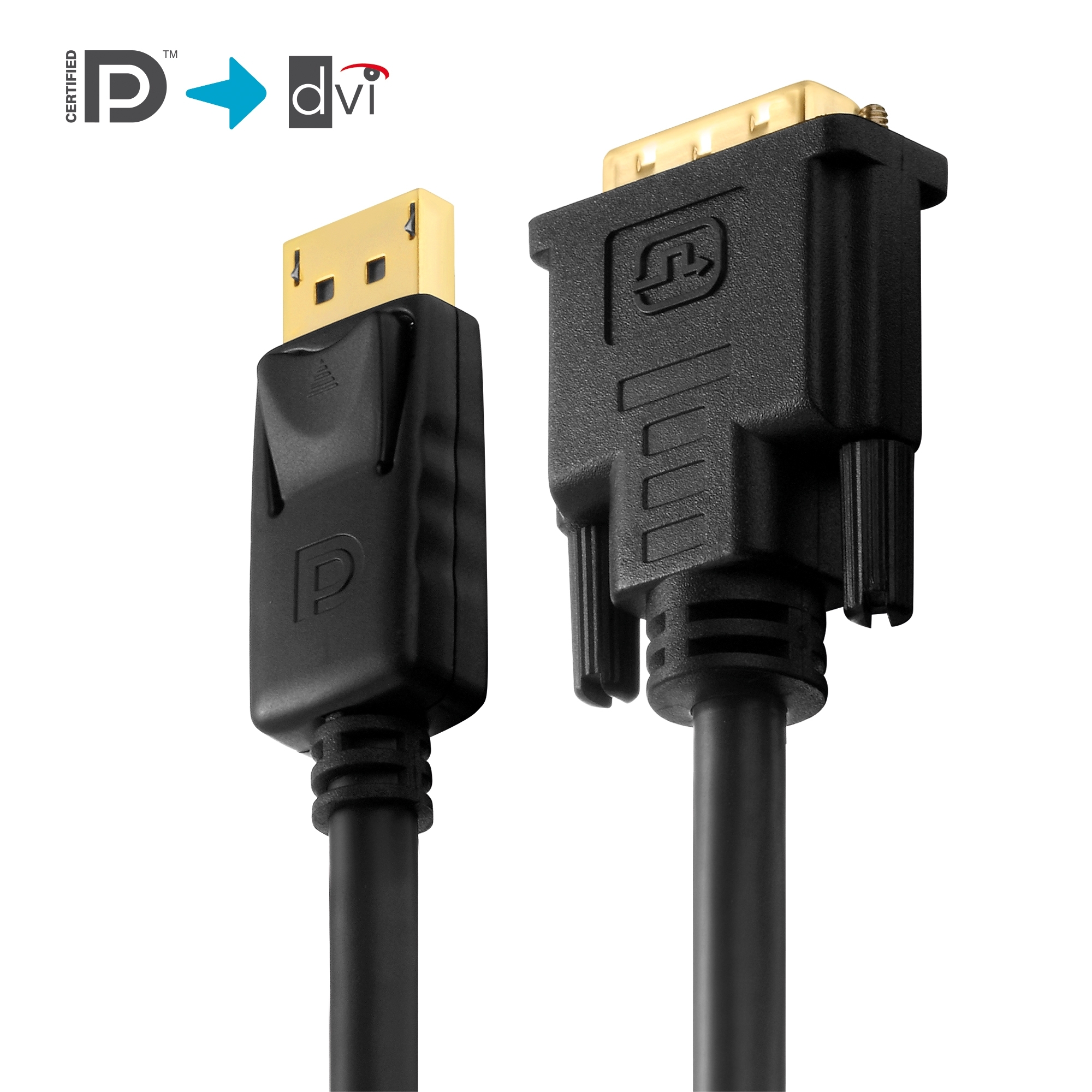

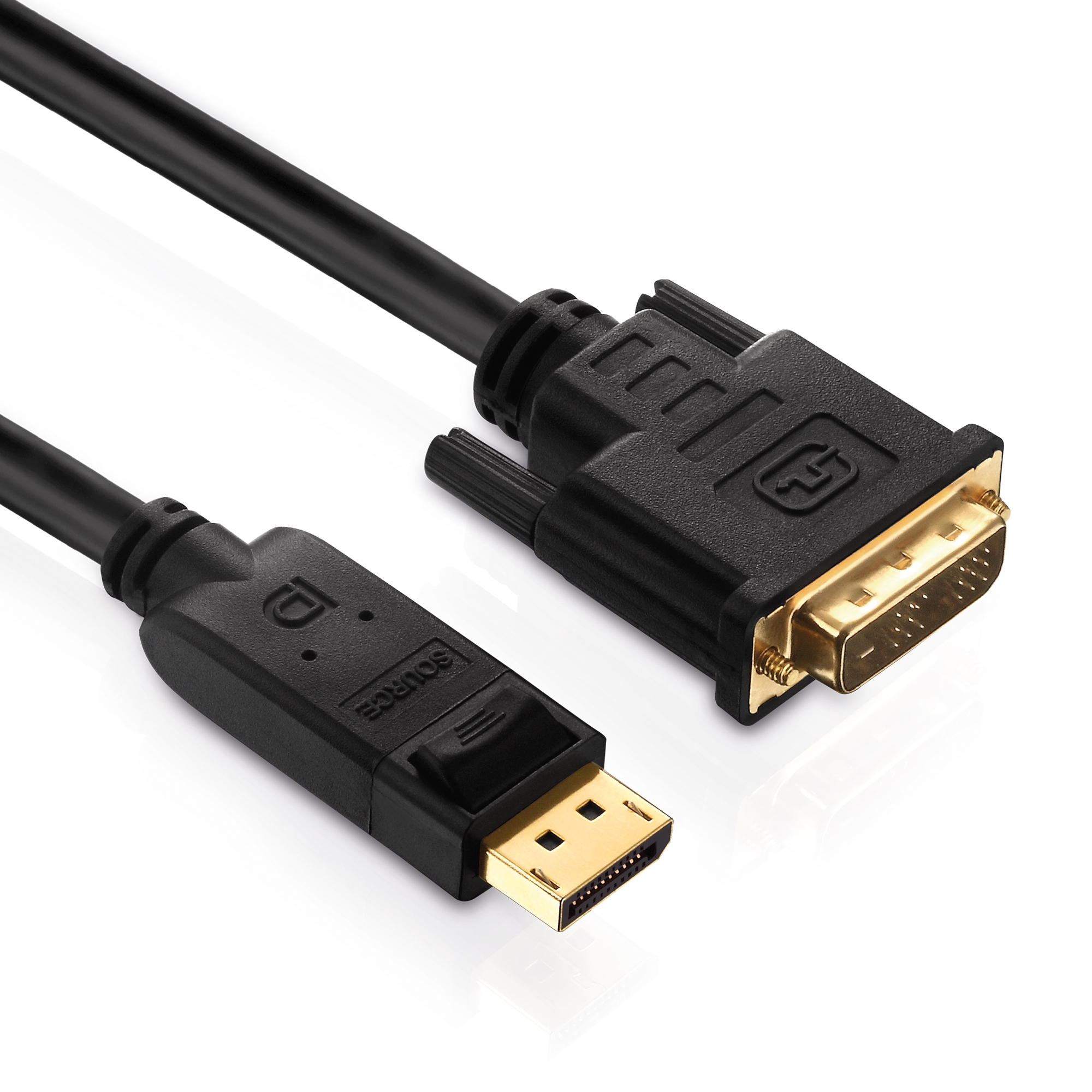

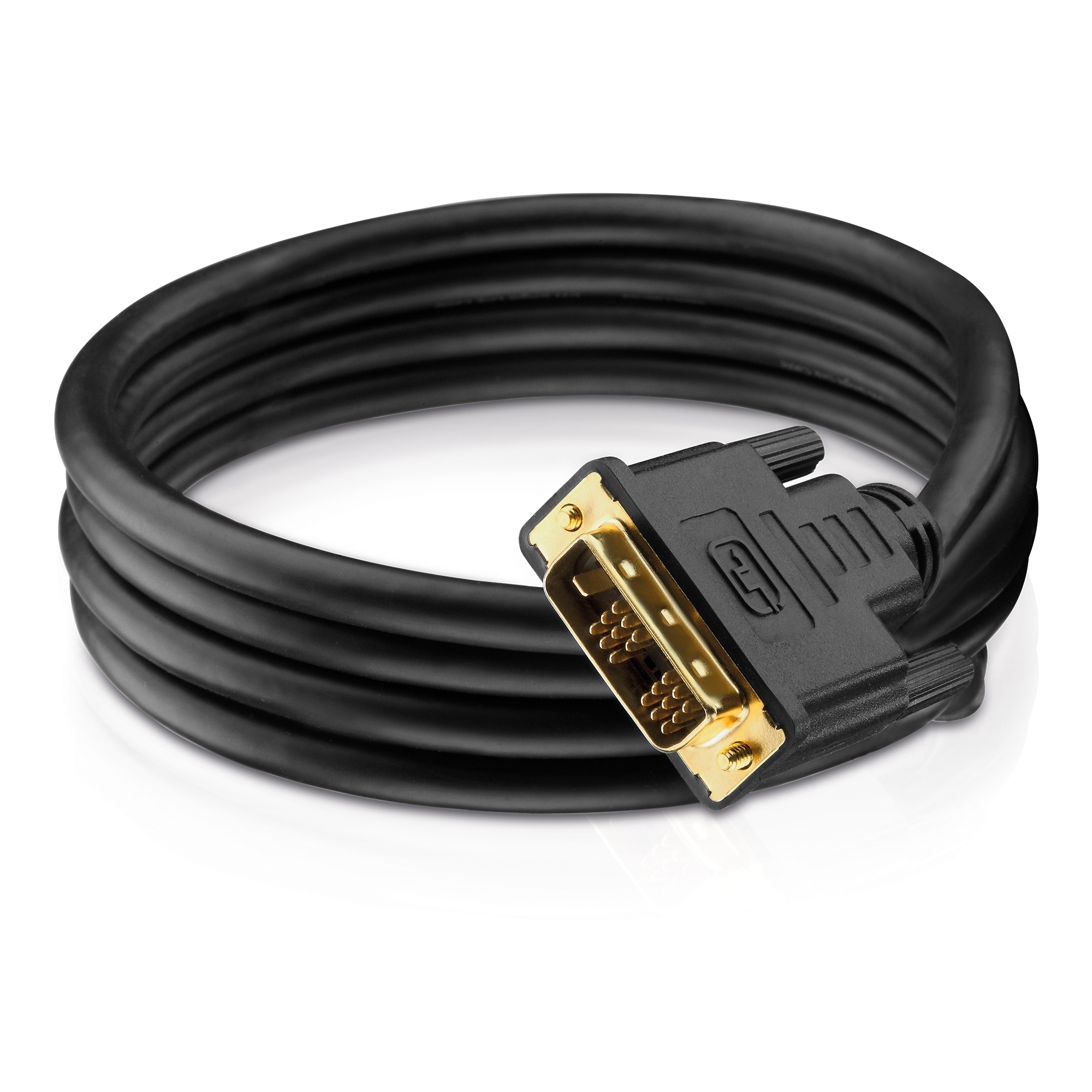

Certified Active 2K DisplayPort / DVI Cable – 1.50m

Preview: DisplayPort zu DVI Kabel - PureInstall - 1,50m Preview: DisplayPort zu DVI Kabel - PureInstall - 1,50m Preview: DisplayPort zu DVI Kabel - PureInstall - 1,50m Preview: DisplayPort zu DVI Kabel - PureInstall - 1,50m
DisplayPort zu DVI Kabel - PureInstall - 1,50m
DisplayPort zu DVI Kabel - PureInstall - 1,50m
DisplayPort zu DVI Kabel - PureInstall - 1,50m
DisplayPort zu DVI Kabel - PureInstall - 1,50m

PureLink
ONEAV B2B-SHOP
Features
  • DisplayPort / DVI for resolutions up to WUXGA / 1920x1200
  • Gold plated precision contacts with locking mechanism
  • DisplayPort male to DVI-D Single Link (18+1) male
  • High purity, tinned OFC copper conductors and triple shielding, AWG28
  • 100% tested for professional AV applications
PureLink
ONEAV B2B-SHOP
Description Features Logistics Specifications Delivery Content Dokumente
Description
Zurück
PI5200 - DisplayPort/Single Link DVI Cable
With this cable, DisplayPort sources can be connected to DVI monitors!
The PI5200 DisplayPort to DVI cable included in the PureInstall Series transmits the signal from a DisplayPort-ready source device to a DVI-ready monitor. It is equipped with a DisplayPort plug on the one side and a DVI Single Link plug on the other side. Thanks to its reliable, high-quality equipment, this cable can be perfectly used especially in professional surroundings. Please note, this cable is not bidirectional, therefore it cannot be used for connecting DVI sources to DisplayPort-ready sinks.
BENCHMARK FOR PROFESSIONAL INSTALLATIONS
High-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts, PureInstall products are a good investment for any field of use.

The Latest Generation
Our PureInstall DisplayPort to DVI cables comply with the DisplayPort standard as well as DVI standard. They support resolutions up to WUXGA (1920x1200) and are downward compatible with all former DP and DVI specifications.

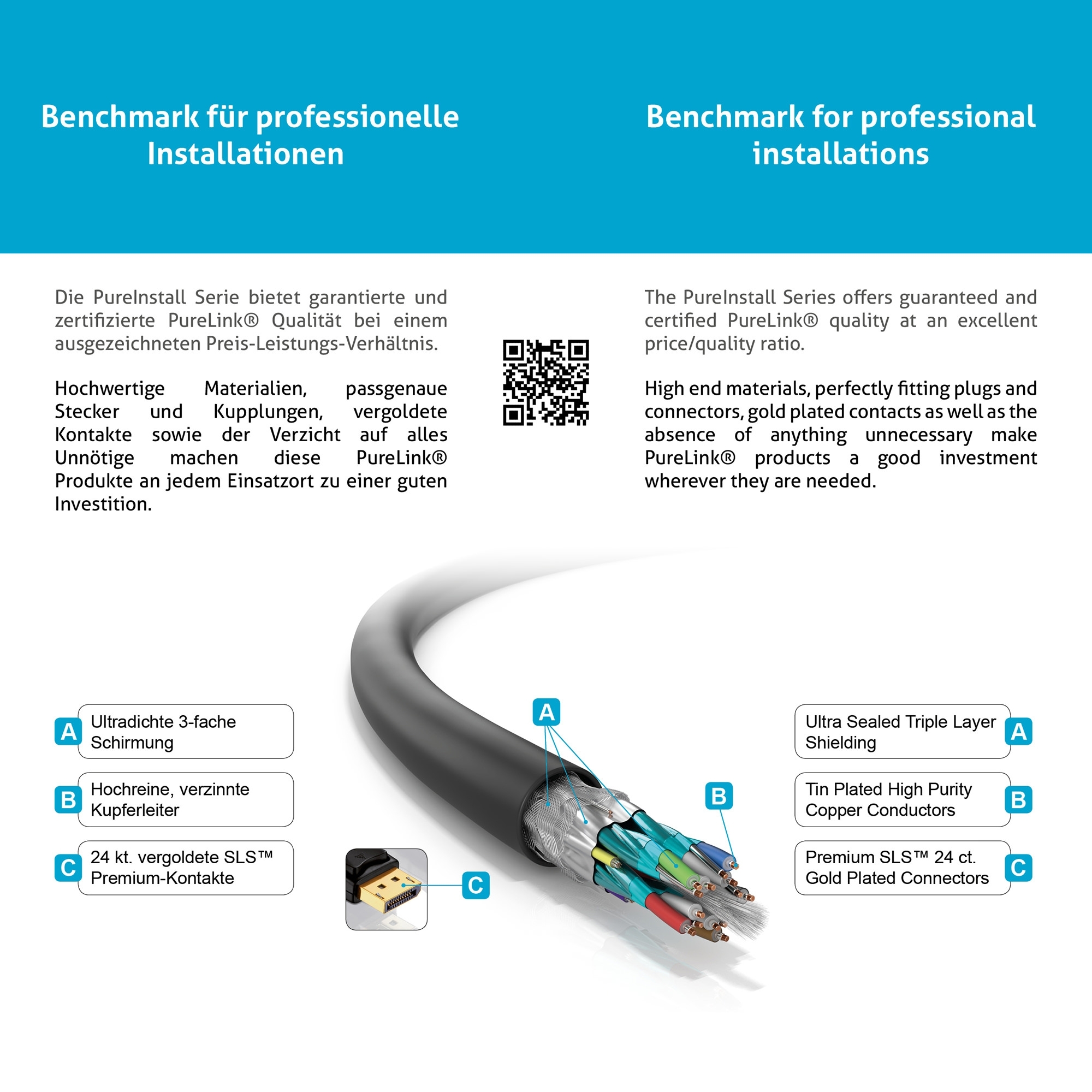

Triple Shielding
Our unique triple-shielding technology consists of a 100% closed aluminum foil, a thick netting and an additonal inner shielding. Due to this, our cable are immune from interferences and crosstalk. The ultra-pure inner conductor made of OFC copper can therefore unfold its full potential.

Custom-fit, Durable and Without Losses
The highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality.

For Professional Purposes and Installations
All PureInstall cables are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the cables undergo over ten quality tests, making them the most reliable choice on the market.
Features
Zurück
Features
DisplayPort / DVI for resolutions up to WUXGA / 1920x1200
Gold plated precision contacts with locking mechanism
DisplayPort male to DVI-D Single Link (18+1) male
High purity, tinned OFC copper conductors and triple shielding, AWG28
100% tested for professional AV applications
Logistics
Zurück
Logistics Information
Product 1. Net Weight in Kg 0,14
Product 1. Gross Weight in Kg 0,15
Product 1. Length in cm 14
Product 1. Width in cm 14
Product 1. Height in cm 2
Packaging 1. Length in cm 30,8
Packaging 1. Width in cm 21,6
Packaging 1. Height in cm 0,1
Master Carton Length in cm 41
Master Carton Width in cm 30
Master Carton Height in cm 30
Product Information
Europeans Customs Tariff Nr. 85444290900
Country of Origin China
Packaging Material Plastic
VPE Information
Master Packaging Unit (pcs) 40
Secondary Packaging Unit (pcs) 10
Specifications
Zurück
Connections
Connector material PVC
Contact material 24 ct. gold plated, long-life design
Shielding Yes
Connector 1 DisplayPort male (20pin)
Connector 2 DVI-D male (18+1pin)
Dimensions Con.1 53,0 x 20,0 x 11,0 (mm)
Dimensions Con.2 47,7 x 37,7 x 15,8 (mm)
Contacts 24 ct. gold plated, long-life design
Electric signal
Maximum pixel clock / bandwidth WUXGA (1920x1200)
HDCP Yes
EDID Yes
Cable
Type Round cable
Lenght 1.5 meters
Inner conductor material Tinned OFC copper
AWG AWG28
Number of shieldings 3
Shielding 1 Aluminium foil (100% density)
Shielding 3 Mesh (100% density)
Outer material Elastic PVC
Outer diameter 7,3mm
Signal transmission
Supported standards DisplayPort, DVI
Transmission modes Digital video signals
Supported Colors RGB/YUV, Deep Color, x.v.Color™
Supported audio standards Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD
Further standards HDCP, CEC, FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)
Weiteres
Safety CE (incl. RoHS), FCC
Colour black
Warranty 3 Years Manufacturer's Warranty
Delivery Content
Zurück
Delivery Content
1x PI5200-015 DisplayPort-DVI cable, black, 1.5m
Dokumente
Zurück
Dokumente "Certified Active 2K DisplayPort / DVI Cable – 1.50m"
