- DP version 1.4 – 32.4Gbps for resolutions up to 8K UltraHD-2 60Hz
- Gold plated precision contacts with locking mechanism
- DisplayPort male to DisplayPort male
- High purity OFC copper conductors and triple shielding, AWG28, Ø 7.5mm
- 100% tested for professional AV applications
PureInstall PI5010 8K DisplayPort 1.4 Cable

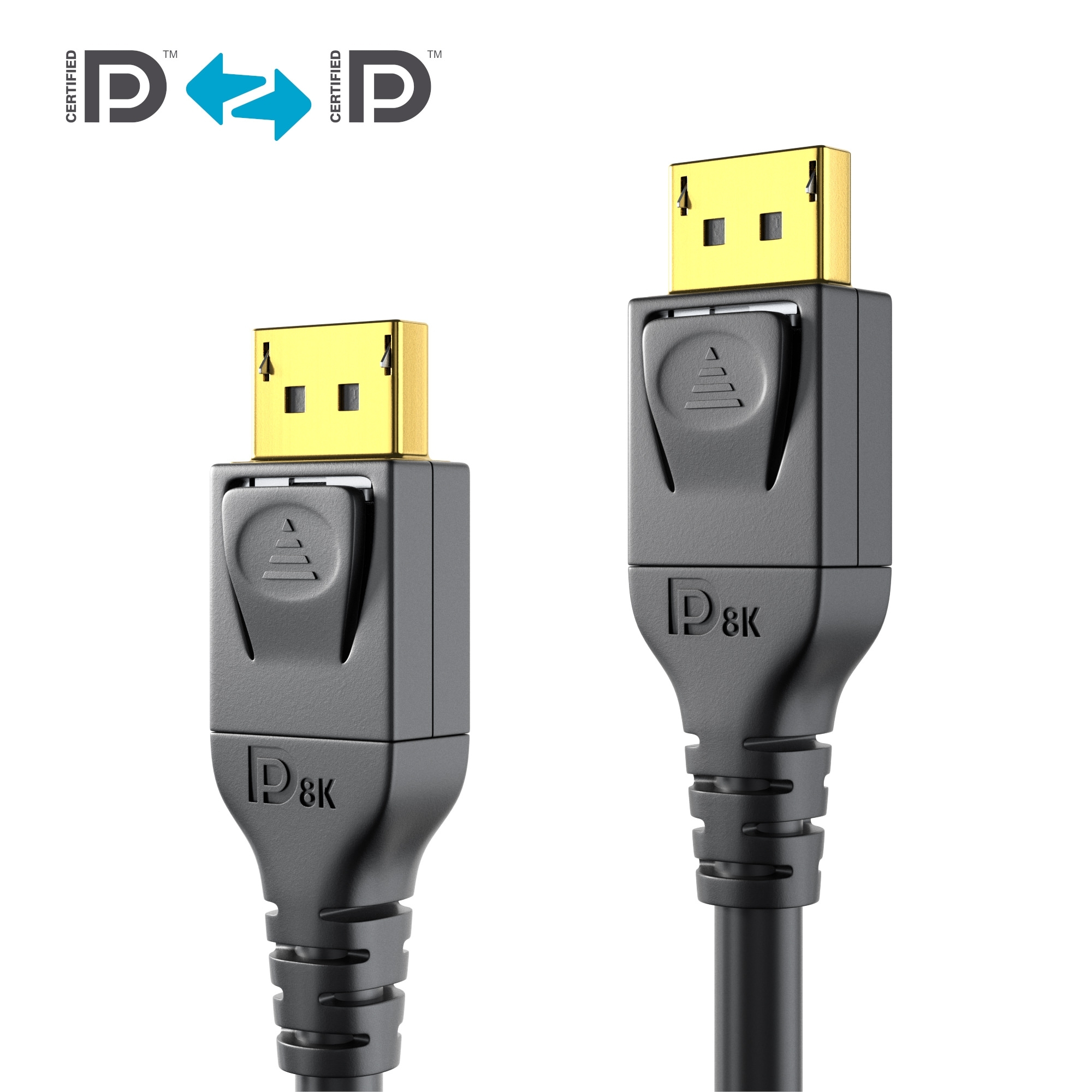

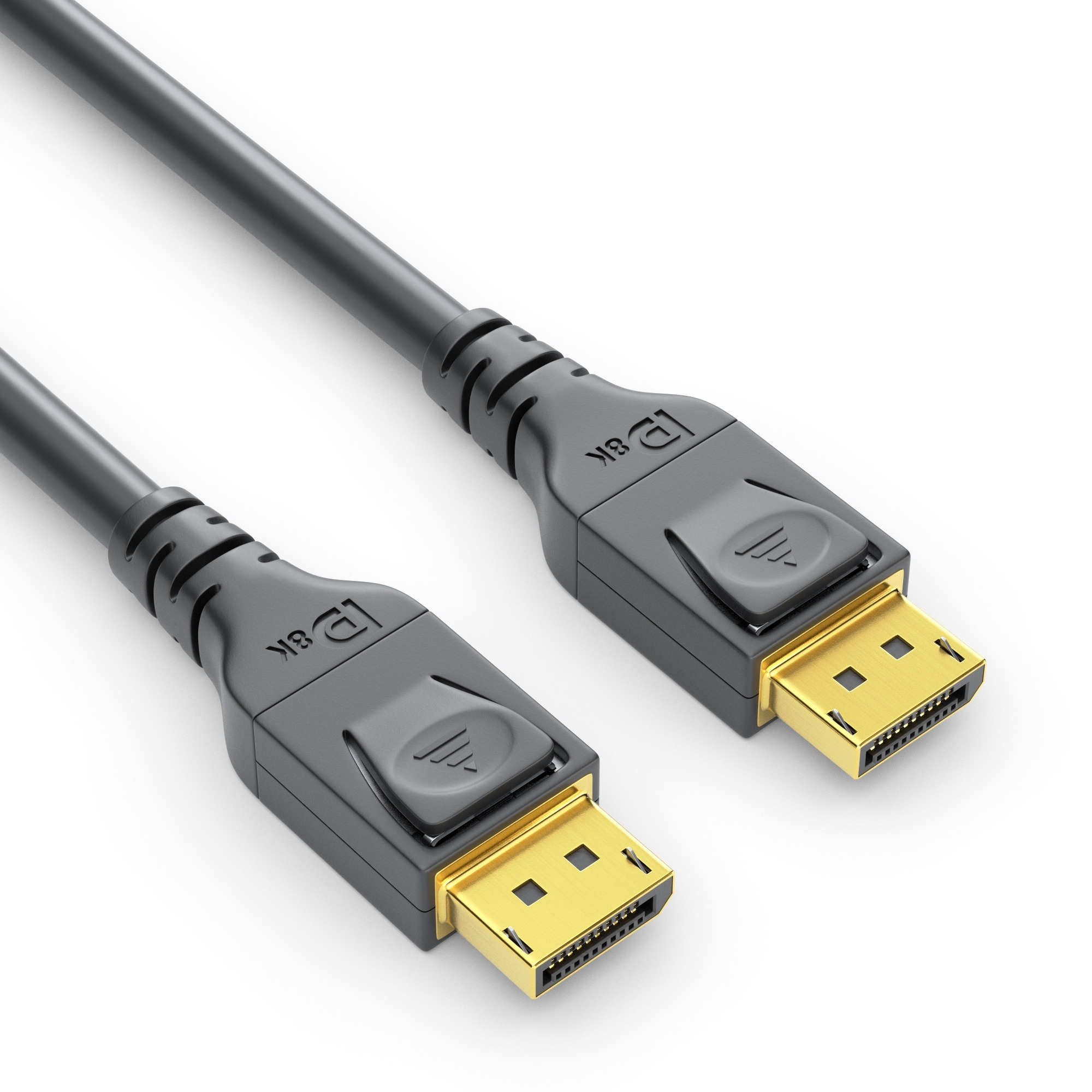

The PI5010-030, included in the PureInstall series from PureLink is a 3.00 meter long DisplayPort cable which is VESA certified according to DisplayPort 1.4 specifications. It is capable of resolutions up to 8K / UltraHD-2 / 4320p at 60Hz with a maximum bandwidth of 32.4 Gbps (HBR3). The cable with an outer diameter of 7.5mm (AWG28) is equipped with DisplayPort connectors in an ABS housing on both ends as well as the typical DisplayPort locking mechanism. It also features gold-plated precision contacts, high-purity solid-core copper conductors as well as triple shielding for perfect transmission quality. Every single PureInstall product undergoes more than ten quality tests before shipping, making it perfect for professional AV applications.
PureInstall - Benchmark for Professional Installations
The 8K DisplayPort 1.4 cables included in the PureInstall series from PureLink are designed for lossless AV transmission with perfect picture and sound quality and are VESA certified up to a cable length of 5.00 meters. The cable connects source and display devices with DisplayPort connector, supporting a max. bandwidth of up to 32.4 Gbps (HBR3) and resolutions up to 8K / UltraHD-2 / 4320p with 60Hz. It is HDCP compatible up to version 2.2 and also equipped with the common DisplayPort locking system as well as support for the MST (Multi Stream Transport) technology, which allows multiple monitors to be operated simultaneously with just one DisplayPort output. The cable also supports the so-called Display Stream Compression (DSC 1.2), which automatically compresses AV signals that exceed the max. possible bandwidth so they can still be transmitted. Forward error correction, full HDR and Rec.2020 color space support, and up to 32 audio channels are also part of DisplayPort version 1.4.

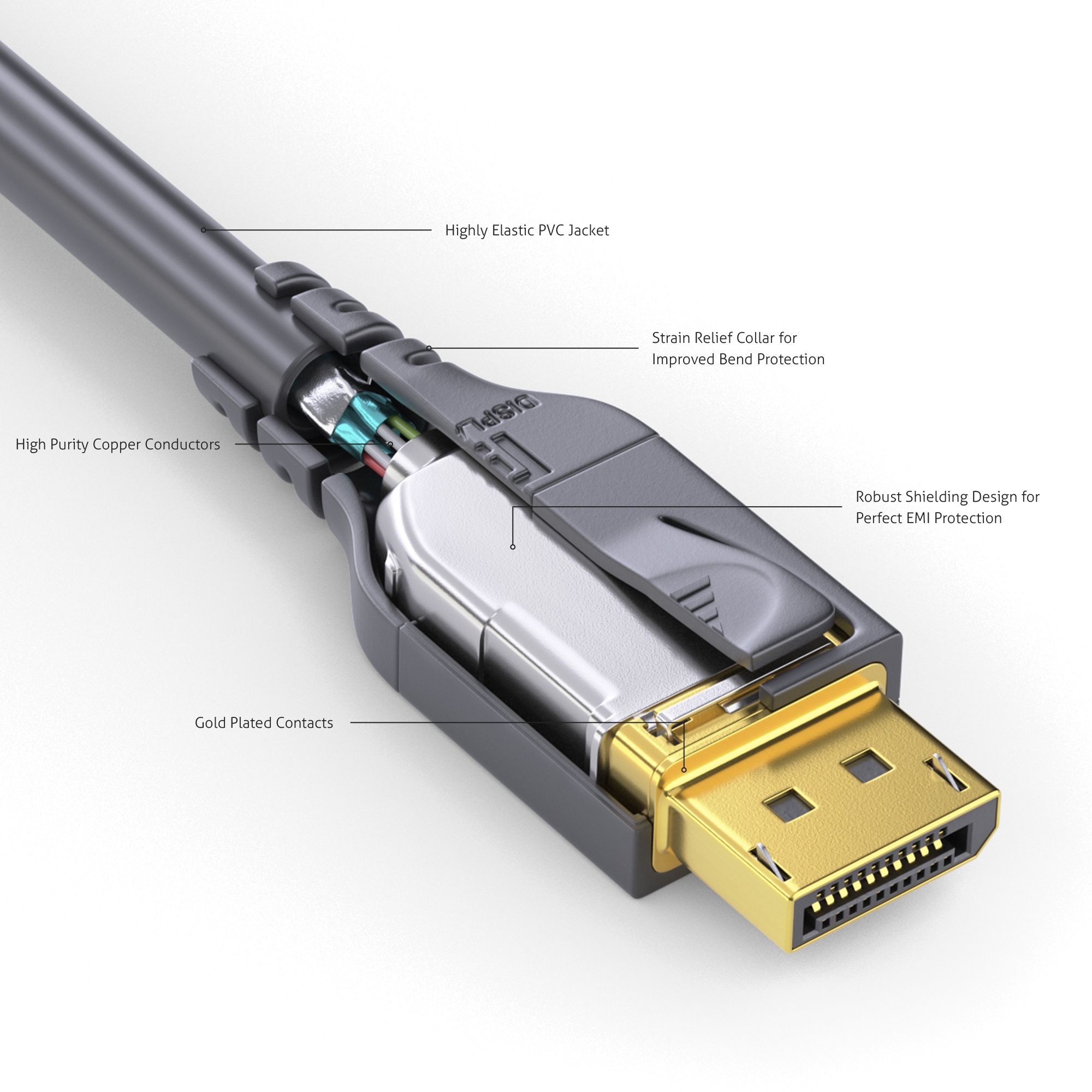

With triple shielding and the use of high-purity solid-core copper conductors, PureInstall DisplayPort cables are very well protected against EMI, including interference from cell phones and radio sources. The precision connectors with ABS plastic housing and gold-plated contacts guarantee a perfect connection with maximum transmission quality as well as durable protection from corrosion. With an outer diameter of only 4.5 or 7.5mm, an extremely small bending radius and an outer jacket made of flexible PVC, it can also be used in confined environments such as behind the TV or in racks. The cable has passed the VW-1 test and is thus flame retardant and suitable for critical areas. It does not have UL CL2 certification.
The black PI5010 DisplayPort cables are available as passive, VESA certified version in lengths between 1.00 and 5.00 meters. The active version with an integrated signal amplifier is available in lengths between 7.50 and 15.00 meters.
Up to a cable length of 2.00 meters, the outer diameter is 4.5mm with AWG34 and a bending radius of 8.5mm. From 3.00 meters cable length it is a diameter of 7.5mm with AWG28 and 14mm bending radius.
The active cables (7.5 to 15.00 meters) are powered via the DisplayPort connector and do not require a separate power supply. They are also directional, so please make sure to check for the correct direction before laying.
PureInstall Series - Benchmark for Professional Installations
Our high-end PureInstall Series guarantees certified PureLink quality at best value. Premium materials, perfectly fitting plugs and connectors, gold plated contacts, as well as the absence of anything unnecessary make PureLink products a good investment wherever they are used. In order to offer the greatest degree of flexibility the PureInstall series includes premium cables, multi-use adapters, as well as signal amplifiers, wall plates and other installation accessories. By choosing the best quality from one source, you can be sure that everything fits together and simply works.
|DP version 1.4 – 32.4Gbps for resolutions up to 8K UltraHD-2 60Hz|
|Gold plated precision contacts with locking mechanism|
|DisplayPort male to DisplayPort male|
|High purity OFC copper conductors and triple shielding, AWG28, Ø 7.5mm|
|100% tested for professional AV applications|
|Product 1. Net Weight in Kg||0,24|
|Product 1. Gross Weight in Kg||0,26|
|Product 1. Length in cm||15|
|Product 1. Width in cm||15|
|Product 1. Height in cm||3,2|
|Packaging 1. Length in cm||34,3|
|Packaging 1. Width in cm||29,6|
|Packaging 1. Height in cm||0,3|
|Master Carton Length in cm||39,5|
|Master Carton Width in cm||36,5|
|Master Carton Height in cm||30|
|Europeans Customs Tariff Nr.||85444290900|
|Country of Origin||China|
|Master Packaging Unit (pcs)||24|
|Connector material||ABS Plastic|
|Contact material||gold plated, long-life design|
|Connector 1||DisplayPort male (20pin)|
|Connector 2||DisplayPort male (20pin)|
|Dimensions Con.1||50,6 x 19,9 x 11 mm|
|Dimensions Con.2||50,6 x 19,9 x 11 mm|
|Contacts||gold plated, long-life design|
|Maximum data rate||32.4 Gbps (HBR3)|
|Type||Passive round cable|
|Inner conductor material||High-purity copper|
|Number of shieldings||3|
|Shielding 1||Aluminium foil (100% density)|
|Shielding 3||Aluminium Braid|
|Outer material||Elastic PVC|
|Operating temperature||0°C - 80°C|
|Humidity||0% - 95%|
|Supported standards||DisplayPort 1.4, HBR3, DSC 1.2, FEC|
|Supported Colors||Up to HDR, HDR10, BT.2020|
|Supported audio standards||Dolby Atmos, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD, etc.|
|Maximum resolution||8K / 4320p @60Hz | 4K / 2160p @120Hz|
|further Certificates||VW-1, VESA|
|Warranty||Optional 15 Years Manufacturer's Warranty|
|1x PI5010-030 8K DisplayPort 1.4 cable, black, 3.0m|
