- DisplayPort version 1.4 – 32.4Gbps for resolutions up to 8K UltraHD-2 60Hz
- Gold plated precision contacts
- DisplayPort male to DisplayPort male, full-metal housing
- Hybrid cable – Fiber for AV; copper for power and data, Ø 4.8mm
- With EMI resistance, low attenuation, no external power supply required
AV SIGNAL EXTENSION VIA FIBER / COPPER HYBRID

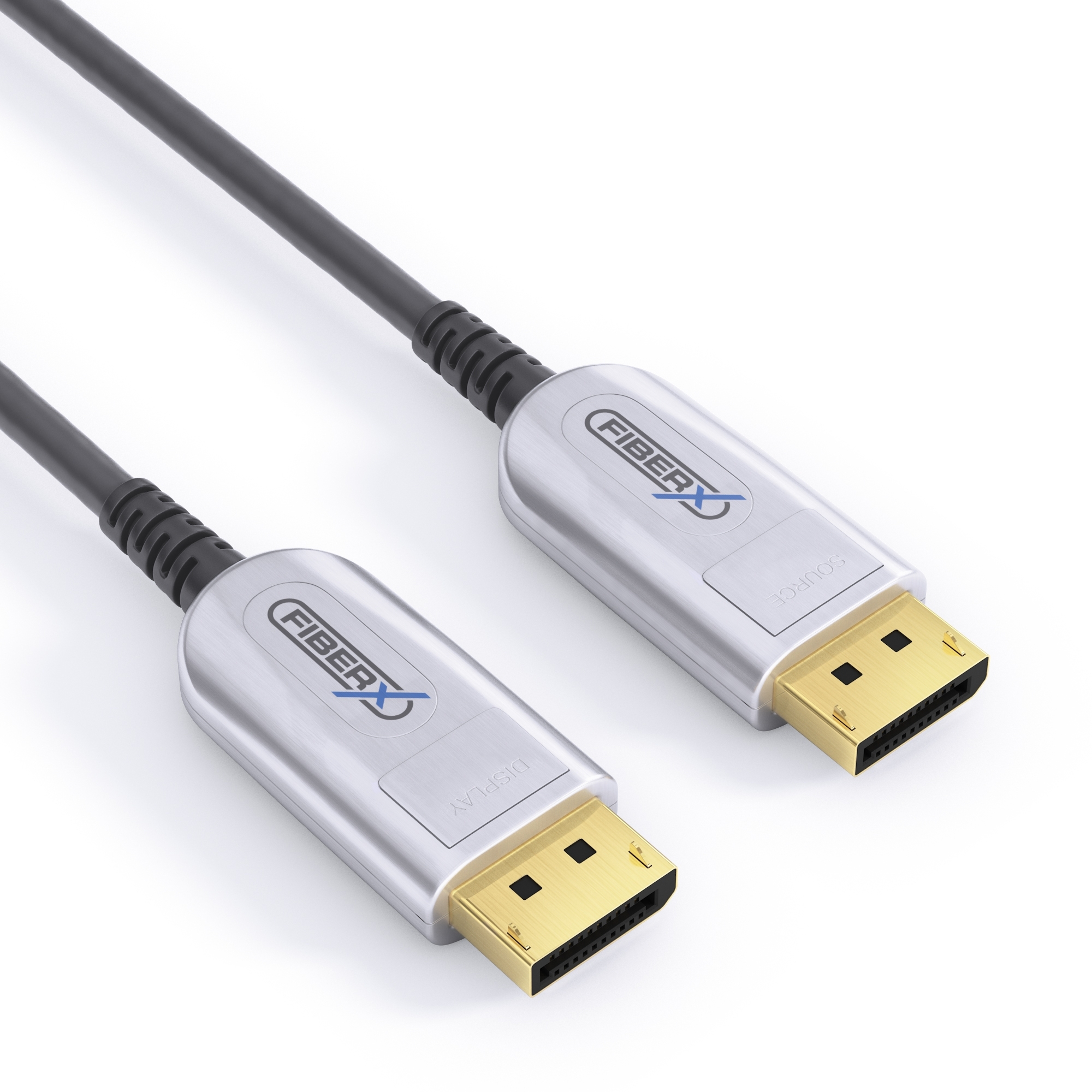

The FiberX Active Optical DisplayPort 1.4 cables FX-I250 transmit uncompressed audio and video signals up to 8K@60Hz resolution over up to 100m distance.
This compact cable is designed for professional applications - it handles full 32.4 Gbps bandwidth (HBR3) with supreme 24/7 reliability while providing simple plug and play usability. It contains both fiber optic and copper cores, is lightweight, flexible and has an ultra-small bend radius of 48mm. With it's advanced optical engine the DisplayPort hybrid cable provides full DisplayPort signal integrity and supports transparent EDID, HDCP up to v2.2 and DPCP, offering zero frame delay, no latency and no compression (DSC v1.2 supported). The cable is also capable of Multi Stream Transport (MST), allowing to daisy-chain multiple diplays with only one cable or via MST-Hub. The end user experience is that of a short high quality copper cable. Connect and perform.
FiberX AOC Cables Combine the Best of Copper and Fiber Technologies
The products included in the FiberX Series are ideal to transmit audio- and video-signals with a maximum bandwidth of 32.4Gbps via AOC hybrid fiber over great distances.
Limitations of pure fiber systems are being prevented.
The "integrated" AOC DisplayPort 1.4 via fiber hybrid cable FX-I250 included in our FiberX series enables lossless and uncompressed signal transmission of up to 32.4 Gbps.
This enables it to send content with a resolution of 8K@60Hz, i. e. UltraHD-II at 60fps.
The maximum range of this hybrid cable, consisting of glass fiber and copper strands, is 100 meters - completely lossless and with full EDID and HDCP (up to v2.2) / DPCP support.
With the supported MST technology (Multi Stream Transport), multiple independent video streams can be distributed via a single DisplayPort output. This allows multiple monitors with MST support to be cascaded, i.e. connected "in series". Alternatively, a so-called MST hub (also available here) can be used.
Thanks to the latest chipset, these "integrated" versions even transmit a digital audio signal.
The cable also features a minimal bending radius of only 48mm.
The Latest Technology
The integrated AOC Hybrid-DisplayPort via fiber optic cable FX-I250 offers some advantages over pure fiber optic solutions and is designed for DisplayPort (HDMI / DVI also available). Resolutions up to 8K / UltraHD-II / 4320p with 60Hz as well as 4K / UltraHD / 2160p with 144Hz (8bit) or 120Hz (10bit) over distances up to 100 meters are supported. The fiber / copper hybrid design supports EDID and HDCP (up to v2.2) and DPCP as well as digital audio signals.

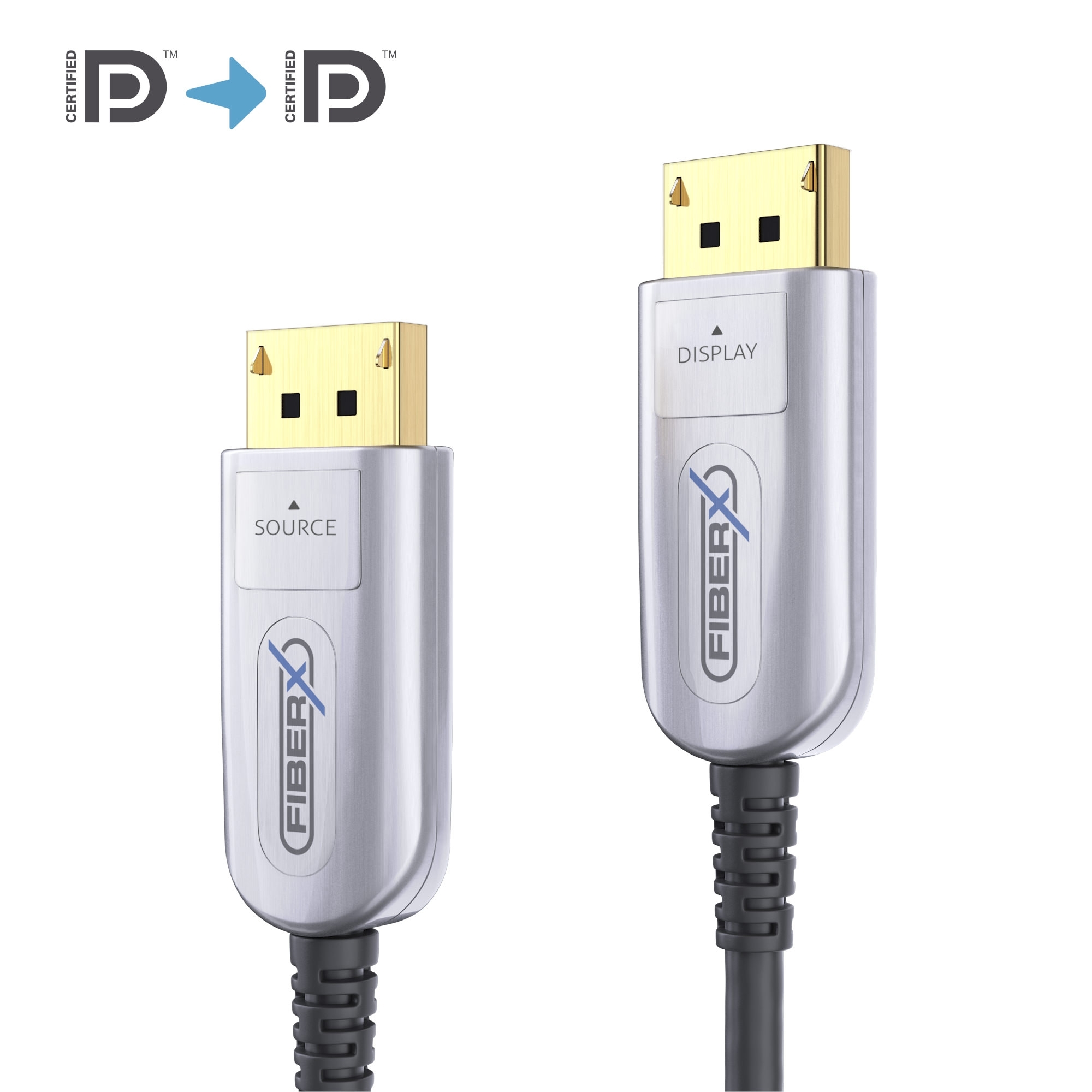

The cable must not be connected to the wrong port - the ends are clearly marked. The successful connection to an HDMI adapter can not be guaranteed.
The FX-I250 series is available in the lengths of 10m up to remarkable 100m, each with pre-assembled DisplayPort connectors on both sides.
For Professional Purposes and Installations
All FiberX products are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the products undergo over ten quality tests, making them the most reliable choice on the market.
Features and Performance:
• Active optical fiber transmission at full 32.4 Gbps bandwidth
• 8.1 Gbps / lane (HBR3) link rate
• Resolutions up to 8K@60Hz 4:4:4 or 4K@144Hz (8bit) or 4K@120Hz (10bit)
• DisplayPort 1.4 compliant
• HDCP up to v2.2 compliant
• DSC (Display Stream Compression) Version 1.2
• Supports transparent EDID
• Supports Multi Stream Transport (MST) technology
• Zero frame delay, no latency, no compression

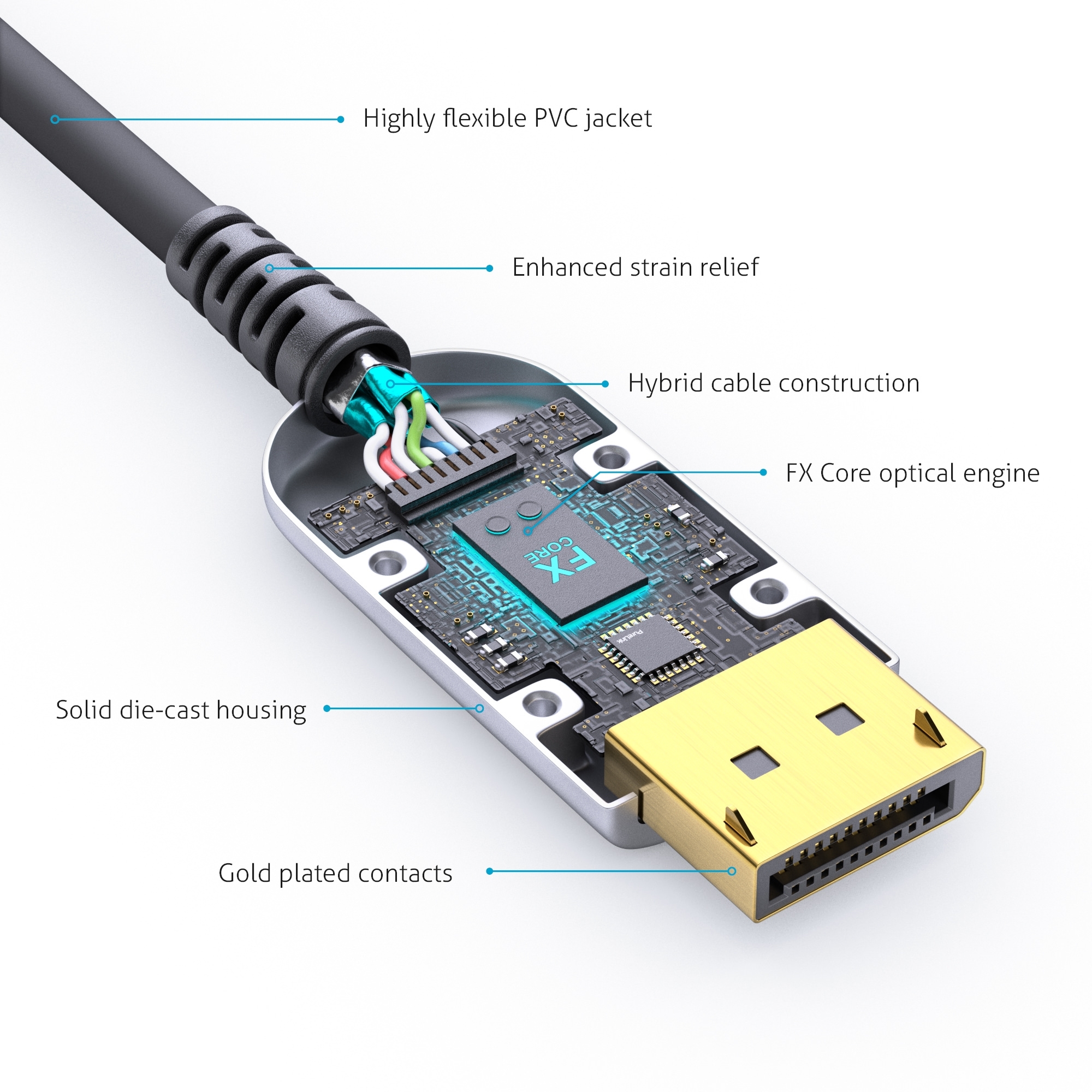

• Hybrid construction, super lightweight, small bend radius, compact design
• Kevlar reinforced sheath
• Supports all DisplayPort audio formats
• Easy Plug & Play installation
• Metal housing for optimized EMI protection
|DisplayPort version 1.4 – 32.4Gbps for resolutions up to 8K UltraHD-2 60Hz|
|Gold plated precision contacts|
|DisplayPort male to DisplayPort male, full-metal housing|
|Hybrid cable – Fiber for AV; copper for power and data, Ø 4.8mm|
|With EMI resistance, low attenuation, no external power supply required|
|Product 1. Net Weight in Kg||2,65|
|Product 1. Gross Weight in Kg||3,50|
|Packaging 1. Weight in Kg||1|
|Product 1. Length in cm||30|
|Product 1. Width in cm||30|
|Product 1. Height in cm||5,8|
|Packaging 1. Length in cm||30|
|Packaging 1. Width in cm||30|
|Packaging 1. Height in cm||5,8|
|Packaging 2. Width in cm||32.4|
|Master Carton Length in cm||39|
|Master Carton Width in cm||35|
|Master Carton Height in cm||34,3|
|Europeans Customs Tariff Nr.||85176990000|
|Country of Origin||China|
|Master Packaging Unit (pcs)||5|
|Secondary Packaging Unit (pcs)||1|
|Connector 1||DisplayPort male (20pin)|
|Connector 2||DisplayPort male (20pin)|
|Standards||Integrated Hybrid Fiber AOC|
|Digital video formats||8K / UltraHD-2 / 4320p @60Hz|
|Digital audio formats||Digital audio support, formats device dependant|
|Type||AOC round cable|
|Outer material||Highly elastic PVC|
|Power consumption||via DisplayPort|
|Enclosure||Metal / Plastics|
|Supported standards||DisplayPort 1.4 (HBR3), DSC 1.2, MST|
|Maximum resolution||8K@60Hz / 4K@144Hz (8bit)|
|Further standards||Fiber / Copper Hybrid AOC|
|EMI / EMC||100% free of EMI|
|Warranty||3 Years Manufacturer's Warranty|
|1x FX-I250 DisplayPort 1.4 AOC Fiber Hybrid-Cable 100.00m|
|1x User Manual DE/EN|
