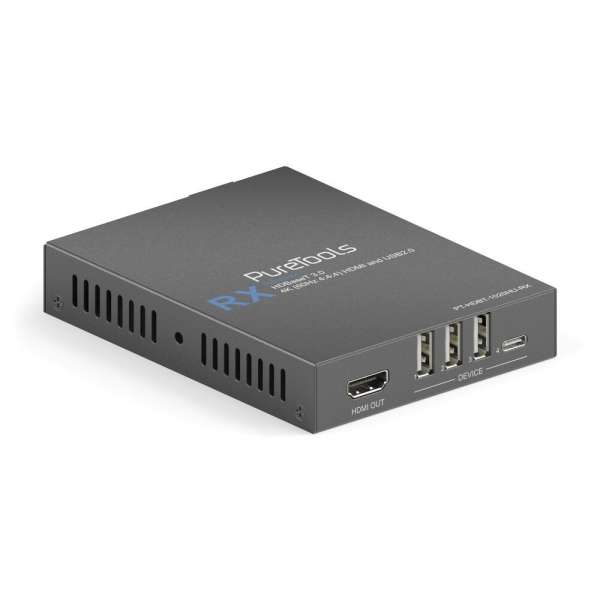

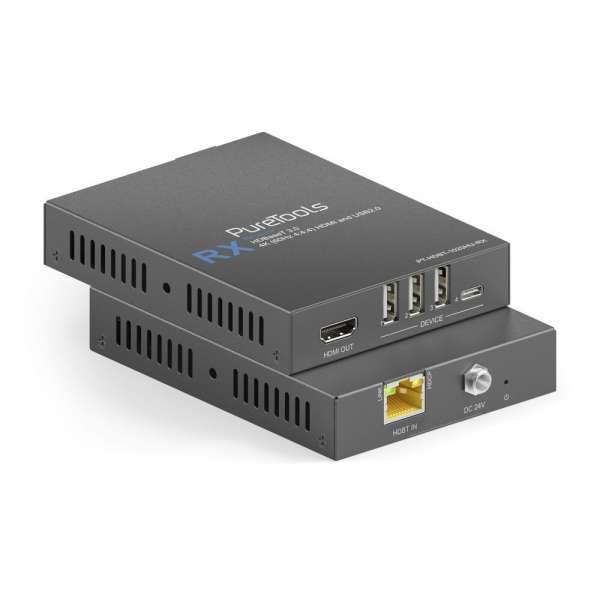

HDBaseT 3.0 HDMI and USB 2.0 Receiver

PT-HDBT-1020HU-RX – HDBaseT 3.0 HDMI and USB Receiver: Uncompressed 4K Video, USB, and Control Extension for Professional AV Systems
The PT-HDBT-1020HU-RX is engineered as a professional-grade HDBaseT 3.0 receiver, facilitating uncompressed 4K (60Hz 4:4:4) HDMI video, USB 2.0 peripheral connectivity, and comprehensive control signal extension over a single structured Cat.6a cable. Its passive, bi-directional Power over Cable (PoC) capability streamlines power distribution between transmitter and receiver, minimising the need for multiple power supplies in rack, podium, or signage deployments. The robust metal housing with integrated mounting options supports secure installation in meeting rooms, control rooms, and hybrid workspace environments. Advanced features such as audio de-embedding, ARC/eARC, and multi-format pass-through ensure full compatibility with modern AV system requirements.

• 18Gbps 4K Video and HDCP 2.2: Supports full HDMI 2.0b bandwidth up to 18Gbps, enabling transmission of 4K (60Hz 4:4:4) video with HDR10 and Dolby Vision. HDCP 2.2 compliance ensures secure content delivery in professional AV installations requiring protected media workflows.

• HDBaseT 3.0 Extension up to 100m: Utilises HDBaseT 3.0 technology to transmit uncompressed 4K or 1080p video, USB, Ethernet, and control signals up to 100 metres over a single S/FTP Cat.6a cable. Maintains full 4K 60Hz 4:4:4 quality up to 80 metres, with 4:2:0 support for 100-metre runs.

• Comprehensive USB Peripheral Support: Equipped with three USB-A and one USB-C USB 2.0 ports, the receiver accommodates a wide range of peripherals such as cameras, microphones, or touch displays. This enables flexible device integration in conferencing, collaboration, or control scenarios.

• Bi-directional 24–48V Power over Cable: The PoC feature allows either the transmitter or receiver to supply power for the entire system, reducing cabling complexity and supporting streamlined deployment in ceiling, rack, or wall-mounted installations.

• Professional Metal Housing with Mounting: Constructed with a durable metal chassis and integrated mounting points, the receiver ensures secure, long-term installation in demanding AV environments. This design supports effective thermal management and mechanical stability in fixed infrastructure.

Integrated Signal, Power, and Control Extension for AV Environments
By combining uncompressed 4K video, USB 2.0, and multi-format control extension over a single cable, the PT-HDBT-1020HU-RX supports streamlined AV deployments with minimal infrastructure overhead. Its PoC functionality, advanced audio features, and robust mechanical design provide a reliable solution for meeting rooms, control rooms, and hybrid workspaces requiring secure, high-performance signal distribution and device integration.
