- HDMI version 2.1 - 48Gbps for resolutions up to 8K UltraHD-2 60Hz
- Gold plated precision contacts with PureLink ULS™ (Ultra-Lock-System™)
- HDMI-A male to HDMI-A male
- Halogen-free hybrid cable - Fiber for AV; copper for power and data, Ø 4.5mm
- AOC technology without external power supply, EMI resistance, low attenuation

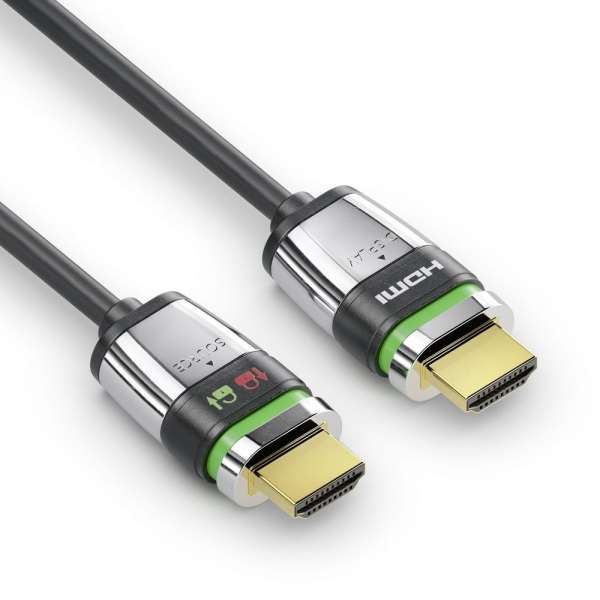

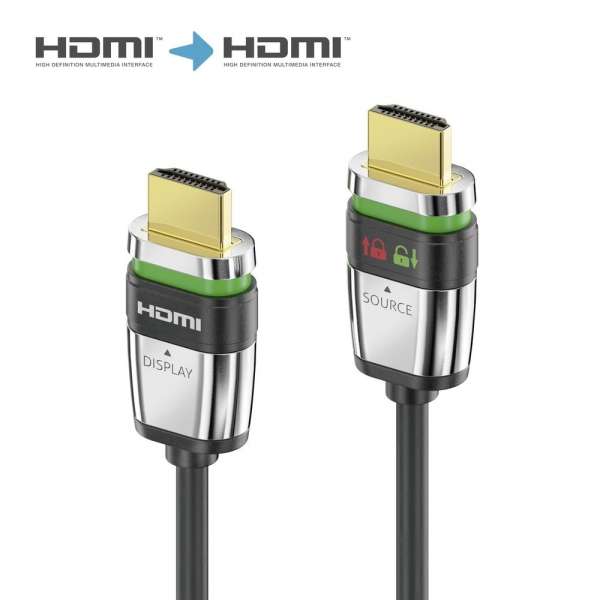

FiberX FX-I375 8K HDMI 2.1 AOC Fiber Optic Cable
The FX-I375-030 is a 30.00 meter long 8K HDMI 2.1 AOC hybrid cable with 4.5mm outer diameter. It is compliant to the HDMI Ultra High Speed specification, making it suitable for AV transmissions up to 48Gbps. The cable features male HDMI-A connectors on both sides with gold-plated precision contacts and the patented ULS™ locking system. With its hybrid construction of optical fibers for AV transmission and copper inner conductors for power & data transmission, it offers complete protection against electromagnetic interference as well as low attenuation for perfect transmission quality. The cable is free from halogens and requires no external power supply, it is powered directly via HDMI.
FiberX - When Distance, Quality and Bandwidth are Essential
The FX-I375 HDMI Ultra High Speed cables, included in the FiberX series from PureLink are designed for an optimal transmission of HDMI 2.1 signals over long distances. The hybrid construction of fiber and copper conductors allows significantly longer cable lengths than conventional HDMI copper cables. The AV stream is transmitted via optical fibers, completely free of electromagnetic interference and is supplemented by copper wires for the transmission of power (HDMI 5V) and data (e.g. HPD, CEC). Due to this structure, the cables are available for very long lengths between 5.00 and 30.00 meters and can be used in complex environments.
The cables are compliant with the HDMI standard "HDMI Ultra High Speed" for HDMI 2.1 compatible devices and are capable of transmitting AV streams up to 48Gbps. They are capable of resolutions up to 8K / UltraHD-2 with up to 60Hz including the digital audio signal and with support for HDCP up to version 2.3. The transmission is without delay (zero frame delay) and compression, supports ARC and eARC as well as transparent EDID.
The cable also features the patented Ultra-Lock-System™. This ULS™ technology has been developed specifically for the uninterrupted and secure use of HDMI connections. The innovative design locks the connector securely into the socket and is unique on the market. The safety lock can be used universally with any HDMI socket and can be easily switched between the locked and unlocked positions by using a 360° locking switch.
The small cable diameter of only 4.5mm allows an extremely tight bend radius up to 45mm (static) or 90mm (dynamic), especially for installation in tight environments, such as the back of a rack.
The HDMI-A ULS™ connectors on both sides feature gold-plated precision contacts and a connector body made of plastic. Thus, the plugs themselves are resistant to corrosion, guaranteeing long-term functional data transmission.
The HDMI AOC cables use the "Plug&Play" principle and can thus be used like a conventional HDMI cable. They are unidirectional, i.e. directionally bound and should not be connected the wrong way round; the ends are distinctly marked. Adaptation to other types of signals cannot be guaranteed. The cables are also free of halogens. They therefore produce significantly less smoke in the event of fire than cables, that have been manufactured with halogens.
The AV industry continues to push for greater bandwidth, faster speeds and a lossless signal quality over ever increasing distances. Traditional copper cabling is becoming less reliable or inadequate for these long ranges. The FiberX product line has long been setting standards as a leading brand for optical fiber solutions. By combining different optical transmission standards with cutting-edge technology, FiberX ensures that existing AV infrastructures continue to meet the highest standards.
In addition, the high fiber quality of FiberX products features tighter bending radiuses, enabling faster and easier installations than comparable products.
|HDMI version 2.1 - 48Gbps for resolutions up to 8K UltraHD-2 60Hz|
|Gold plated precision contacts with PureLink ULS™ (Ultra-Lock-System™)|
|HDMI-A male to HDMI-A male|
|Halogen-free hybrid cable - Fiber for AV; copper for power and data, Ø 4.5mm|
|AOC technology without external power supply, EMI resistance, low attenuation|
|Product 1. Net Weight in Kg||0,86|
|Product 1. Gross Weight in Kg||0,86|
|Product 1. Length in cm||16|
|Product 1. Width in cm||16|
|Product 1. Height in cm||6|
|Packaging 1. Length in cm||24|
|Packaging 1. Width in cm||22,5|
|Packaging 1. Height in cm||7,5|
|Master Carton Length in cm||47|
|Master Carton Width in cm||39|
|Master Carton Height in cm||27|
|Europeans Customs Tariff Nr.||85176990000|
|Country of Origin||China|
|Master Packaging Unit (pcs)||10|
|Contact material||Gold-plated, long-life design|
|Connector 1||HDMI-A male (19pin)|
|Connector 2||HDMI-A male (19pin)|
|Dimensions Con.1||36,5 x 20,7 x 11,2 mm|
|Dimensions Con.2||36,5 x 20,7 x 11,2 mm|
|Contacts||Gold-plated, long-life design|
|Standards||Integrated Hybrid Fiber AOC|
|Digital video formats||HDMI 8K / UltraHD-2 / 4320p @60Hz|
|Type||Round, HDMI AOC|
|Inner conductor material||4x OM3 Fibers, 7x Copper Conductors|
|Outer material||LSZH, CPR compliant|
|Power consumption||Power over HDMI|
|Supported standards||HDMI 2.1, HDMI Ultra High Speed|
|Transmission modes||Digital Audio- and video signals|
|Supported Colors||HDMI 2.0 compatible|
|Supported audio standards||HDMI 2.0 compatible|
|Maximum resolution||4320p / UltraHD-2 / 8K @60Hz|
|Further standards||Fiber / Copper Hybrid AOC|
|Safety||CE, FCC, ROHS, CPR|
|EMI / EMC||100% free of EMI|
|Warranty||3 Years Manufacturer's Warranty|
|1x FX-I375 8K HDMI AOC Fiber Hybrid Cable, 30.0m|
|1x User Manual|
