Features
  • HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz
  • Gold plated precision contacts with PureLink SLS™ (Secure-Lock-System™)
  • HDMI-A male to HDMI-A male
  • High purity, tinned OFC copper conductors and triple shielding, AWG28
  • 100% tested for professional AV applications

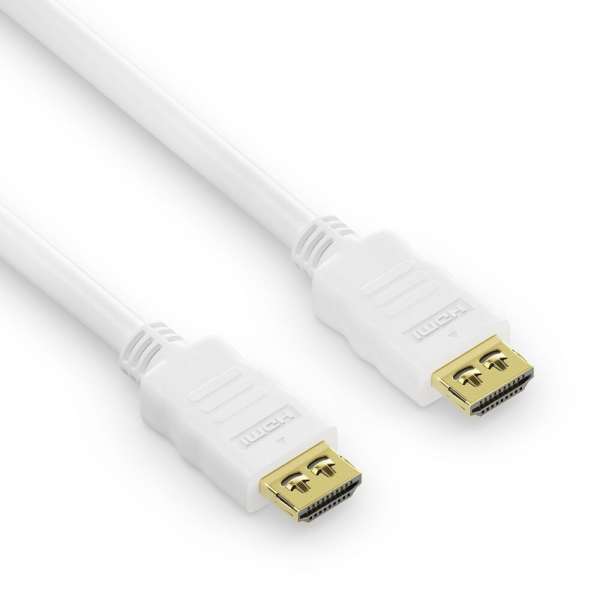

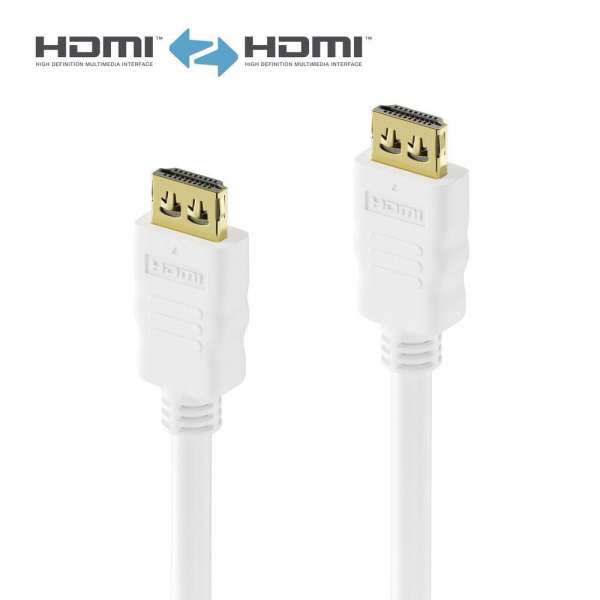

PI1002 - High Speed HDMI Cable with Ethernet Channel
The all-rounder for High Speed HDMI with higher tensile strength and full 4K@60Hz support for up to 5m cable length!
The PI1002 HighSpeed HDMI cable offers everything needed for a good HDMI connection: Alongside triple shielding, high-quality plugs and an ultra-pure copper wire, Ethernet channel (HEAC) and Audio Return Channel (ARC) are integrated. The Secure-Lock-System™ of our PureInstall Series has been developed especially for a more secure and more tractive connection of HDMI components. The innovative and highly-engineered plug manufacturing is one of its kind on the current market and significantly hightens the traction of the cable. Thanks to its high reliability, the PI1002 is perfectly suited for professional applications and installations.
Benchmark for Professional Installations
High-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts, PureInstall products are a good investment for any field of use.

The Latest Generation
Our PureInstall HDMI cables comply with latest HDMI requirements - HDMI High Speed with Ethernet. They support resolutions up to 4K / UltraHD (4096x2160) and are backwards compatible to all older HDMI specifications. This cable supports the maximum HDMI bandwidth of 18 Gbps / approx. 600MHz for resolutions up to 4K@60Hz with 8bit colors and 4:4:4 subsampling. The reproduction of HDR (High-Dynamic-Range) content is also possible without any problems!

Secure-Lock-System™
Conventional HDMI plugs easily lose grip in the socket. The solution: PureLink® High Speed HDMI adapters with Secure-Lock-System™. The SLS™ technology was developed by PureLink especially for a more secure use of HDMI connections. This plug design is one of a kind on the current market and enhances the stability of the connection even with high traction rates, securing the connection permanently.

Triple Shielding
Our unique triple-shielding technology consists of a 100% closed aluminum foil, a thick netting and an additonal inner shielding. Due to this, our cable are immune from interferences and crosstalk. The ultra-pure inner conductor made of OFC copper can therefore unfold its full potential.

Custom-fit, Durable and Without Losses
The highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality.

Single-Source Technology
Our HDMI cables have been tested for professional use and extreme bending. The front plug, the middle shell and the back strain relief cuff are made from one single piece of metal and nearly indestructible.

HDMI Ethernet Channel and Audio Return Channel
The Ethernet channel (HEAC) within the HDMI cable is a new feature of the HDMI 1.4 standard. With this channel within the cable, you can integrate IP-based entertainment devices such as your TV, set-top-boxes or gaming consoles into your home network, including internet or IP-based services without additional cables. The audio return channel (ARC) eliminates (like the Ethernet channel does), an additional cable within the home cinema system. The ARC sends the digital audio signal - via the HDMI cable - back to your AV-receiver. Therefore, there is no more need for a separate connection with a Toslink cable.

For Professional Purposes and Installations
All PureInstall cables are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the cables undergo over ten quality tests, making them the most reliable choice on the market.
Features
HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz
Gold plated precision contacts with PureLink SLS™ (Secure-Lock-System™)
HDMI-A male to HDMI-A male
High purity, tinned OFC copper conductors and triple shielding, AWG28
100% tested for professional AV applications
Logistics Information
Product 1. Net Weight in Kg 0,10
Product 1. Gross Weight in Kg 0,09
Product 1. Length in cm 15
Product 1. Width in cm 11
Product 1. Height in cm 2
Packaging 1. Length in cm 24,3
Packaging 1. Width in cm 16,6
Packaging 1. Height in cm 0,1
Master Carton Length in cm 41
Master Carton Width in cm 30
Master Carton Height in cm 30
Product Information
Europeans Customs Tariff Nr. 85444290900
Country of Origin China
Packaging Material Plastic
VPE Information
Master Packaging Unit (pcs) 80
Secondary Packaging Unit (pcs) 10
Connections
Connector material PVC
Contact material 24 ct. gold plated, long-life design
Shielding Yes
Connector 1 HDMI Type A male (19pin)
Connector 2 HDMI Type A male (19pin)
Dimensions Con.1 43,5 x 19,5 x 10,5 (mm)
Dimensions Con.2 43,5 x 19,5 x 10,5 (mm)
Contacts 24 ct. gold plated, long-life design
Electric signal
Maximum pixel clock / bandwidth 4K / UltraHD / 2160p @60Hz, 8bit, 4:4:4 bzw. HDR
HDCP Yes
CEC Yes
EDID Yes
Cable
Type Round cable
Lenght 1.0 meters
Inner conductor material Tinned OFC copper
AWG AWG28
Number of shieldings 3
Shielding 1 Aluminium foil (100% density)
Shielding 3 Mesh (100% density)
Outer material Elastic PVC
Outer diameter 7.3mm
Signal transmission
Supported standards High Speed HDMI with Ethernet
Transmission modes Digital audio and video signals
Supported Colors 16/24 bit RGB/YUV, Deep Color, x.v.Color™
Supported audio standards ARC, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD
Further standards HDMI Ethernet Channel (HEC), 3D, HDCP, CEC, 4K2K (2160i/p), FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)
Weiteres
Safety CE (incl. RoHS), FCC
Colour white
Warranty Optional 15 Years Manufacturer's Warranty
Delivery Content
1x PI1002-010 HDMI cable, white, 1.0m
