- Connection Cables
- HDMI
- HDMI Cables
- FX-I360-100
- HDMI 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz
- Gold plated precision contacts with armoured, water-proof connector housing

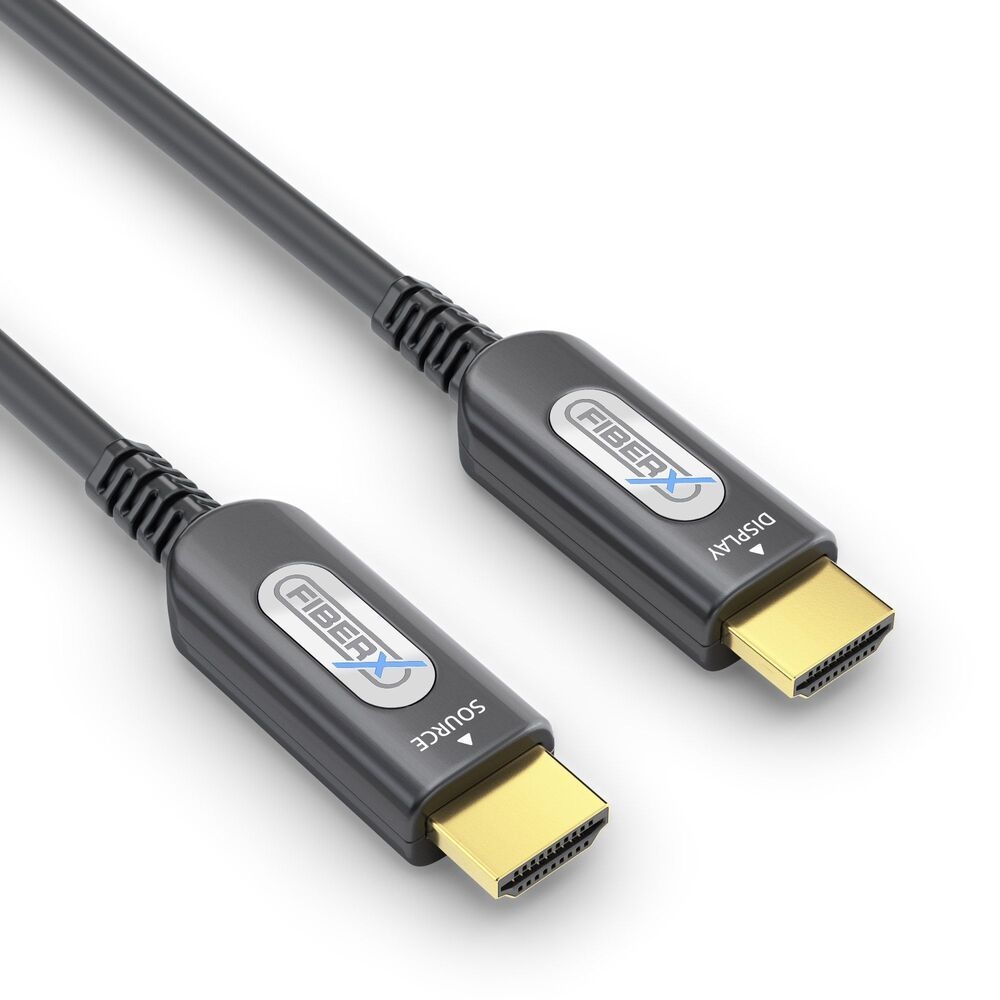

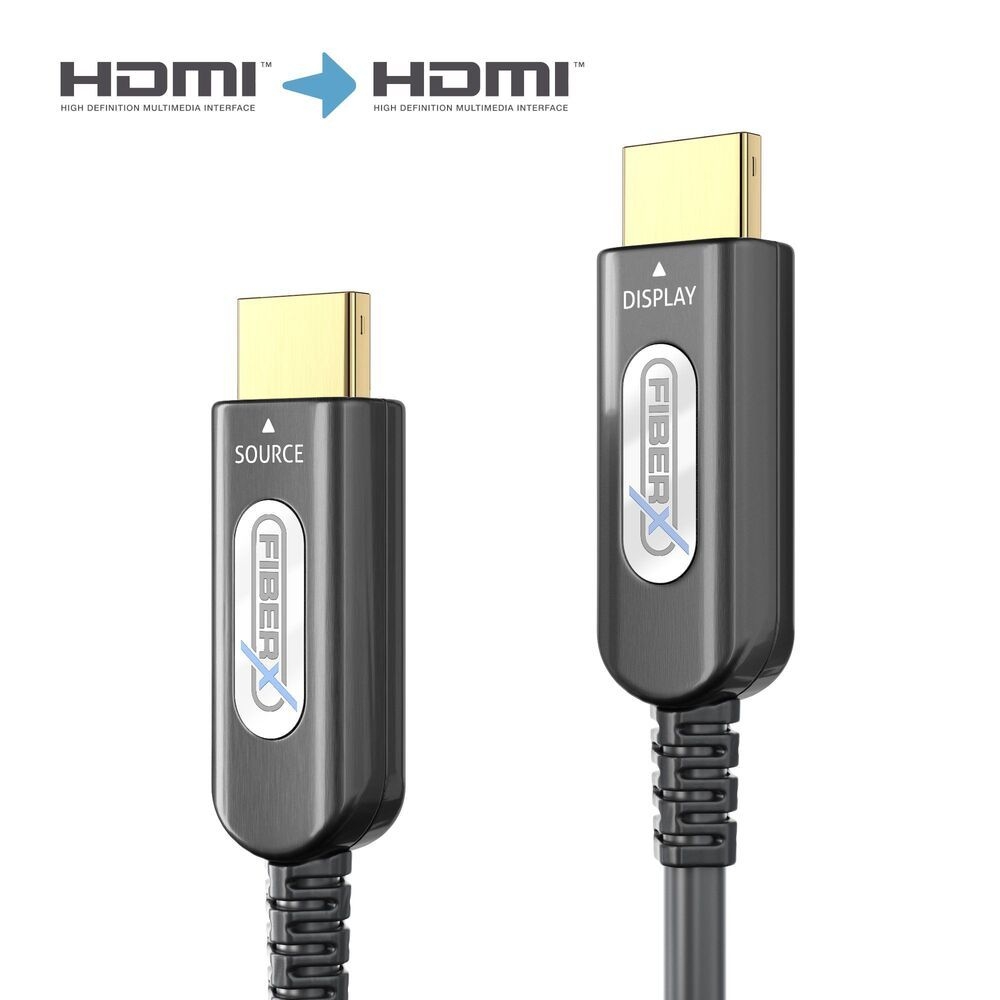

- HDMI-A male to HDMI-A male, full-metal amoured housing
- Hybrid cable – Fiber for AV; copper for power and data, Ø 4.5mm
- With EMI resistance, low attenuation, no external power supply required
4K UltraHD HDMI 2.0 Hybrid Cable: Reliable Connectivity and High-Quality Performance
The HDMI 2.0 Hybrid Cable is designed to provide a seamless and reliable connection for your AV setup. With its innovative features, this cable ensures top-notch performance for your viewing experience.
-
High-Speed Data Transfer: Supports HDMI 2.0 18Gbps for resolutions up to 4K UltraHD 60Hz, delivering crystal-clear visuals with no compromise on quality.
-

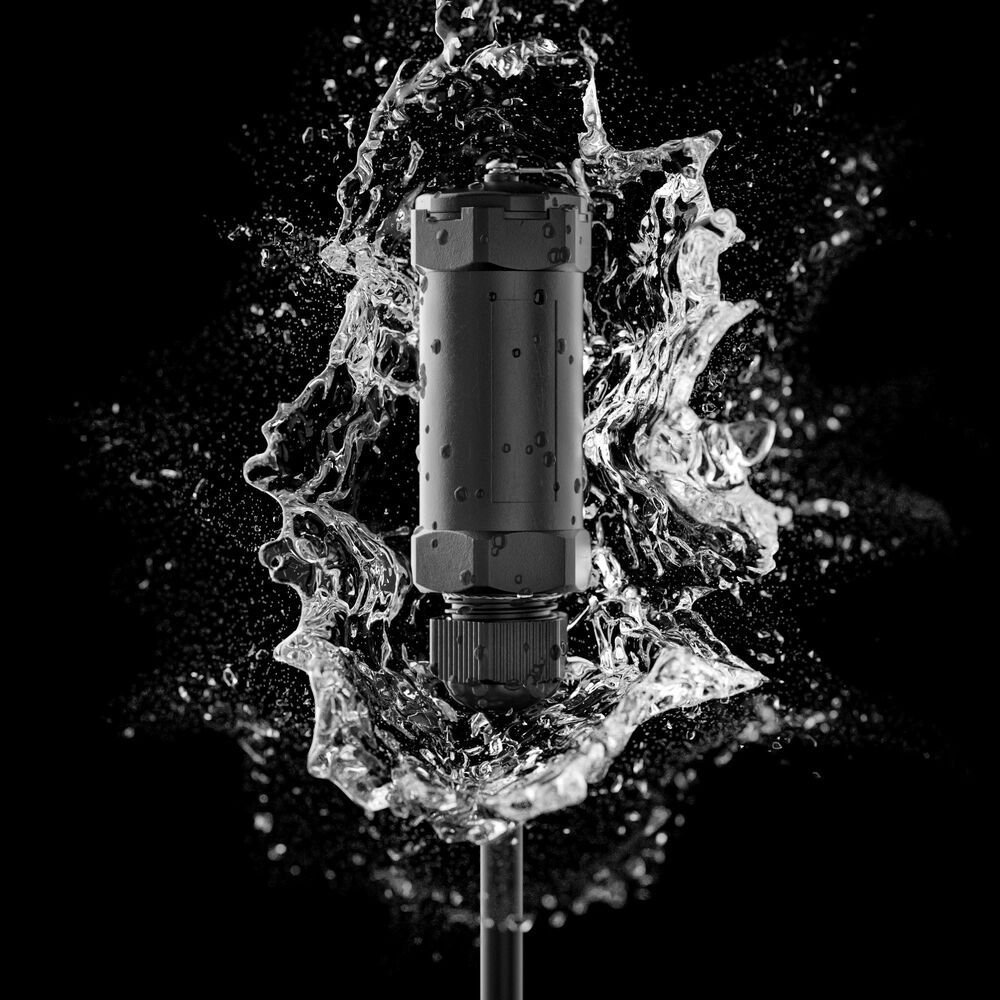

Precision Engineering: Gold plated precision contacts with armoured, water-proof connector housing ensure a secure and stable connection, even in challenging environments.
-
Durable Construction: HDMI-A male to HDMI-A male, full-metal armoured housing provides robust protection for the cable, ensuring long-lasting performance.
-

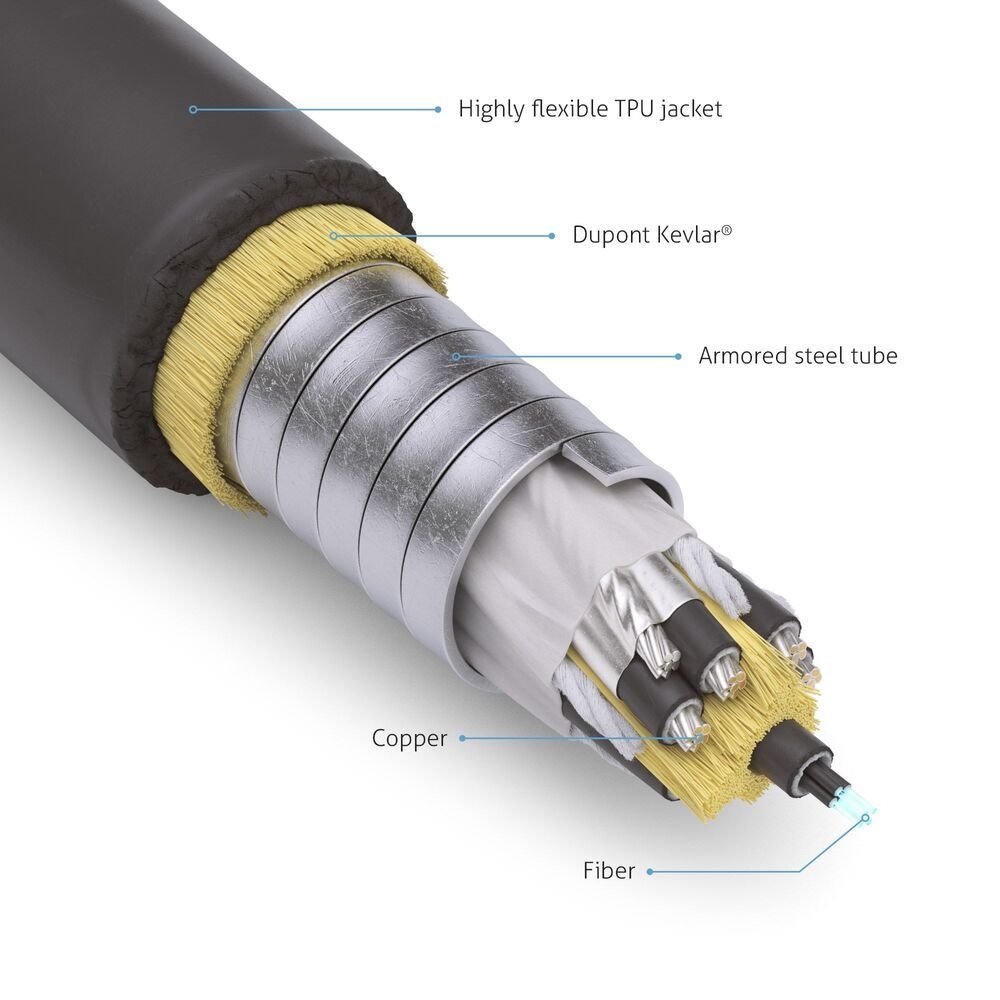

Advanced Technology: Hybrid cable design combines fiber for AV transmission and copper for power and data, Ø 4.5mm, offering EMI resistance, low attenuation, and eliminating the need for an external power supply.
-
Reliable Performance: With EMI resistance and low attenuation, this cable ensures a stable and reliable connection for your AV setup, making it ideal for professional installations.
-

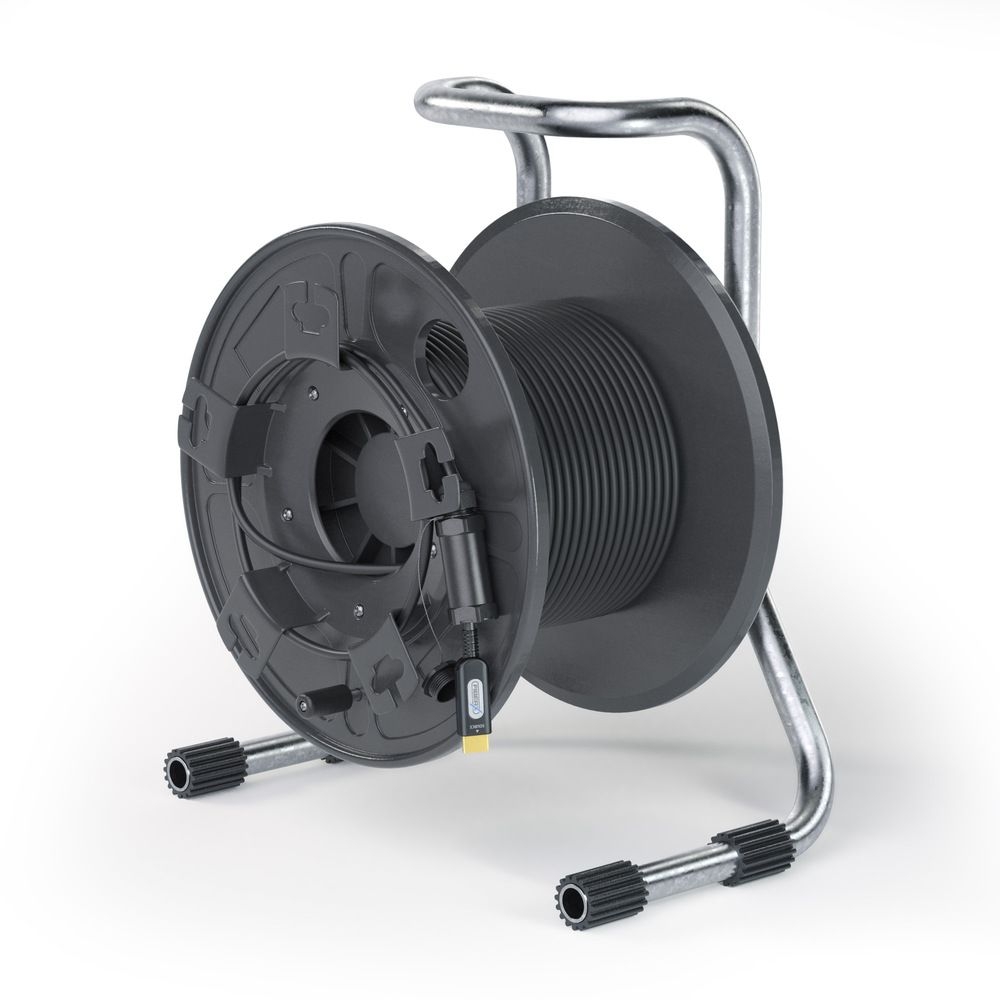

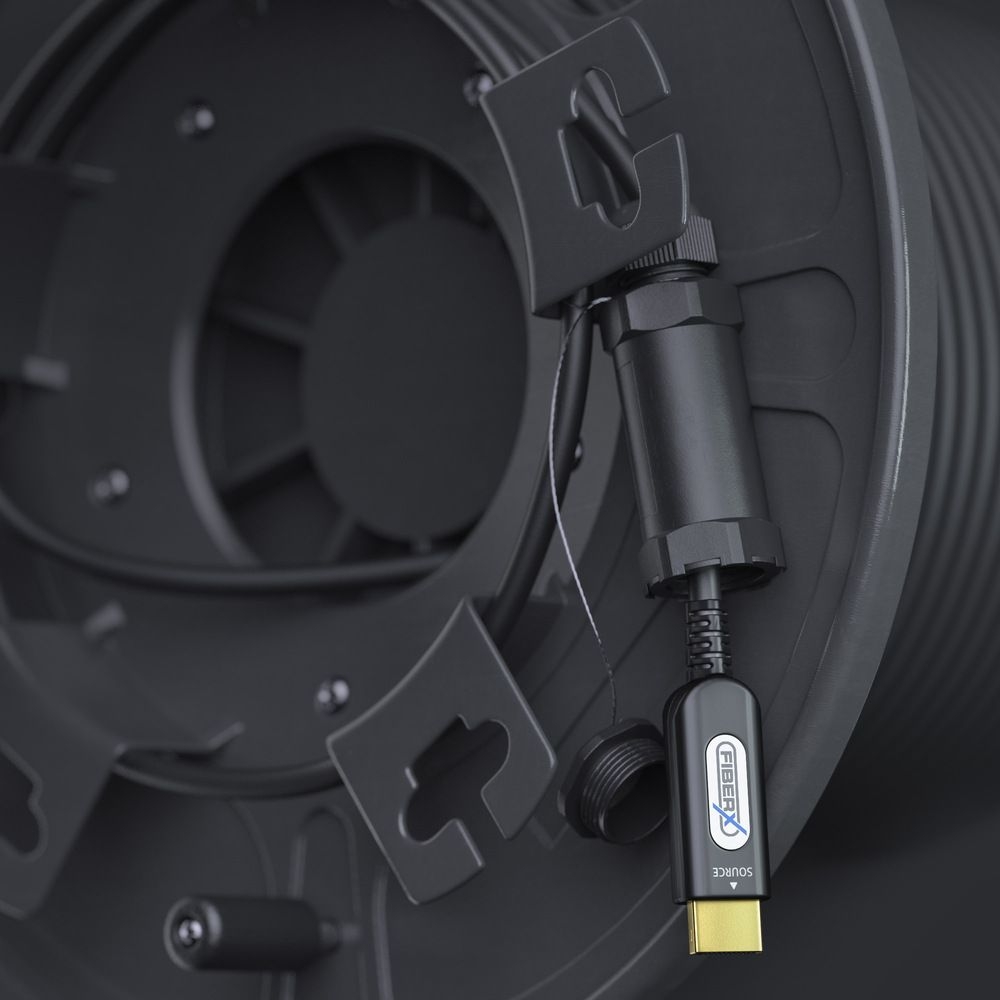

Optional Mobile Cable Reel: Enjoy easy handling of long cables when using the optional mobile cable reel.
The HDMI 2.0 Hybrid Cable is the perfect solution for those looking for reliable connectivity and high-quality performance. Upgrade your video signal transmission with this innovative cable that delivers top-notch results every time.
Features |
HDMI 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz |
Gold plated precision contacts with armoured, water-proof connector housing |
HDMI-A male to HDMI-A male, full-metal amoured housing |
Hybrid cable – Fiber for AV; copper for power and data, Ø 4.5mm |
With EMI resistance, low attenuation, no external power supply required |
Logistics Information | |
Product 1. Net Weight in Kg | 6,50 |
Product 1. Gross Weight in Kg | 9,80 |
Packaging 1. Weight in Kg | 2 |
Product 1. Length in cm | 29,5 |
Product 1. Width in cm | 29,5 |
Product 1. Height in cm | 14 |
Packaging 1. Length in cm | 43 |
Packaging 1. Width in cm | 30 |
Packaging 1. Height in cm | 37 |
Master Carton Length in cm | 43 |
Master Carton Width in cm | 30 |
Master Carton Height in cm | 37 |
Product Information | |
Europeans Customs Tariff Nr. | 85176990000 |
Country of Origin | China |
Packaging Material | Plastic/Paper |
VPE Information | |
Master Packaging Unit (pcs) | 1 |
Connections | |
Connector material | Metal / Plastics |
Contact material | gold-plated, long-life design |
Shielding | Yes |
Connector 1 | HDMI-A male (19pin) |
Connector 2 | HDMI-A male (19pin) |
Contacts | gold-plated, long-life design |
Electric signal | |
Standards | Armored Hybrid Fiber AOC |
Digital video formats | HDMI 4K / UltraHD / 2160p @60Hz |
Digital audio formats | Digital audio support, formats device dependant |
HDCP | Yes |
CEC | Yes |
EDID | Yes |
Cable | |
Type | Round, HDMI AOC |
Lenght | 100.0m |
Outer material | TPU |
Outer diameter | 5.8mm |
Mechanical | |
Power supply | max. 280mW |
Power consumption | Power over HDMI |
Operating temperature | 0°C - 50°C |
Storage temperature | -40°C - 70°C |
Humidity | 10% - 80% |
Signal transmission | |
Supported standards | HDMI 2.0, Fiber |
Transmission modes | Digital Audio- and video signals |
Supported Colors | 16/24 bit RGB/YUV, Deep Color, x.v.Color™ |
Supported audio standards | Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, SD Audio, etc. |
Maximum resolution | 2160p / UltraHD / 4K @60Hz max. 100m |
Further standards | Fiber / Copper Hybrid AOC |
Weiteres | |
Safety | CE, FCC |
EMI / EMC | 100% free of EMI |
Colour | black |
Warranty | 3 Years Manufacturer's Warranty |
Delivery Content |
1x FX-I360 HDMI AOC Fiber Hybrid-Cable |
1x User Manual DE/EN |
1x Warning Card |
