- HDMI 1.4 – 10.2Gbps for resolutions up to 4K UltraHD 30Hz
- Gold-plated precision contacts with PureLink SLS (Secure-Lock-System)
- HDMI-A male to HDMI-A male with PureLink APO™
- High purity copper conductors and triple shielding, AWG24
- Status LED, microUSB port for 5V supply

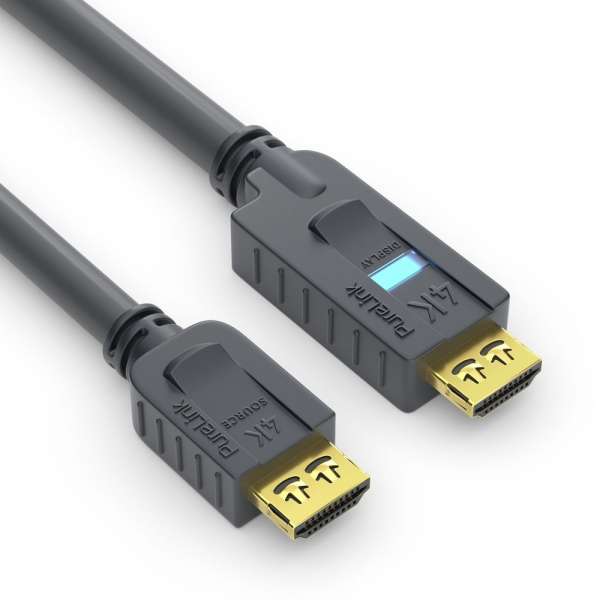

PI2010 – Active HDMI 18Gbps Cable: 4K60 Signal Transmission for Professional AV Installations
The PI2010 active HDMI cable utilises a high-speed signal path optimised for 18Gbps data rates, supporting uncompressed 4K UltraHD video at 60Hz across a 5.00m length. Its construction features high-purity copper conductors, triple-layer shielding, and gold-plated precision contacts, ensuring low-loss transmission and robust mechanical durability. The integrated PureLink SLS (Secure-Lock-System) minimises accidental disconnections in fixed AV deployments, while the display-side APO (Active Performance Optimizer) circuit maintains signal integrity over extended distances. This cable is suitable for control rooms, meeting spaces, and signage environments requiring reliable 4K connectivity.
4K60 HDMI 2.0 Signal Support: The cable supports HDMI 2.0 bandwidths up to 18Gbps, accommodating video resolutions up to 4K UltraHD at 60Hz. Backwards compatibility with HDMI 1.4 at 10.2Gbps ensures interoperability with legacy sources and displays in mixed AV systems.
Secure-Lock-System Contacts: Gold-plated precision contacts incorporate the PureLink SLS mechanism, which provides a mechanically secure connection. This reduces the risk of accidental unplugging in rack-mounted, podium, or wall-plate installations.
Active Performance Optimisation: The display-side connector integrates PureLink APO, an active circuit that compensates for signal attenuation across the 5.00m cable length. This ensures stable, high-quality transmission for demanding AV applications.
High-Purity Conductors and Shielding: Utilising oxygen-free copper (OFC) conductors and triple shielding, the cable minimises electromagnetic interference and maintains signal clarity. The design supports conductor sizes from AWG24 to AWG32, balancing flexibility with mechanical resilience.
Status LED and MicroUSB Power: An integrated status LED provides visual confirmation of signal integrity, while a microUSB port enables optional 5V external power supply. This feature supports stable operation in installations with marginal source power or extended cable runs.
Reliable 4K Connectivity for Demanding AV Environments
The PI2010 serves as a technically robust solution for transmitting 4K60 HDMI signals across longer distances in professional AV installations. By combining active signal optimisation, secure locking contacts, and comprehensive shielding, this cable supports stable operation in meeting rooms, control centres, and digital signage setups where signal reliability and mechanical security are essential.
The Latest Generation
The PI2010 PureInstall HDMI cables comply with the HDMI standard - HDMI High Speed with Ethernet. They support bandwidths up to 18Gbps for resolutions up to 4K@60Hz with 8bit colors as well as 4:4:4 subsampling up to a length of 20m (10.2Gbps for max. 4K@30Hz at 25m & 30m) and are backwards compatible to all older HDMI specifications. The display of HDR content (High-Dynamic-Range) is also possible without problems.
"Special Features" of PI2010
The active cables feature an exclusive EQ chipset using a sophisticated signal processing, directly powered via HDMI. If the power input of the HDMI source device is not sufficient, which is often the case with laptops or graphics cards, a 5V power source can be easily connected via microUSB. The cable uses a subtle blue LED to indicate an active connection.
PI2010 cables have achieved a bit error rate of 0 (zero) in tests with a Quantum Data 780D, last but not least due to the excellent interference-reducing EMI shielding.
In terms of installation quality, the PI2010 cable does not need to hide behind other PureInstall cables: The cable is UL CL2 approved and therefore perfectly suited for in-wall installation. It also features strong, interlocking metal shells inside that can withstand high tensile forces.
Note: The test specifications for active HDMI cables have not been published yet. When they are, these cables will be among the first to receive certification.
Secure-Lock-System™
Conventional HDMI plugs easily lose grip in the socket. The solution: PureLink® High Speed HDMI adapters with Secure-Lock-System™. The SLS™ technology was developed by PureLink especially for a more secure use of HDMI connections. This plug design is one of a kind on the current market and enhances the stability of the connection even with high traction rates, securing the connection permanently.
Triple Shielding
Our unique triple-shielding technology consists of a 100% closed aluminum foil, a thick netting and an additonal inner shielding. Due to this, our cable are immune from interferences and crosstalk. The ultra-pure inner conductor made of OFC copper can therefore unfold its full potential.
Custom-fit, Durable and Without Losses
The highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality.
For Professional Purposes and Installations
All PureInstall cables are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the cables undergo over ten quality tests, making them the most reliable choice on the market.
| Features |
| HDMI 1.4 – 10.2Gbps for resolutions up to 4K UltraHD 30Hz |
| Gold-plated precision contacts with PureLink SLS (Secure-Lock-System) |
| HDMI-A male to HDMI-A male with PureLink APO™ |
| High purity copper conductors and triple shielding, AWG24 |
| Status LED, microUSB port for 5V supply |
| Logistics Information | |
| Product 1. Net Weight in Kg | 2,30 |
| Product 1. Gross Weight in Kg | 2,53 |
| Product 1. Length in cm | 23 |
| Product 1. Width in cm | 23 |
| Product 1. Height in cm | 9 |
| Packaging 1. Length in cm | 30 |
| Packaging 1. Width in cm | 30 |
| Packaging 1. Height in cm | 12 |
| Master Carton Length in cm | 41 |
| Master Carton Width in cm | 30 |
| Master Carton Height in cm | 30 |
| Product Information | |
| Europeans Customs Tariff Nr. | 85444290900 |
| Country of Origin | China |
| Packaging Material | Plastic |
| VPE Information | |
| Master Packaging Unit (pcs) | 3 |
| Connections | |
| Power connector(s) | 1x microUSB female |
| Contact material | 24kt. gold-plated |
| Shielding | Yes |
| Connector 1 | HDMI-A male |
| Connector 2 | HDMI-A male |
| Dimensions Con.1 | 27mm Stecker-Länge |
| Dimensions Con.2 | 40mm Stecker-Länge |
| Contacts | 24kt. gold-plated |
| Electric signal | |
| Maximum data rate | 10.2 Gbps |
| Digital video formats | HDMI High Speed w. Ethernet compatible |
| Digital audio formats | HDMI High Speed w. Ethernet compatible |
| HDCP | Yes |
| CEC | Yes |
| EDID | Yes |
| Cable | |
| Type | Active Round Cable |
| Lenght | 25m |
| Inner conductor material | Copper |
| AWG | AWG24 |
| Number of shieldings | 3 |
| Shielding 1 | Foil |
| Shielding 3 | Braid |
| Outer material | PVC |
| Mechanical | |
| Power consumption | 5V HDMI or microUSB |
| Signal transmission | |
| Supported standards | HDMI High Speed w. Ethernet |
| Transmission modes | Digital audio and video signals |
| Supported Colors | HDMI High Speed w. Ethernet compatible |
| Supported audio standards | HDMI High Speed w. Ethernet compatible |
| Maximum resolution | 4K@60, 4:2:0 |
| Weiteres | |
| Safety | CE, FCC |
| MTBF | 30.000 hours |
| further Certificates | UL CL2 |
| Colour | black |
| Warranty | 3 Years Manufacturer's Warranty |
| Delivery Content |
| 1x PI2010-250 Active 4K HDMI cable with microUSB, 10.2Gbps, 25.0m |
