Features
- HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz
- Gold plated precision contacts with PureLink SLS™ (Secure-Lock-System™)
- HDMI-A male to HDMI-A male with PureLink APO™
- High purity copper conductors and triple shielding, AWG32
- Status LED, microUSB port for 5V supply

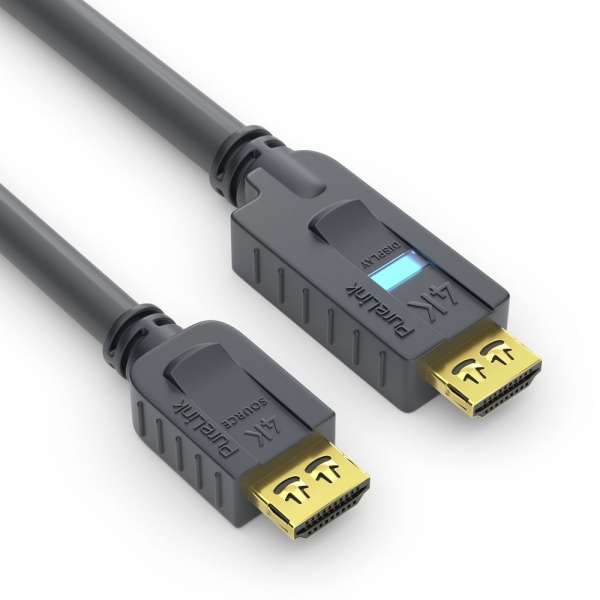

Active 4K High Speed HDMI Cable with microUSB Power Supply and SLS™
Long distances with full 18Gbps bandwidth and optional power supply for perfect performanceThe active High Speed HDMI with Ethernet cable PI2010 allows transmission distances up to 20 meters with up to 18Gbps for full 4K@60Hz (8bit, 4:4:4) resolutions. The 25m or 30m versions allow up to 10.2Gbps for 4K@30Hz or FullHD / 1080p@60Hz. The cable features an integrated signal amplifier, powered directly by the 5V line of the HDMI connection or, if the power output of the HDMI source device is not sufficient (e.g. laptop) using an external microUSB power adapter. This makes this cable especially suitable for professional applications over long distances. All features of the PureInstall series, such as Secure-Lock-System™ as well as triple shielding, high-purity OFC copper conductors and gold-plated contacts are of course also included.
BENCHMARK FOR PROFESSIONAL INSTALLATIONS
High-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts make PureInstall products a good investment for any field of use.The Latest GenerationThe PI2010 PureInstall HDMI cables comply with the HDMI standard - HDMI High Speed with Ethernet. They support bandwidths up to 18Gbps for resolutions up to 4K@60Hz with 8bit colors as well as 4:4:4 subsampling up to a length of 20m (10.2Gbps for max. 4K@30Hz at 25m & 30m) and are backwards compatible to all older HDMI specifications. The display of HDR content (High-Dynamic-Range) is also possible without problems. "Special Features" of PI2010The active cables feature an exclusive EQ chipset using a sophisticated signal processing, directly powered via HDMI. If the power input of the HDMI source device is not sufficient, which is often the case with laptops or graphics cards, a 5V power source can be easily connected via microUSB. The cable uses a subtle blue LED to indicate an active connection.PI2010 cables have achieved a bit error rate of 0 (zero) in tests with a Quantum Data 780D, last but not least due to the excellent interference-reducing EMI shielding.In terms of installation quality, the PI2010 cable does not need to hide behind other PureInstall cables: The cable is UL CL2 approved and therefore perfectly suited for in-wall installation. It also features strong, interlocking metal shells inside that can withstand high tensile forces.Note: The test specifications for active HDMI cables have not been published yet. When they are, these cables will be among the first to receive certification.Secure-Lock-System™Conventional HDMI plugs easily lose grip in the socket. The solution: PureLink® High Speed HDMI adapters with Secure-Lock-System™. The SLS™ technology was developed by PureLink especially for a more secure use of HDMI connections. This plug design is one of a kind on the current market and enhances the stability of the connection even with high traction rates, securing the connection permanently.Triple ShieldingOur unique triple-shielding technology consists of a 100% closed aluminum foil, a thick netting and an additonal inner shielding. Due to this, our cable are immune from interferences and crosstalk. The ultra-pure inner conductor made of OFC copper can therefore unfold its full potential.Custom-fit, Durable and Without LossesThe highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality.For Professional Purposes and InstallationsAll PureInstall cables are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the cables undergo over ten quality tests, making them the most reliable choice on the market.
Features |
HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz |
Gold plated precision contacts with PureLink SLS™ (Secure-Lock-System™) |
HDMI-A male to HDMI-A male with PureLink APO™ |
High purity copper conductors and triple shielding, AWG32 |
Status LED, microUSB port for 5V supply |
Logistics Information | |
Product 1. Net Weight in Kg | 0,19 |
Product 1. Gross Weight in Kg | 0,28 |
Product 1. Length in cm | 14 |
Product 1. Width in cm | 13 |
Product 1. Height in cm | 4 |
Packaging 1. Length in cm | 20 |
Packaging 1. Width in cm | 20 |
Packaging 1. Height in cm | 5,5 |
Master Carton Length in cm | 41 |
Master Carton Width in cm | 30 |
Master Carton Height in cm | 30 |
Product Information | |
Europeans Customs Tariff Nr. | 85444290900 |
Country of Origin | China |
Packaging Material | Plastic |
VPE Information | |
Master Packaging Unit (pcs) | 10 |
Connections | |
Power connector(s) | 1x microUSB female |
Contact material | 24kt. gold-plated |
Shielding | Yes |
Connector 1 | HDMI-A male |
Connector 2 | HDMI-A male |
Dimensions Con.1 | 22mm Stecker-Länge |
Dimensions Con.2 | 40mm Stecker-Länge |
Contacts | 24kt. gold-plated |
Electric signal | |
Maximum data rate | 18Gbps |
Digital video formats | HDMI High Speed w. Ethernet compatible |
Digital audio formats | HDMI High Speed w. Ethernet compatible |
HDCP | Yes |
CEC | Yes |
EDID | Yes |
Cable | |
Type | Active Round Cable |
Lenght | 5m |
Inner conductor material | Copper |
AWG | AWG32 |
Number of shieldings | 3 |
Shielding 1 | Foil |
Shielding 3 | Braid |
Outer material | PVC |
Mechanical | |
Power consumption | 5V HDMI or microUSB |
Signal transmission | |
Supported standards | HDMI High Speed w. Ethernet |
Transmission modes | Digital audio and video signals |
Supported Colors | HDMI High Speed w. Ethernet compatible |
Supported audio standards | HDMI High Speed w. Ethernet compatible |
Maximum resolution | 4K@60, 4:4:4, HDR |
Weiteres | |
Safety | CE, FCC |
MTBF | 30.000 hours |
further Certificates | UL CL2 |
Colour | black |
Warranty | 3 Years Manufacturer's Warranty |
Delivery Content |
1x PI2010-050 Active 4K HDMI cable with microUSB, 18Gbps, 5.0m |
Dokumente "Active 4K Premium High Speed HDMI Cable – 5.00m"
