- HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz
- Gold plated precision contacts with PureLink SLS™ (Secure-Lock-System™)
- HDMI-A male to HDMI-A male, compact construction
- High purity, tinned OFC copper conductors and triple shielding, AWG32
- Highly flexible jacket and cable construction

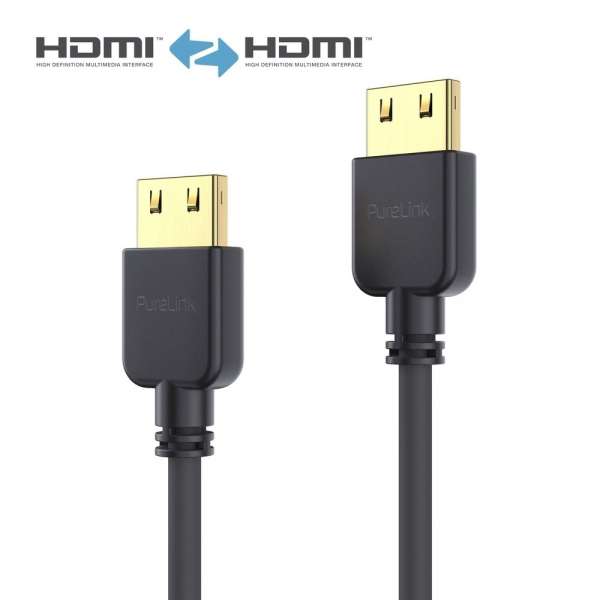

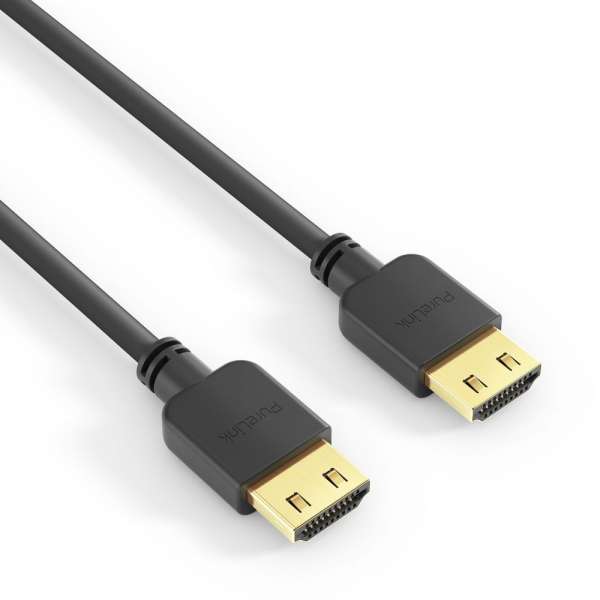

Flexible "SuperThin" PureInstall High Speed HDMI Cable with Ethernet and SLS™
Six different colours, "SuperThin" cable construction, 4K@60-capable and all the advantages of the PureInstall series!
The HDMI cables PI050X included in the PureInstall series are available in lengths from 30cm up to 2m and are especially suitable for professional applications and installations. Due to its very small cable diameter of 4.8mm and a flexible cable structure, an extremely small bending radius is possible. In combination with the compact connectors, especially the short cable lengths are perfectly suited for installations in narrow environments such as racks or behind the TV. Like all cables of the PureInstall series it is equipped with the Secure-Lock-System™. The PI050X cables allow the full 18Gbps bandwidth for 4K / UltraHD at 60Hz, are triple shielded and use conductors made of high purity OFC copper as well as gold-plated contacts. Available in black (PI0500), white (PI0501), blue (PI0502), green (PI0503), yellow (PI0504) and magenta-red (PI0505).
BENCHMARK FOR PROFESSIONAL INSTALLATIONS
With high-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts, PureInstall products are a good investment for any field of use.
The Latest Generation
The "SuperThin" PI050X PureInstall HDMI cables meet the HDMI standard - HDMI High Speed with Ethernet. Thus, they support bandwidths of up to 18 Gbps for resolutions up to 4K@60Hz with 8bit colors and 4:4:4 subsampling. The presentation of HDR (High-Dynamic-Range) content is also possible without any problems.
Special Features of the PI050X Series
The super-compact and high-quality HDMI connectors (ca. 16mm narrow / 8mm thin), in combination with a highly flexible jacket and cable construction with a diameter of only 4.8mm, enable an extremely small bending radius and save space in narrow installation environments, e.g. behind a display or in racks.
The cables are also available in black (PI0500), white (PI0501), blue (PI0502), green (PI0503), yellow (PI0504) and magenta red (PI0505).
Conventional HDMI plugs easily lose grip in the socket. The solution: PureLink® High Speed HDMI adapters with Secure-Lock-System™. The SLS™ technology was developed by PureLink especially for a more secure use of HDMI connections. This plug design is one of a kind on the current market and enhances the stability of the connection even with high traction rates, securing the connection permanently.
Our unique triple-shielding technology consists of a 100% closed aluminum foil, a thick netting and an additonal inner shielding. Due to this, our cable are immune from interferences and crosstalk. The ultra-pure inner conductor made of OFC copper can therefore unfold its full potential.
Custom-fit, Durable and Without Losses
The highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality.
HDMI Ethernet Channel and Audio Return Channel
The Ethernet channel (HEAC) within the HDMI cable is a new feature of the HDMI 1.4 standard. With this channel within the cable, you can integrate IP-based entertainment devices such as your TV, set-top-boxes or gaming consoles into your home network, including internet or IP-based services without additional cables. The audio return channel (ARC) eliminates (like the Ethernet channel does), an additional cable within the home cinema system. The ARC sends the digital audio signal - via the HDMI cable - back to your AV-receiver. Therefore, there is no more need for a separate connection with a Toslink cable.
For Professional Purposes and Installations
All PureInstall cables are manufactured in only the most modern production facilities. Every single cable is tested before shipping. During the manufacturing process, the cables undergo over ten quality tests, making them the most reliable choice on the market.
|HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz|
|Gold plated precision contacts with PureLink SLS™ (Secure-Lock-System™)|
|HDMI-A male to HDMI-A male, compact construction|
|High purity, tinned OFC copper conductors and triple shielding, AWG32|
|Highly flexible jacket and cable construction|
|Product 1. Net Weight in Kg||0,05|
|Product 1. Gross Weight in Kg||0,06|
|Product 1. Length in cm||12|
|Product 1. Width in cm||12|
|Product 1. Height in cm||1,5|
|Packaging 1. Length in cm||16,6|
|Packaging 1. Width in cm||24,3|
|Packaging 1. Height in cm||0,05|
|Master Carton Length in cm||41|
|Master Carton Width in cm||30|
|Master Carton Height in cm||30|
|Europeans Customs Tariff Nr.||85444290900|
|Country of Origin||China|
|Master Packaging Unit (pcs)||80|
|Contact material||24 ct. gold plated, long-life design|
|Connector 1||HDMI Type A male (19pin)|
|Connector 2||HDMI Type A male (19pin)|
|Contacts||24 ct. gold plated, long-life design|
|Maximum pixel clock / bandwidth||4K / UltraHD / 2160p (4096x2160)|
|Inner conductor material||High-purity OFC copper|
|Number of shieldings||3|
|Shielding 1||Aluminium foil (100% density)|
|Shielding 3||Mesh (100% density)|
|Outer material||Elastic PVC|
|Supported standards||High Speed HDMI with Ethernet|
|Transmission modes||Digital audio and video signals|
|Supported Colors||16/24 bit RGB/YUV, Deep Color, x.v.Color™, ARC, DD+|
|Supported audio standards||ARC, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD|
|Further standards||HDMI Ethernet Channel (HEC), 3D, HDCP, CEC, 4K2K (2160i/p), FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)|
|Safety||CE (incl. RoHS), FCC|
|Warranty||Optional 15 Years Manufacturer's Warranty|
