- HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz
- Gold plated precision contacts with PureLink ULS™ (Ultra-Lock-System™)
- HDMI-A male to HDMI-A male, black transparent plug
- High purity OFC copper conductors and triple shielding, AWG32/30
- Halogen-free (LSZH) for low smoke emissions in case of fire

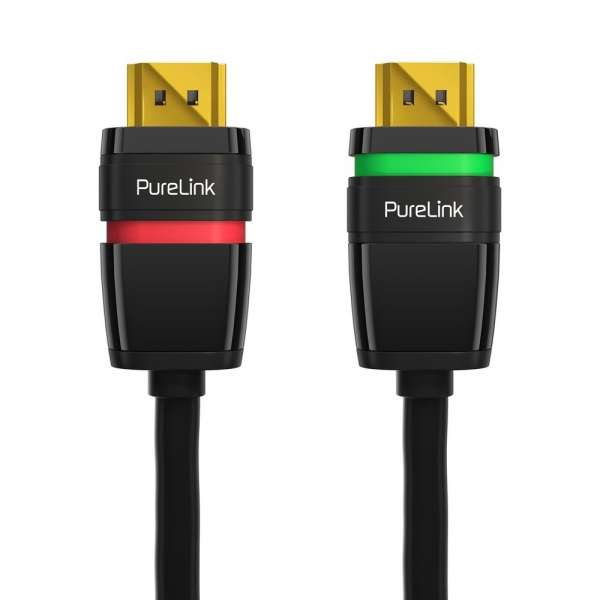

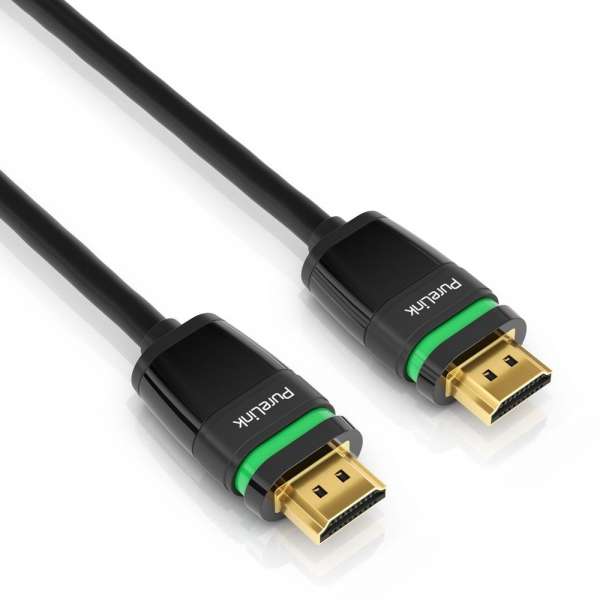

ULS1005 - LSZH High Speed HDMI Cable with Ultra Lock System™
The ultimate Connection - LSZH - Full 18 Gbps Bandwidth in up to 7.5 Meters!
The ULS1005 HDMI cable included in our Ultimate Series is halogen-free. The flame-retardant properties and low smoke emission during fires recommends this cable quality for installation in buildings. With the patented Ultra Lock System™ security lock ULS1005 complies with all demands of the new HDMI 2.0 standard and offers an easy to handle security system for all HDMI Connections. The high-purity, triple shielded OFC copper conductor and the 24-carat gold-plated pins emphasise its ultimate quality. Ethernet channel (HEAC) and audio return channel are of course included.
Double up Security: ULS™ and LSZH
The ULS1005 LSZH HDMI cables included in the Ultimate Series comply with all demands for the latest HDMI 2.0 standard and offer an easy to handle security system for all HDMI connections. The patented Ultra Lock System™ ensures uniterrupted, durable HDMI connections with its unique 360° interlock switch. Cable lengths (0.5 to 7.5 meters) provide full 18 Gbps bandwidth. Signal amplifiers with APO™ technology have been integrated into the cable lengths from 5m to 10m, enhancing the signal transmission for pin sharp pictures and crystal clear sound.
LSZH - Halogen-free for enhanced Safety
LSZH stands for "Low-Smoke, Zero-Halogen". Due to their flame retardant properties and only low smoke emission in case of fire, halogen-free installation cables are recommended for any installation in buildings or vehicles. In e.g. public buildings the use of LSZH cables is a legal requirement of fire protection legislation.
HDMI™ Certified Performance
Our Ultimate adapters certfied by HDMI™ meet the new HDMI standard - HDMI 2.0 High Speed with Ethernet. They support resolutions up to 4K (4096x2160) up to 7.5m and are backwards compatible to all older HDMI specifications.Our Ultimate cables certfied by HDMI™ are meet the new HDMI standard - HDMI 2.0 High Speed with Ethernet. They support resolutions up to 4K (4096x2160) and are backwards compatible to all older HDMI specifications.
Patented Ultra Lock System™
ULS™ technology has been developed specifically for the uninterrupted and secure use of HDMI connections. The innovative design locks the connector securely into the socket and is unique on the market. The safety lock can be used universally with any HDMI socket and can be easily switched between the locked and unlocked positions by using a 360° locking switch.
Our unique, three-layered shielding structure protects the high-purity inner conductor made of OFC copper and makes our cables immune to interference and crosstalk.
Gold Plated Perfectly fitting Plugs
The precision-manufactured and perfectly fitted plugs with 24-carat gold plated contacts guarantee optimum signal transmission and long-term reliable functionality.
HDMI Ethernet Channel and Audio Return Channel
With the Ethernet channel (HEAC) in the HDMI cable, IP-based entertainment devices such as TVs, set-top boxes or game consoles can be integrated into the home network, and the Internet or IP-based services can be used without additional cabling. The audio return channel (ARC) also saves an additional cable in the home cinema area. If necessary, it sends the digital audio signal back to the AV receiver via the HDMI cable and thus eliminates the need for a separate Toslink cable.
Quality Matters for professional Applications and Installations
A series of more than ten quality tests during the manufacturing process, quality control in PureLink's in-house test laboratory and test of each item before shipment guarantee 100% performance.
|HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz|
|Gold plated precision contacts with PureLink ULS™ (Ultra-Lock-System™)|
|HDMI-A male to HDMI-A male, black transparent plug|
|High purity OFC copper conductors and triple shielding, AWG32/30|
|Halogen-free (LSZH) for low smoke emissions in case of fire|
|Product 1. Net Weight in Kg||0,09|
|Product 1. Gross Weight in Kg||0,12|
|Product 1. Length in cm||13|
|Product 1. Width in cm||13|
|Product 1. Height in cm||1,6|
|Packaging 1. Length in cm||22,8|
|Packaging 1. Width in cm||16,6|
|Packaging 1. Height in cm||0,01|
|Master Carton Length in cm||40|
|Master Carton Width in cm||30|
|Master Carton Height in cm||30|
|Europeans Customs Tariff Nr.||85444290900|
|Country of Origin||China|
|Master Packaging Unit (pcs)||52|
|Secondary Packaging Unit (pcs)||26|
|Connector material||LSZH Plastics / Metal|
|Contact material||24 ct. gold plated, long-life Design|
|Connector 1||HDMI Type A Plug (19pin) incl. ULS™|
|Connector 2||HDMI Type A Plug (19pin) incl. ULS™|
|Contacts||24 ct. gold plated, long-life Design|
|Maximum pixel clock / bandwidth||4K/UHD/2160p@60Hz|
|Inner conductor material||High-purity, oxygen-free OFC Copper|
|Number of shieldings||3|
|Shielding 1||Aluminium Foil (100% Density)|
|Shielding 3||Mesh (100% Density)|
|Outer material||Highly elastic, halogen-free LSZH|
|Supported standards||High Speed HDMI with Ethernet, ULS, LSZH|
|Transmission modes||Digital Audio and Video Signals|
|Supported Colors||16/24 bit RGB/YUV, Deep Color, x.v.Color™|
|Supported audio standards||ARC, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, etc.|
|Further standards||HDMI Ethernet Channel (HEC), 3D, HDCP, CEC, 4K2K (2160i/p), FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p), LSZH|
|Safety||CE, ATC, LSZH|
|Warranty||3 Years Manufacturer's Warranty|
