- HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz
- Gold plated precision contacts with PureLink ULS™ (Ultra-Lock-System™)
- HDMI-A male to HDMI-A female, 15cm cable
- High purity OFC copper conductors and triple shielding, AWG30
- Portsaver for a narrow bending radius and strain relief of device ports

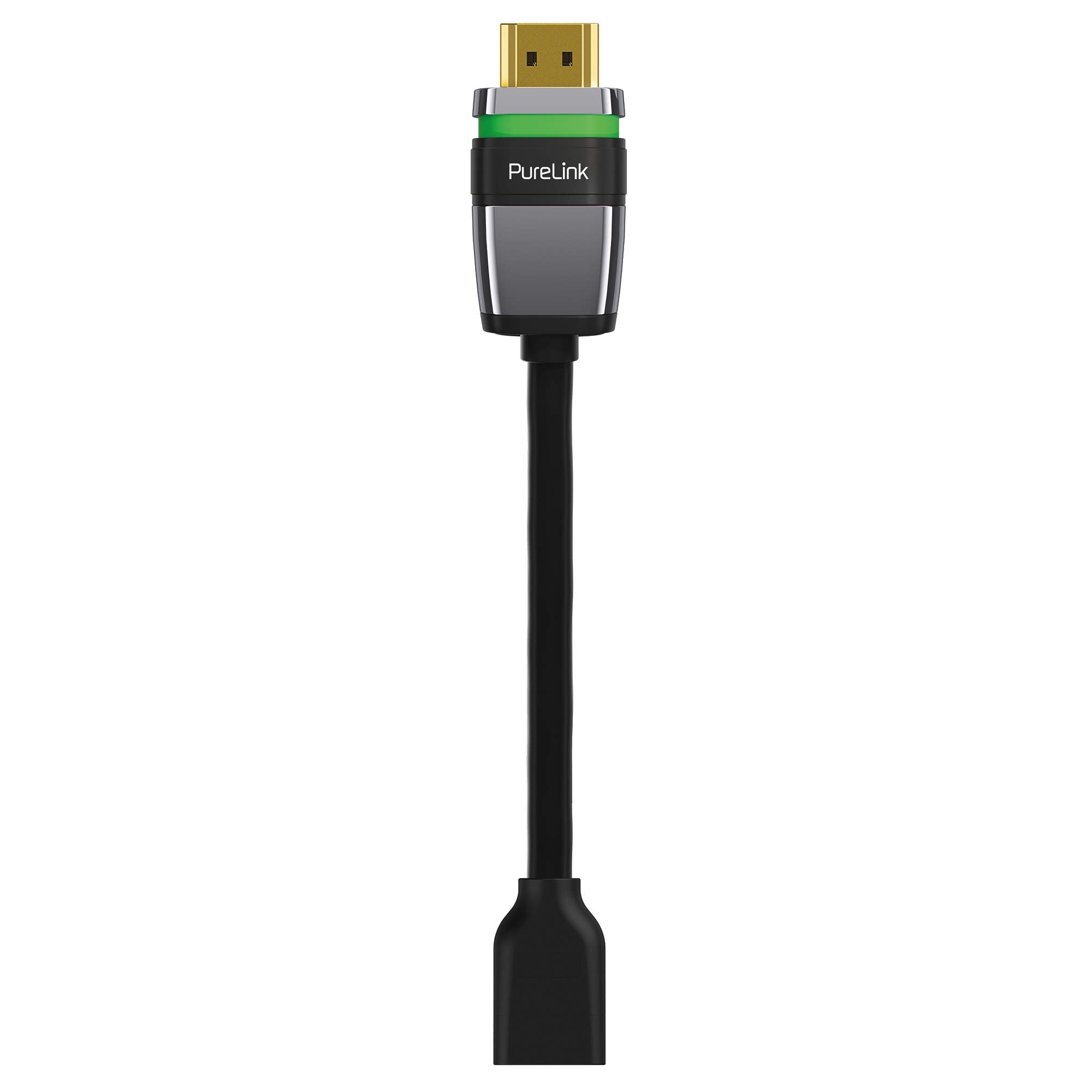

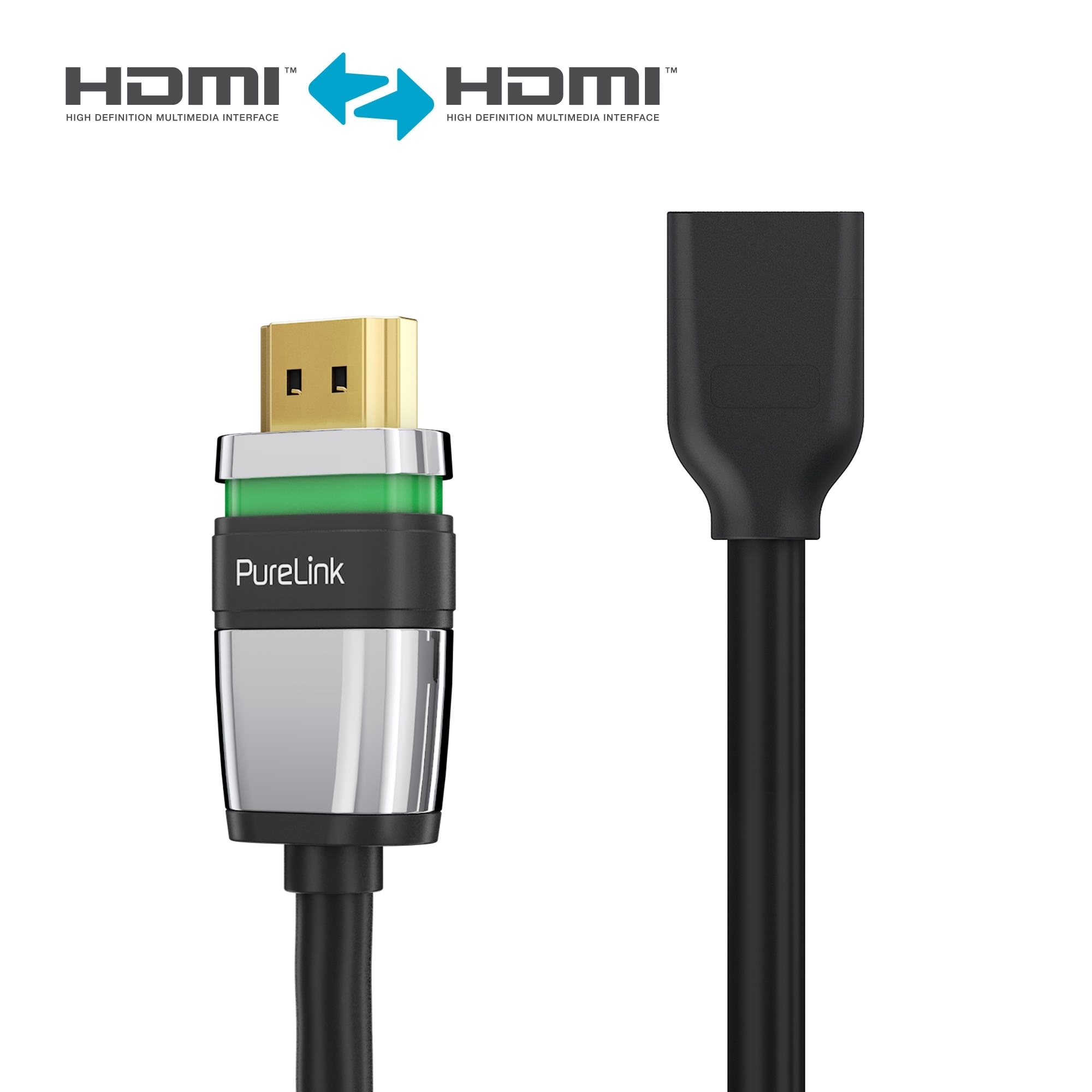

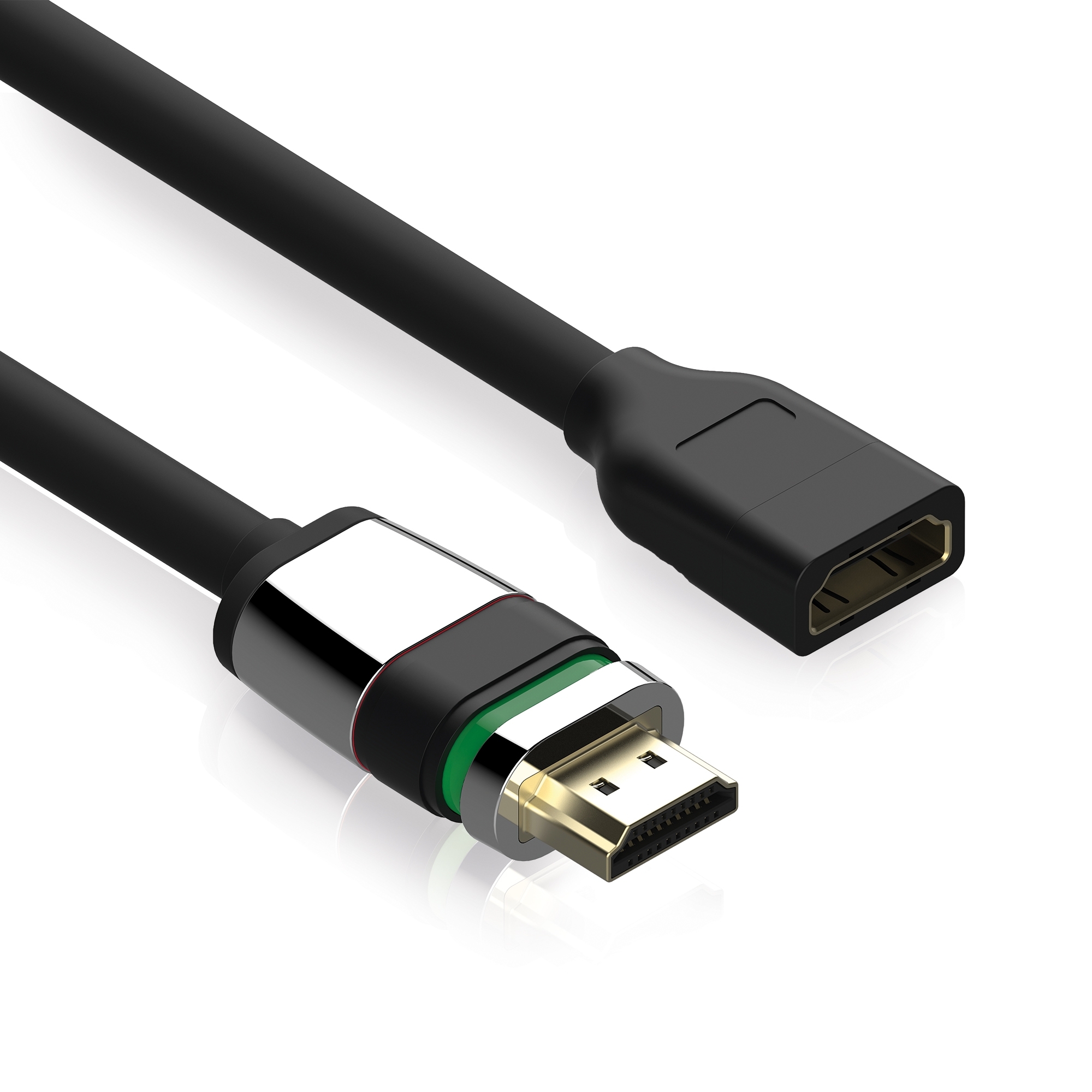

ULS010 - High Speed High Speed HDMI / High Speed HDMI Portsaver Adapter with ULS™
The Ultimate Connection.
The ULS010 locking HDMI Portsaver Adapter (male / female) included in our Ultimate series features the patented Ultra-Lock System™ for uninterrupted, secure HDMI connections. It complies with all demands of the new HDMI 2.0 standard and offers an easy to handle security system for all HDMI Connections. The high-purity triple shielded OFC copper conductor, 24 carat gold plated contacts and 360° interlock switch provide ultimate connection quality. Ethernet channel (HEAC) and audio return channel are included.
Benchmark for Professional Installations.
The HDMI Portsaver Adapter ULS010 (plug / socket) of the Ultimate Series provides a 15cm long, extremely flexible cable (HDMI-A male to HDMI-A female connector) protecting your HDMI connection from damage caused by rigid cables. It features the patented Ultra-Lock System™, the safest locking system for HDMI connections.
HDMI™ Certified Performance
Our Ultimate adapters certfied by HDMI™ meet the new HDMI standard - HDMI 2.0 High Speed with Ethernet. They support resolutions up to 4K (4096x2160) and are backwards compatible to all older HDMI specifications.Our Ultimate cables certfied by HDMI™ are meet the new HDMI standard - HDMI 2.0 High Speed with Ethernet. They support resolutions up to 4K (4096x2160) and are backwards compatible to all older HDMI specifications.
Patented Ultra Lock System™
ULS™ technology has been developed specifically for the uninterrupted and secure use of HDMI connections. The innovative design locks the connector securely into the socket and is unique on the market. The safety lock can be used universally with any HDMI socket and can be easily switched between the locked and unlocked positions by using a 360° locking switch.
Our unique, three-layered shielding structure protects the high-purity inner conductor made of OFC copper and makes our cables immune to interference and crosstalk.
Gold Plated Perfectly fitting Plugs
The precision-manufactured and perfectly fitted plugs with 24-carat gold plated contacts guarantee optimum signal transmission and long-term reliable functionality.
HDMI Ethernet Channel and Audio Return Channel
With the Ethernet channel (HEAC) in the HDMI cable, IP-based entertainment devices such as TVs, set-top boxes or game consoles can be integrated into the home network, and the Internet or IP-based services can be used without additional cabling. The audio return channel (ARC) also saves an additional cable in the home cinema area. If necessary, it sends the digital audio signal back to the AV receiver via the HDMI cable and thus eliminates the need for a separate Toslink cable.
Quality Matters for professional Applications and Installations
A series of more than ten quality tests during the manufacturing process, quality control in PureLink's in-house test laboratory and test of each item before shipment guarantee 100% performance.
|HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz|
|Gold plated precision contacts with PureLink ULS™ (Ultra-Lock-System™)|
|HDMI-A male to HDMI-A female, 15cm cable|
|High purity OFC copper conductors and triple shielding, AWG30|
|Portsaver for a narrow bending radius and strain relief of device ports|
|Product 1. Net Weight in Kg||0,04|
|Product 1. Gross Weight in Kg||0,04|
|Product 1. Length in cm||17|
|Product 1. Width in cm||4,5|
|Product 1. Height in cm||1,5|
|Packaging 1. Length in cm||23|
|Packaging 1. Width in cm||16,5|
|Packaging 1. Height in cm||0,1|
|Master Carton Length in cm||40|
|Master Carton Width in cm||30|
|Master Carton Height in cm||30|
|Europeans Customs Tariff Nr.||85444290900|
|Country of Origin||China|
|Master Packaging Unit (pcs)||124|
|Secondary Packaging Unit (pcs)||62|
|Connector material||Plastics / Metal|
|Contact material||24 ct. gold plated, long-life Design|
|Connector 1||HDMI Typ A male (19pin) inkl. ULS™|
|Connector 2||HDMI Typ A female (19pin)|
|Contacts||24 ct. gold plated, long-life Design|
|Maximum pixel clock / bandwidth||4K / UltraHD / 20160p (4096x2160) @60Hz, 4:4:4|
|Inner conductor material||High-purity, oxygen-free OFC Copper|
|Number of shieldings||3|
|Shielding 1||Aluminium Foil (100% Density)|
|Shielding 3||Mesh (100% Density)|
|Outer material||Highly elastic PVC|
|Outer diameter||5.7 mm|
|Supported standards||HDMI 2.0|
|Transmission modes||Digital Audio and Video Signals|
|Supported Colors||16/24 bit RGB/YUV, Deep Color, x.v.Color™|
|Supported audio standards||Audio-Return-Channel (ARC), Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD|
|Further standards||HDMI Ethernet Channel (HEC), 3D, HDCP, CEC, 4K2K (2160i/p), FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)|
|Warranty||3 Years Manufacturer's Warranty|
|1x ULS010 High Speed HDMI Portsaver Adapter, 0.15m|
Dokumente "Certified 4K Premium High Speed HDMI Portsaver"
