Features
  • Content streaming from integrated harddrive at 8 HDMI outputs
  • Supports 18Gbps for resolutions up to 4K UltraHD 60Hz incl. HDR
  • Audio support up to AC3, Dolby Atmos bypass, DTS-HD Master Audio
  • Internal 64GB SSD, USB connectivity for external media
  • Designed for 24/7 continuous operation, ideal for professional installations
HDMI 2.0a 4K UHD HDR Stream Generator, 64GB SSD, Dolby Vision™ - 8x HDMI
The BV-SG8008SA stream generator from PureTools is one of the worlds first approved player for Dolby Vision. It also supports HDR10 and HLG. It is capable of transmitting signals to various TVs simultaneously, e. g. for professional demonstration purposes such as showrooms, TV retail stores, on exhibitions and in PoS / advertisement surroundings. You can also synchronize stream generators using a standard network cable - Perfect for simultaneous streaming in remote locations.
Multivision makes simple displays to video art easels
Features:
- The BV-SG8008SA stream generator is the worlds first Dolby Vision™ approved A/V source device - Supports additional HDR formats: High-Dynamic-Range (HDR, HDR10), Dolby Vision™ and HLG (TBD)
- Full HDMI 2.0a support for resolutions up to 4K60, UltraHD, 2160p60 incl. BT.709 / BT.2020 as well as 10bit colors support - Audio support: AC3, Dolby Atmos, DTS & DTS-HD MA via optical S/PDIF
- Transmits signals to up to eight seperate TVs simultaneously for professional demonstration purposes such as showrooms, TV retail stores, on exhibitions and for any advertisement purpose
- Included 64GB mSATA SSD as well as 2x USB ports (Plug&Play for external storage devices), supporting various file formats (MPEG ts, tp, m2ts, mp4, AVI, MKV, jpg, png) as well as "Multivision" applications
- Ethernet port for network A/V streaming, player synchronization and firmware updates - Additional IR extension port for remote control extenders - Debug port (DBG) for monitoring purposes

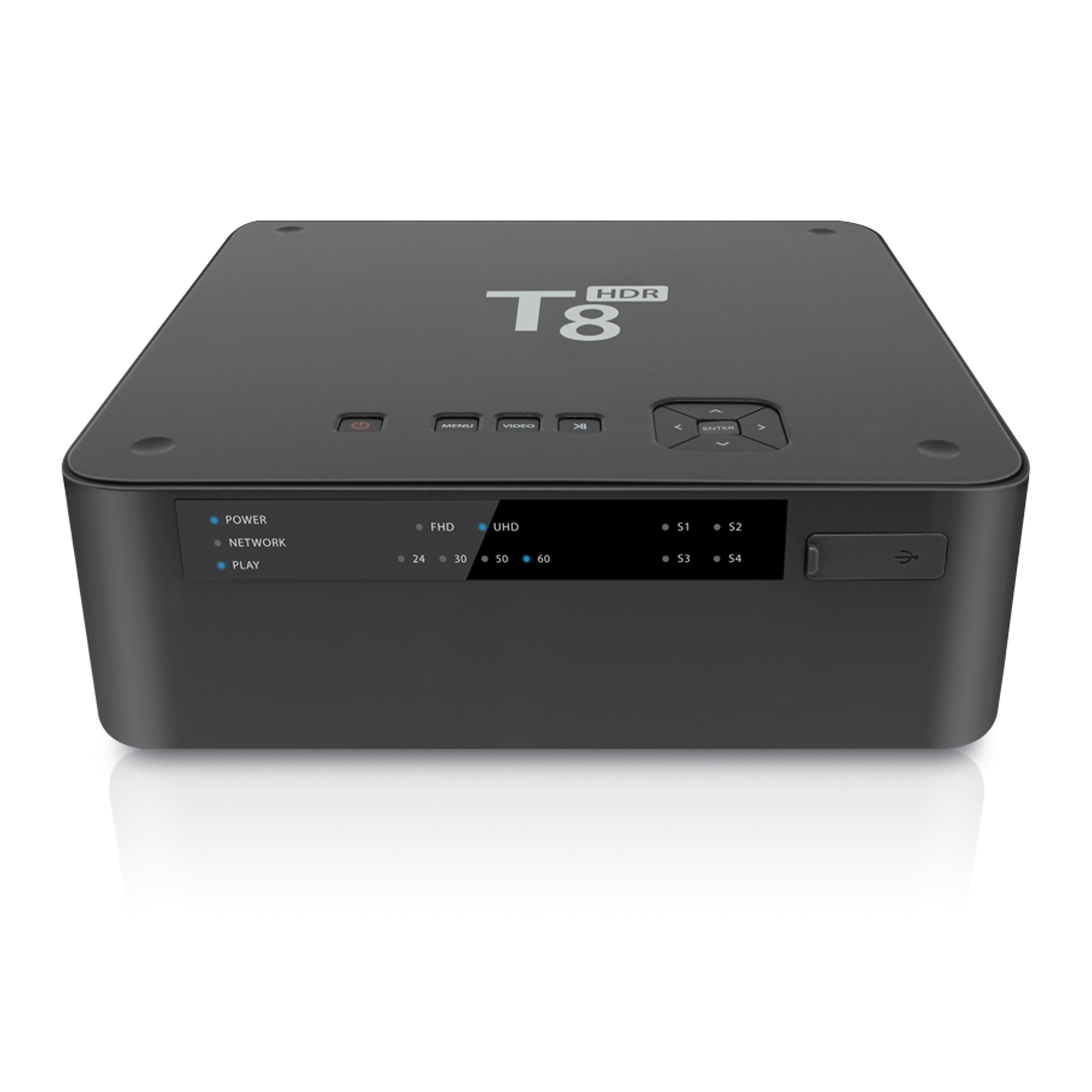

- User Interface: 9 Buttons (Power, Menu, Video, Enter, Direction(U/D/L/R), Play/Pause), 13 LED Status Indicators: Power on/off, LAN, Play, Refresh Rate (24/30/50/60), FHD, UHD, S1, S2, S3, S4S4
- IR extension receiver included
- Settings Date & Time, Reservation On/Off, Network information, Server IP, Slide Show Time for JPEG
- Stream & Firmware Updates via USB, network - Auto Update available
- Remote: Playlist control & play control
- Content upload via FTP
- Recovery: Rescue Mode available via user input
- File Control: Multi play list, Selection for Copy media or Deletion, Check /Uncheck , Move Up/Down
Features
Content streaming from integrated harddrive at 8 HDMI outputs
Supports 18Gbps for resolutions up to 4K UltraHD 60Hz incl. HDR
Audio support up to AC3, Dolby Atmos bypass, DTS-HD Master Audio
Internal 64GB SSD, USB connectivity for external media
Designed for 24/7 continuous operation, ideal for professional installations
Logistics Information
Product 1. Net Weight in Kg 1,00
Product 1. Gross Weight in Kg 1,50
Packaging 1. Weight in Kg 1
Product 1. Length in cm 21,5
Product 1. Width in cm 21,5
Product 1. Height in cm 7
Packaging 1. Length in cm 37
Packaging 1. Width in cm 25,5
Packaging 1. Height in cm 27
Master Carton Length in cm 37
Master Carton Width in cm 25
Master Carton Height in cm 27
Product Information
Europeans Customs Tariff Nr. 85219000900
Country of Origin Korea
Packaging Material Paper
VPE Information
Master Packaging Unit (pcs) 6

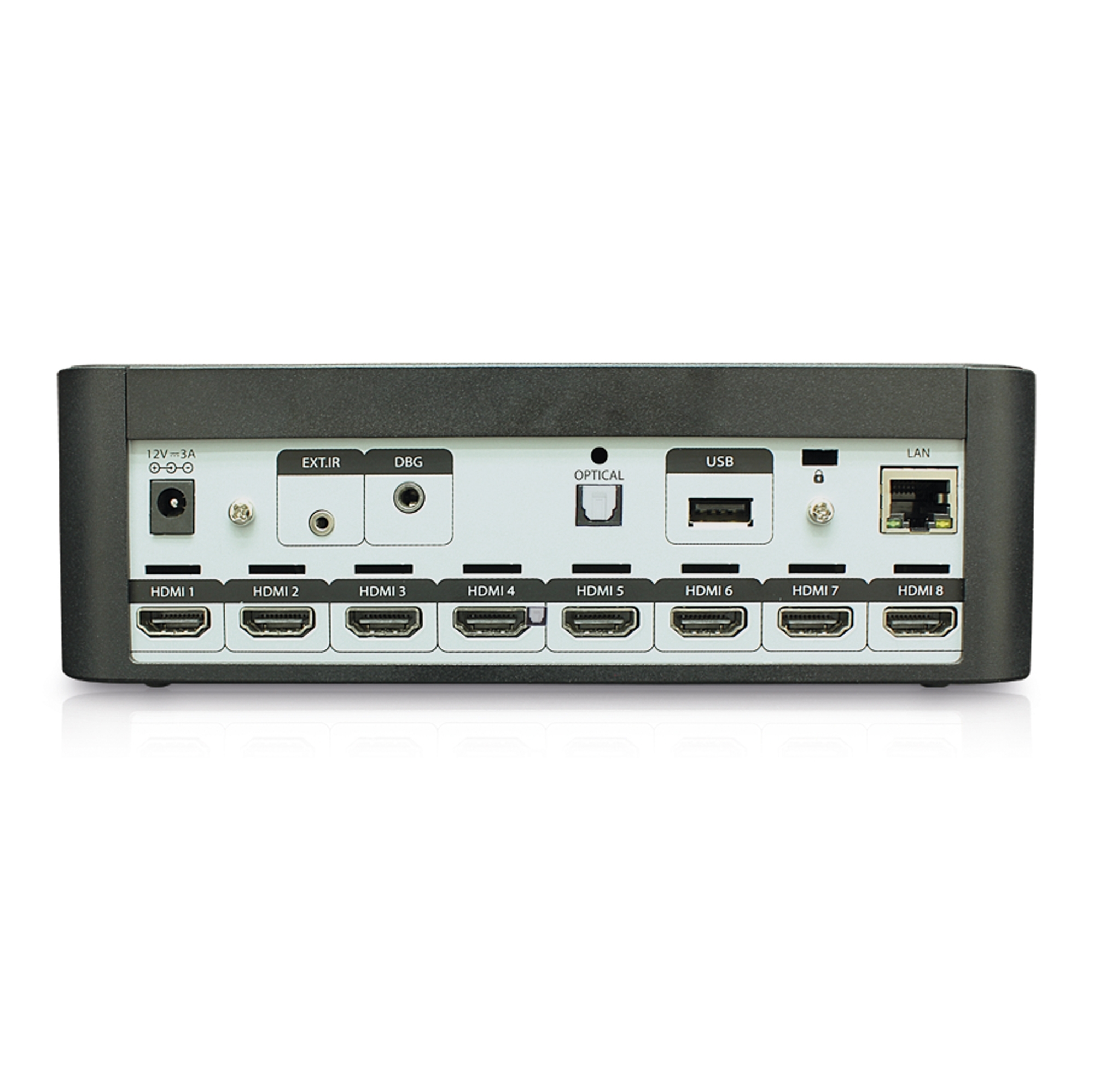

Connections
Input connector(s) 2x USB-A (1x v2.0, 1x v3.0), 1x Ethernet (RJ45), 1x Debug, 1x IR Remote
Output connector(s) 8x HDMI-A (6x v2.0), 1x S/PDIF (Toslink)
Power connector(s) 12V 3A
Control connector(s) IR / Debug / USB / RJ45 (10G/100G)
Electric signal
Maximum pixel clock / bandwidth 18 Gbps
Digital video formats Dolby Vision, HDR10, HLG (TBD), Multivision, etc.
Digital audio formats AC3, Dolby Atmos, DTS & DTS-HD, Dolby Atmos, etc.
HDCP Yes
EDID Yes
Mechanical
Power supply max. 36 Watts
Power consumption DC: 12 3A
Operating temperature 0°C - 45°C
Enclosure Plastic
Dimensions 215 x 215 x 70 mm
Signal transmission
Supported standards MPEG-TS, MPEG-2 TS (ts, tp, m2ts),MP4, AVI, MKV, MPEG2 MP@HL, MPEG4.10(H.264) MP@L5.1, HEVC(H.265) Main10@L5.1 8/10bit, VP9 (2K@60p), jpeg, png, FTP
Supported Colors BT.709, BT.2020 Color depth 10 bit, HDR 10, HLG, SMPTE ST2086, etc.
Supported audio standards Dolby Atmos, DTS & DTS-HD, Dolby Atmos, MPEG 1 layer I, II & III, MPEG 4 AAC-LC Stereo & 5.1, HE AAC V1/V2, AC3, etc.
Maximum resolution 4K / UltraHD / 2160p @60Hz (4K@60)
Further standards 64GB internal SSD (mSATA), USB Plug&Play
Weiteres
Safety CE (all-in)
Colour Dark Grey
Warranty 3 Years Manufacturer's Warranty
Delivery Content
1x BV-SG8008SA, 8x HDMI
