Features
- Switching of 1 HDMI / USB-C signal to 1 HDMI / HDBaseT output
- Supports 18Gbps for resolutions up to 4K UltraHD 60Hz
- Bidirectional PoC, bal. audio output on both units, wide range of control functions
- HDBaseT 3.0 standard for 4K signals up to 80m
- 6x USB for KVM: 2 USB-A 3.2 on the switcher, 3 USB-A + 1 USB-C 2.0 on the receiver




PureTools PT-PSW-21KVM 2x2 4K 18G HDBaseT 3.0 KVM Extender Set
PT-PSW-21KVM is a professional 4K presentation switcher set including HDBaseT receiver. With its total of six USB inputs, devices such as KVM, cameras or storage media can be integrated both on the switcher side and on the receiver side. The presentation switcher uses the latest HDBaseT 3.0 protocol and is thus capable of distributing 4K signals at 18Gbps up to 80 meters. On the input side, an HDMI-A port with coupled USB-B input and a fully featured USB-C v3.2 port including 60W USB Power Delivery and DP Alt-Mode are available. In addition to the HDBaseT output, a mirrored HDMI output is available for local monitoring on the switcher. Both devices, the switcher and the receiver, can extract a balanced audio signal via a 5-pin Phoenix screw terminal. Only one of the two units needs to be supplied with power thanks to bidirectional PoC. Various control functions are available: integrated push buttons and DIP switches on the front of the switcher, removable dry contact switches, RS232 local and pass-through, Ethernet pass-through as well as network integration via TCP/IP.
PureTools - High-grade electronic products for commercial applications

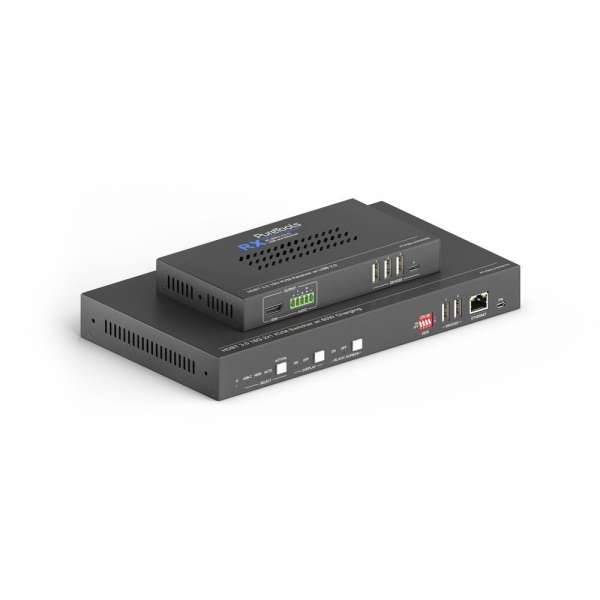

The PT-PSW-21KVM 4K HDBaseT Presentation Switcher with Extender Set consists of presentation switcher and receiver. It switches between incoming HDMI and USB-C signals and outputs them via HDBaseT to a receiver or to a local HDMI output on the switcher. The HDBaseT connection complies with the latest HDBaseT 3.0 standard and is established with a conventional Cat. cable (preferably Cat.6a) and transmits 18G signals for 4K resolutions with max. 60Hz at 4:4:4 color subsampling and incl. HDR over up to 80 meters.

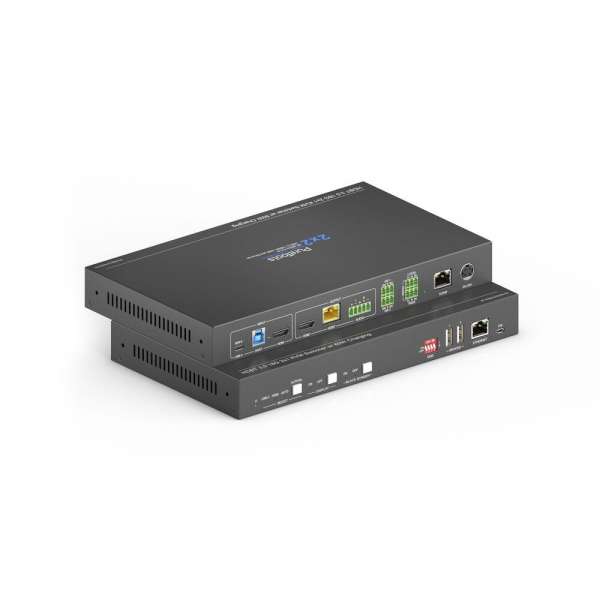

On the input side of the switcher, two options are available. The HDMI input is coupled to a USB-B port, which is switched simultaneously with it and thus always couples the control signals with the AV signal. In addition, a full-fledged USB-C connection is available. This supports both the AV connection via DP Alt-Mode as well as the parallel Ethernet and data connection according to USB 3.2 standard and USB Power Delivery with up to 60 Watts of power for simultaneous charging of a connected mobile device.
On the output side of the switcher, an HDBaseT 3.0 output is available for connection to the receiver, as well as an HDMI output for local monitoring. In addition, a balanced audio signal can be de-embedded via a 5-pin Phoenix screw terminal.

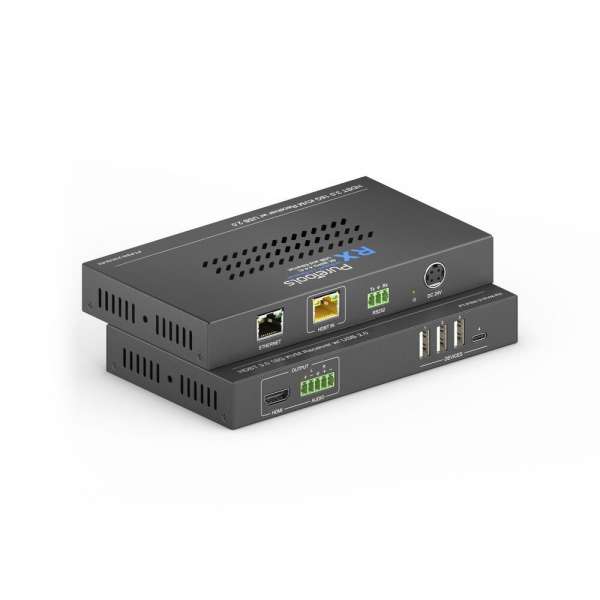

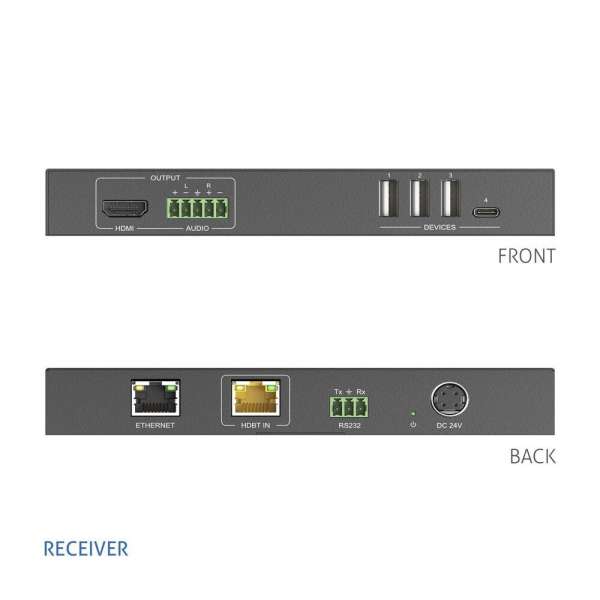

The receiver has an HDBaseT 3.0 input for receiving the signal from the switcher, an HDMI output and a balanced audio output using a 5-pin Phoenix connection.
With a total of six connection options for USB devices on the switcher and receiver, many USB peripherals, such as KVM, cameras, microphones or storage media, can be integrated at both locations. Two USB-A 3.2 ports are available on the switcher itself for this purpose. The receiver is equipped with three USB-A and one USB-C input according to USB 2.0 standard.
The latest HDBaseT 3.0 standard enables the long-distance transmission of AV signals with almost no delay and includes 1G Ethernet, USB 2.0 as well as power. With 594MHz frequency, uncompressed AV signals according to HDMI 2.0 standard with up to 4K@60Hz resolution and HDCP 2.2 encryption are transmitted up to 80 meters over just one cable.
Both units have a pass-through Ethernet port so that an internet signal only needs to be connected at one point to be picked up at all locations.
A TCP/IP port is available on the switcher for network integration, allowing the set to be configured remotely via the local network.
Both units also feature a USB firmware update port for easy software updates.
The set is equipped with two RS232 interfaces. The switcher itself has a local RS232 port as well as an RS232 pass-through port that can be used to control the receiver remotely. On the receiver itself a local RS232 port is provided.

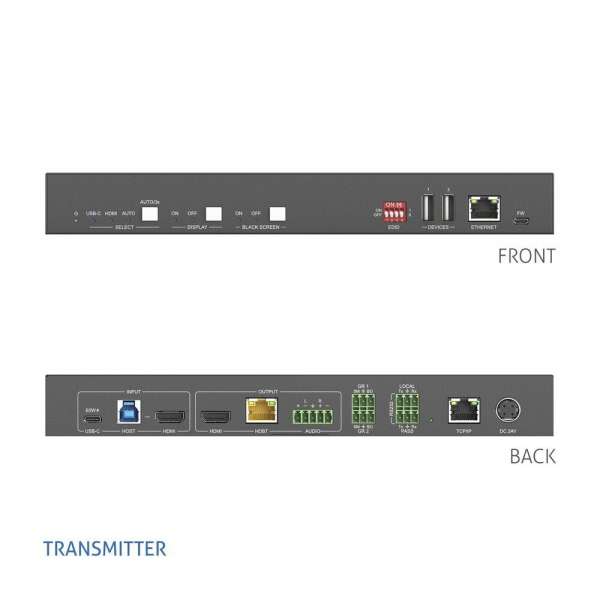

On the front of the switcher are various push buttons and DIP switches for signal configuration. Some of these local control functions, such as input signal switching and black screen, can be remotely controlled via a dry contact switch connection.
The system supports bidirectional PoC (Power over Cat) power supply. This means that only one of the two devices needs to be supplied with power using the included PSU. The other device can be supplied with power via HDBaseT Cat connection. This saves power supply units and tidies things up, thanks to less cabling in one of the two locations.
The 12V power connection of both devices can be locked with a screw terminal.
High-grade electronic products for commercial applications
The PureTools product line is made up of high-quality audio/video electronic products such as switchers, splitters, converters and extenders for commercial AV installations and applications. The product line's focus is on the transmission of digital signals such as HDMI, DisplayPort, DVI and SDI. Dependable technology designed according to the latest standards and combined with intelligent innovations, make the PureTools product line perfect for professional installers, as well as guaranteeing an "Install and Forget" experience thanks to top grade performance.
Features |
Switching of 1 HDMI / USB-C signal to 1 HDMI / HDBaseT output |
Supports 18Gbps for resolutions up to 4K UltraHD 60Hz |
Bidirectional PoC, bal. audio output on both units, wide range of control functions |
HDBaseT 3.0 standard for 4K signals up to 80m |
6x USB for KVM: 2 USB-A 3.2 on the switcher, 3 USB-A + 1 USB-C 2.0 on the receiver |
Logistics Information | |
Product 1. Net Weight in Kg | 2,00 |
Product 1. Gross Weight in Kg | 2,26 |
Product 1. Length in cm | 26,5 |
Product 1. Width in cm | 15 |
Product 1. Height in cm | 3,5 |
Packaging 1. Length in cm | 42 |
Packaging 1. Width in cm | 21 |
Packaging 1. Height in cm | 11 |
Master Carton Length in cm | 56 |
Master Carton Width in cm | 56 |
Master Carton Height in cm | 26 |
Product Information | |
Europeans Customs Tariff Nr. | 85437090990 |
Country of Origin | China |
Packaging Material | Plastic/Paper |
VPE Information | |
Master Packaging Unit (pcs) | 5 |
Connections | |
Input connector(s) | TX: 1x HDMI + 1x Data (USB-B), 1x USB-C, 2x KVM (USB-A), 2x RS232 (3 pin Phoenix), 2x Breakout (3 pin Phoenix), 1x Ethernet (RJ45), 1x TCP/IP (RJ45) | RX: 1x HDBaseT (RJ45), 4x KVM (3x USB-A, 1x USB-C), 1x RS232 (3 pin Phoenix), 1x Ethernet (RJ45) |
Output connector(s) | TX: 1x HDBaseT (RJ45), 1x HDMI, 1x Analog Bal. Stereo (5 pin Phoenix) | RX: 1x HDMI, 1x Analog Bal. Stereo (5 pin Phoenix) |
Power connector(s) | 24V screw terminal on both dev |
Control connector(s) | Switcher: 2x USB-A (v3.2), 1x Ethernet, 1x TCP/IP, |
Electric signal | |
Maximum data rate | 18Gbps |
Digital video formats | Up to 4K@60Hz 4:4:4 uncompressed |
HDCP | Yes |
CEC | Yes |
EDID | Yes |
Mechanical | |
Power consumption | 12V |
Enclosure | Metal |
Signal transmission | |
Supported standards | HDBaseT 3.0, 18G HDMI |
Transmission modes | HDBaseT |
Supported Colors | HDMI spec compliant |
Supported audio standards | HDMI spec compliant |
Maximum resolution | 4K@60Hz, 4:4:4 unkomprimiert |
Weiteres | |
Safety | CE, FCC |
Colour | black |
Delivery Content |
1x PT-PSW-21KVM Presentation Switcher Module |
1x PT-PSW-21KVM Receiver Module |
1x Bedienungsanleitung |
Dokumente "2x1 4K 18Gbps Multiformat Presentation Switcher with KVM Set"
