Features
  • eARC extraction from 1 HDMI input to 2 HDMI (eARC / pass-through) outputs
  • Supports 18Gbps for resolutions up to 4K UltraHD 60Hz
  • HDMI audio output for uncomp. eARC, ARC + HDMI audio with 720p black picture
  • HDCP 2.3 compliant, signal equalizer, pass-through for CEC, EDID management
  • Ultra-slim and lightweight enclosure, Plug&Play functionality

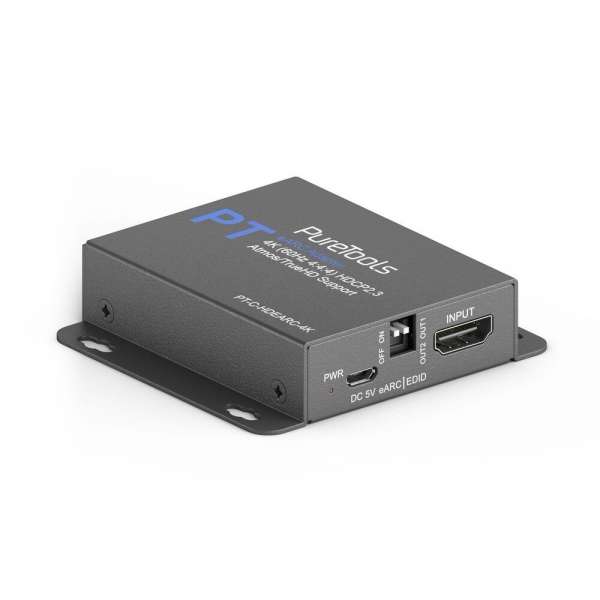

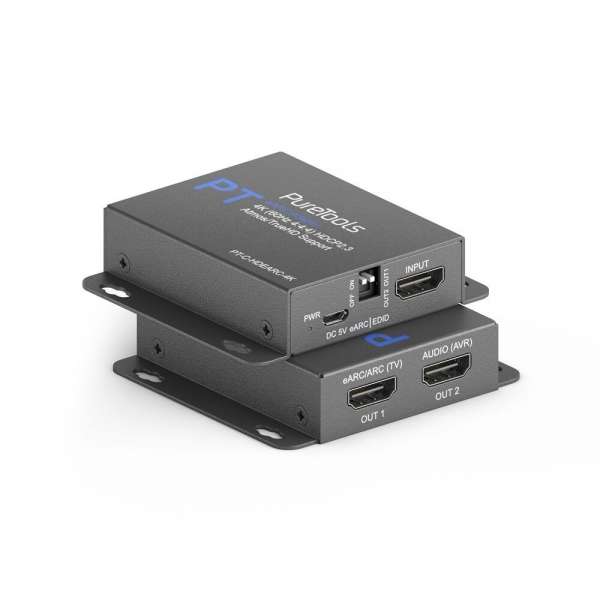

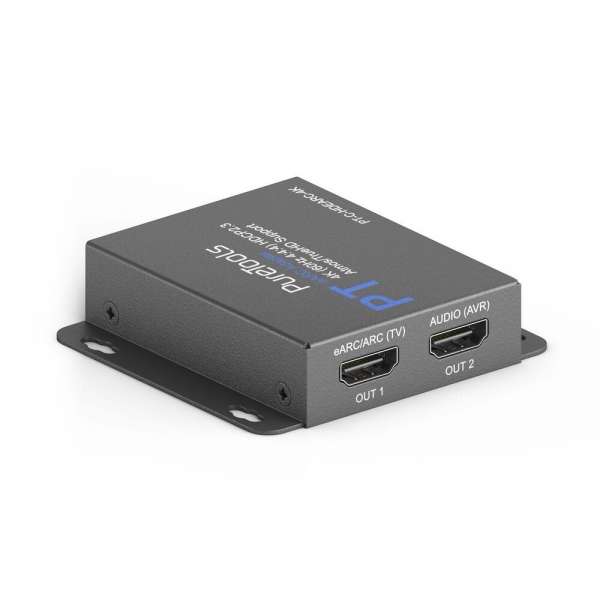

PureTools PT-C-HDEARC-4K HDMI eARC Adapter / Extractor
The HDMI eARC adapter and extractor PT-C-HDEARC-4K can de-embed the eARC or ARC signal from a connected TV to send it to a compatible audio device. It can also extract the audio signal from a connected HDMI source device, transferring it uncompressed and including a 720p black image to an AVR, amplifier or soundbar via its unique HDMI audio output. This adds compatibility with the latest audio formats to any legacy AVR. The adapter / extractor is HDMI 2.0b / HDCP 2.3 compliant and thus supports a bandwidth of 18Gbps for resolutions up to 4K / UltraHD with 60Hz and HDR formats. Two DIP switches can be used to control the EDID, eARC as well as pass-through functions. Incoming HDMI signals are equalized and reclocked before getting forwarded.
PureTools - High-grade elctronic products for commercial applications
The PT-C-HDEARC-4K is the ideal tool to make the latest multichannel audio formats compatible with older AVR, amplifiers or soundbars. The eARC adapter and extractor is also compatible with the HDMI 2.0b specification including HDCP 2.3, supporting resolutions up to 4K / UltraHD at up to 60Hz with a bandwidth of 18Gbps including HDR formats such as HDR10, HDR10+ and Dolby Vision. It features one HDMI input for source devices up to 4K and two HDMI outputs for the TV set and a separate AV receiver or soundbar. Thanks to its compatibility with various multichannel audio formats including LPCM 5.1 and 7.1, Dolby Digital, Dolby Digital Plus, Dolby True-HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master and DTS:X, as well as stereo signals, it acts as a middleman between older and newer generation devices that would not be compatible without it. The second output of the PT-C-HDEARC-4K always provides the uncompressed audio signal, along with a 720p black image. This ensures permanent compatibility with older AV receivers, amplifiers and soundbars. If the PT-C-HDEARC-4K is connected to the eARC or ARC port of a TV that supposedly exceeds the specification due to a too large 8K@60Hz resolution (or even 4K@120Hz), the audio transmission will nonetheless work, as only the eARC or ARC signal is extracted.

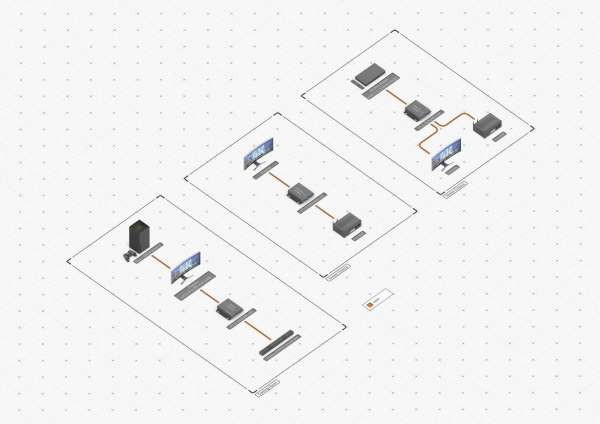

The PT-C-HDEARC-4K supports three different application scenarios:

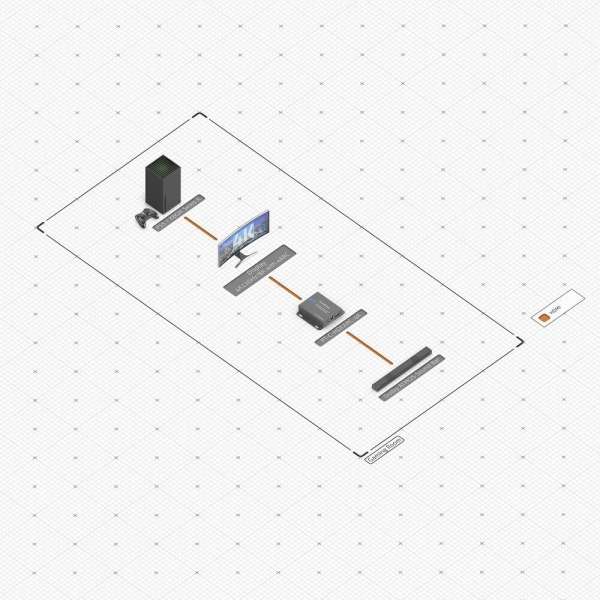

1. Any source device is connected directly to a compatible TV set. The eARC or ARC signal of the source device is transmitted via the eARC output of the TV to the PT-C-HDEARC-4K and from there forwarded to the AV receiver as a compatible signal.

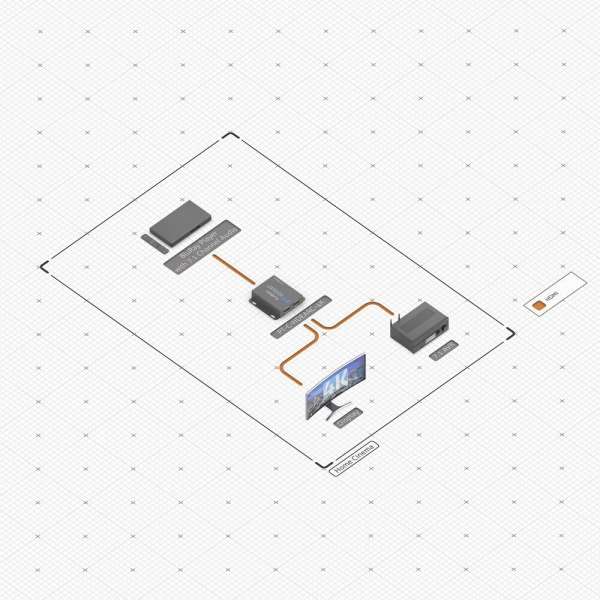

2. A 4K source device is connected directly to the input of the PT-C-HDEARC-4K. It simultaneously forwards the entire signal to a connected TV set and at the same time extracts the audio as a compatible signal to the AV receiver.

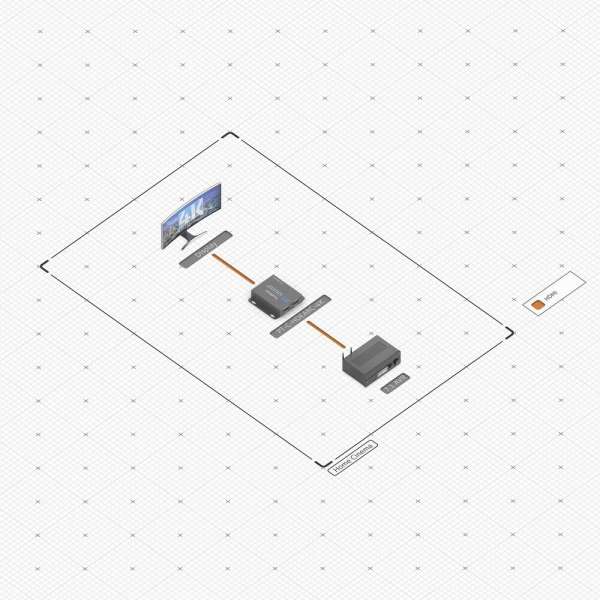

3. The eARC or ARC signal from the internal receiver or media player of the TV is transmitted via the eARC output of the TV to the PT-C-HDEARC-4K and from there forwarded to the AV receiver as a compatible signal.

In addition to extracting the audio signal, the PT-C-HDEARC-4K also handles the equalization and reclocking of incoming signals so that they can be transmitted over long distances without any loss. CEC signals are also forwarded between the devices. In addition, it features an EDID management function that allows the EDID of a connected TV to be read and passed on, or to switch to a standard EDID if the handshake fails. Which EDID is to be read out can be determined using the DIP switch on the front of the device. The second DIP switch turns the eARC extraction function on or off. When the eARC function is switched on, the eARC or ARC signal is extracted at the second audio output. When the eARC function is turned off, the audio signal from the HDMI input is routed to the second output.


High-grade electronic products for commercial applications
The PureTools product line is made up of high-quality audio/video electronic products such as switchers, splitters, converters and extenders for commercial AV installations and applications. The product lines focus is on the transmission of digital signals such as HDMI, DisplayPort, DVI and SDI. Dependable technology designed according to the latest standards and combined with intelligent innovations, make the PureTools product line perfect for professional installers, as well as guaranteeing an "Install and Forget" experience thanks to top grade performance.
Features
eARC extraction from 1 HDMI input to 2 HDMI (eARC / pass-through) outputs
Supports 18Gbps for resolutions up to 4K UltraHD 60Hz
HDMI audio output for uncomp. eARC, ARC + HDMI audio with 720p black picture
HDCP 2.3 compliant, signal equalizer, pass-through for CEC, EDID management
Ultra-slim and lightweight enclosure, Plug&Play functionality
Logistics Information
Product 1. Net Weight in Kg 0,16
Product 1. Gross Weight in Kg 0,16
Product 1. Length in cm 7
Product 1. Width in cm 7,5
Product 1. Height in cm 2
Packaging 1. Length in cm 15
Packaging 1. Width in cm 10,5
Packaging 1. Height in cm 7
Master Carton Length in cm 36
Master Carton Width in cm 31,5
Master Carton Height in cm 45
Product Information
Europeans Customs Tariff Nr. 85437090990
Country of Origin China
Packaging Material Plastic/Paper
VPE Information
Master Packaging Unit (pcs) 40
Connections
Input connector(s) 1x HDMI
Output connector(s) 2x HDMI
Electric signal
Standards HDMI 2.0b, HDCP 2.3
Digital video formats HDMI 4K / UltraHD / 2160p @60Hz
Digital audio formats eARC, ARC, all audio formats up to HDMI 2.0b
HDCP Yes
CEC Yes
EDID Yes
Mechanical
Power supply max. 1.75W
Power consumption 5V, 500mA
Operating temperature 0°C - 40°C
Storage temperature -20°C - 60°C
Humidity 20~95°%
Enclosure Aluminium
Dimensions 65 x 70 x 27 mm
Weiteres
Safety CE, FCC, ROHS, REACH
Colour black
Warranty Optional 5 Years Manufacturer's Warranty
Delivery Content
1x PT-C-HDEARC-4K 4K HDMI eARC Adapter / Extractor
1x USB Cable USB-A to microUSB
1x User Manual
