- Each arm: Tilt 45° up to -45°, swivel 90° up to -90° (relying on screen width), rotatable 360°
- Arm length: each 428mm, height tube 450mm, clamp width 10mm - 88mm
- Load capacity max. 8kg / arm
- Supports VESA 75x75, 100x100 for displays wih a diagonal of 33cm (13") to 69cm (27")
PureMounts Mounting Solutions - Always a great choice!

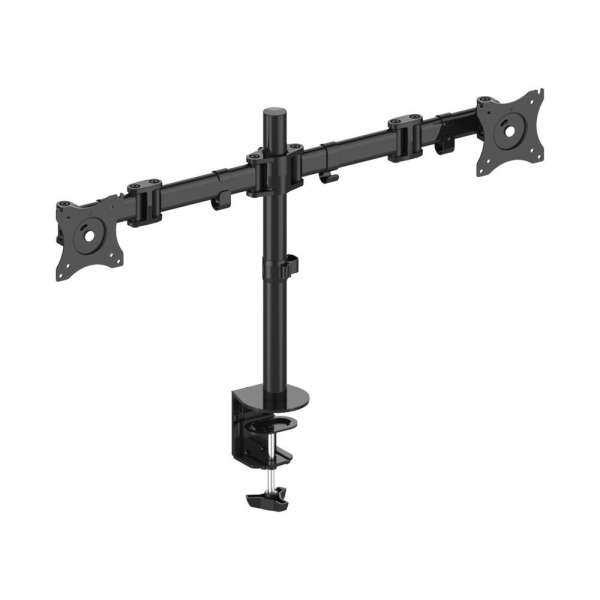

PureMounts PM-OFFICE-02 - Tiltable, turnable and swivelable TV / monitor desk mount for 2 displays, arm lengths 428mm, load capacity 2x8kg, max. VESA 100x100, for screens between 33 - 69cm (13"-27")
Many Functions, Fair Contitions
Stepless and noiseless adjustment options

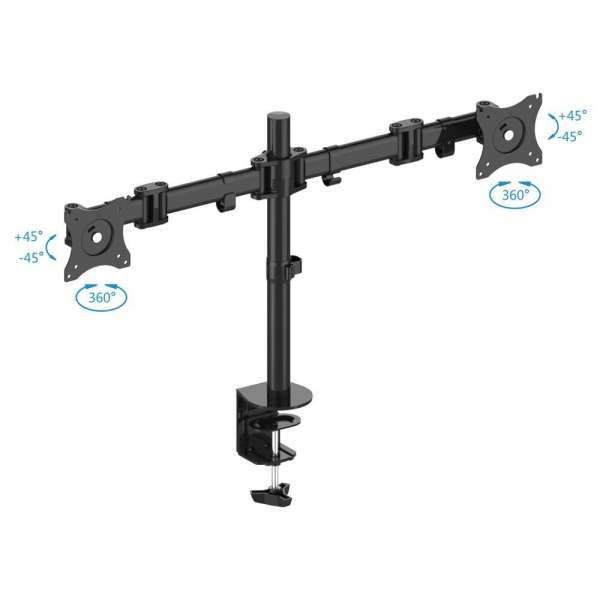

The inclinability from 45° to -45° for each display can eliminate annoying glare effects and reflections.
With a tilt range from 90° to -90° (depending on screen width), optimum alignment is guaranteed at all times - the middle joint is not tiltable!
Thanks to an infinite 360° rotation, the displays can be used in landscape and portrait format as well as diagonally.
The load capacity of max. 8kg per arm is guaranteed by a high-quality material selection (steel).
Thus, the bracket can support devices from 33cm (13") to 69cm (27") screen diagonal.

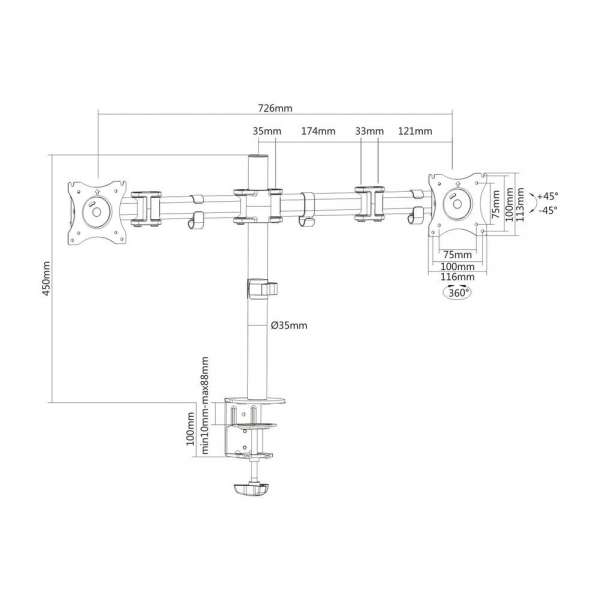

The height of the round tube is 450mm, the single arm length app. 428mm.
The table mounting clamp is suitable for a thickness of 10mm to 88mm.
Function and design in perfect combination!
The holder is black. This colour combination is ideal for use with the mostly black display housings.
Easy to mount - everything included!
The installation instructions are clear, self-explanatory and contain a table of contents.
It is also illustrated with drawings and pictograms.

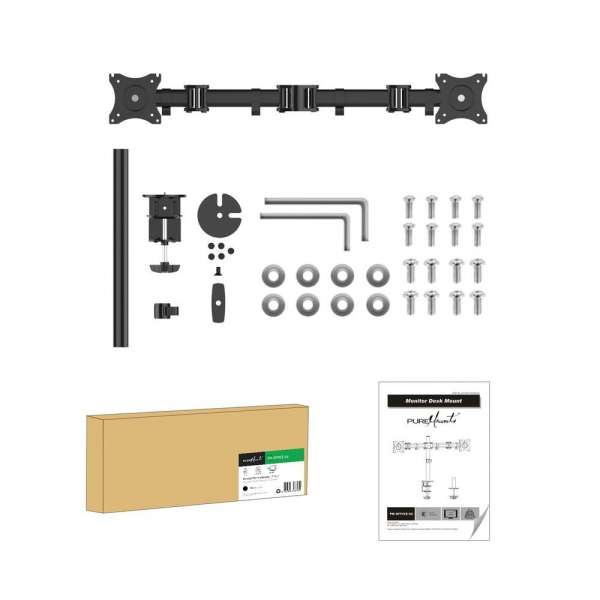

Included in delivery: The complete installation material!
The compatible display formats mentioned are based on empirical values.
The VESA hole size and weight of your TV only determine the compatibility with our wall mounts.

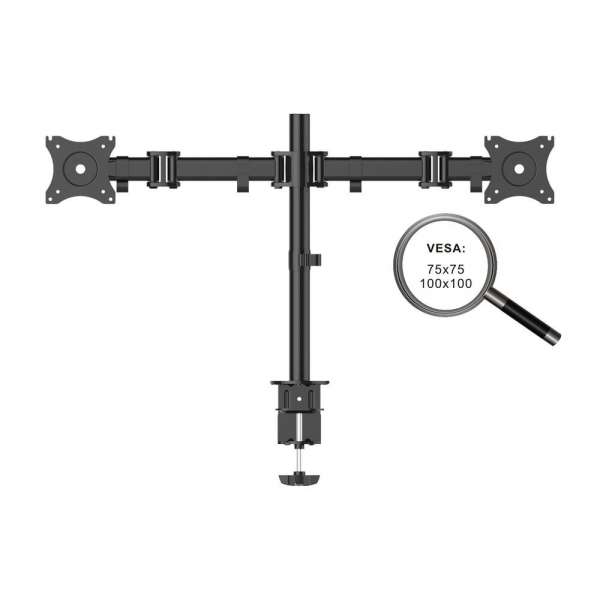

With VESA 75x75, 100x100 and 8kg load capacity per arm, the bracket can be used universally.
|Each arm: Tilt 45° up to -45°, swivel 90° up to -90° (relying on screen width), rotatable 360°|
|Arm length: each 428mm, height tube 450mm, clamp width 10mm - 88mm|
|Load capacity max. 8kg / arm|
|Supports VESA 75x75, 100x100 for displays wih a diagonal of 33cm (13") to 69cm (27")|
|Product 1. Net Weight in Kg||4,90|
|Product 1. Gross Weight in Kg||5,00|
|Product 1. Length in cm||72,6|
|Product 1. Width in cm||55|
|Product 1. Height in cm||11,6|
|Packaging 1. Length in cm||47,3|
|Packaging 1. Width in cm||15|
|Packaging 1. Height in cm||13|
|Master Carton Length in cm||49,5|
|Master Carton Width in cm||31,5|
|Master Carton Height in cm||27,5|
|Europeans Customs Tariff Nr.||73269098900|
|Country of Origin||China|
|Master Packaging Unit (pcs)||4|
|Recommended display sized (from-to)||13-27" (33-69cm)|
|Max. load capacity||2x 8kg|
|Distance to the wall||428mm|
|Tilting||45° / -45°|
|Swivel||90° / -90°|
|Warranty||3 Years Manufacturer's Warranty|
|1x PM-OFFICE-02 Schreibtischhalterung|
|1x Set of Screws|
|1x Installation Manual|
Dokumente "PureMounts® Desk Mount - 2 Screen"
