PT-HDBT-1020HU-TX

PureTools - HDBaseT 3.0 HDMI and USB Transmitter - HDBaseT 3.0 4K (60Hz 4:4:4) HDMI and USB2.0 Data

PureTools - HDBaseT 3.0 HDMI and USB Transmitter - HDBaseT 3.0 4K (60Hz 4:4:4) HDMI and USB2.0 Data
Features
  • 18Gbps (4K 60Hz 4:4:4) and HDCP 2.2 support
  • HDBaseT V3.0 for full bandwidth video and data transmission up to 100m at 4k and 1080p (4K 60Hz 4:4:4 limited to 80m, 4K 60Hz 4:2:0 100m)

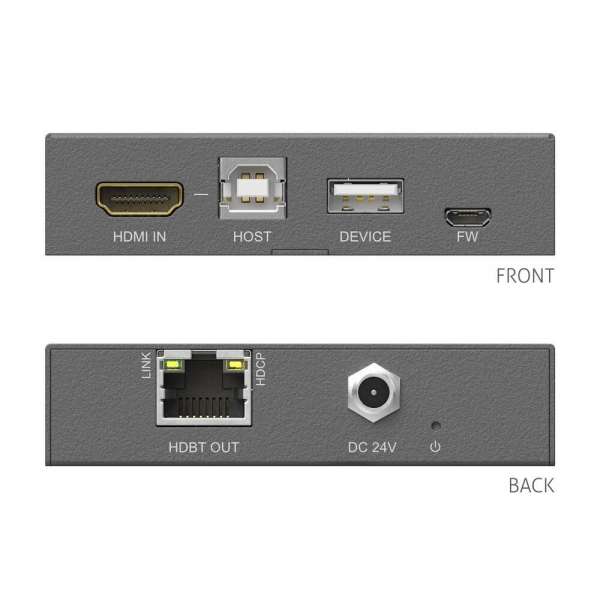

  • HDMI port and USB-B host for video and USB2.0/1.1 data, USB-A port for speakerphone
  • Bi-directional 24-48V PoC
  • Professional metal housing with mounting
PureTools HDBaseT 3.0 HDMI and USB2.0 Transmitter
The PT-HDBT-1020HU-TX is an uncompressed 18G HDBaseT3.0 transmitter that allows an HDMI Video signal plus USB2.0 data to be transmitted over distances up to 100m at 4K@60Hz/1080p@60Hz via CAT6A cable. The transmitter features one HDMI port and one USB-B host port, for combined video and USB2.0/1.1 data, together with one HDBT output. It provides an ideal AV interface for remotely connecting to a standard PC. Use in conjunction with PT-HDBT-1020HU-RX for HDMI and USB connectivity at the receiver side, or with PT-HDBT-1020C-RX for USB-C direct data and video connections.
Adaptable HDBaseT 3.0 KVM Extension System - HDMI and USB Transmitter
PureTools HDBaseT 3.0 HDMI and USB Transmitter - 18Gbps (4K 60Hz 4:4:4) and HDCP 2.2 support , HDBaseT V3.0 for full bandwidth Video and Data transmission up to 100m at 4K and 1080p, HDMI port and USB-B host for video and USB2.0/1.1 data, USB-A port for speakerphone, Bi-directional 24-48V PoC, professional metal housing with mounting
Features
18Gbps (4K 60Hz 4:4:4) and HDCP 2.2 support
HDBaseT V3.0 for full bandwidth video and data transmission up to 100m at 4k and 1080p (4K 60Hz 4:4:4 limited to 80m, 4K 60Hz 4:2:0 100m)
HDMI port and USB-B host for video and USB2.0/1.1 data, USB-A port for speakerphone
Bi-directional 24-48V PoC
Professional metal housing with mounting
Logistics Information
Product 1. Net Weight in Kg 0,44
Product 1. Gross Weight in Kg 0,49
Product 1. Length in cm 12
Product 1. Width in cm 9
Product 1. Height in cm 2,2
Packaging 1. Length in cm 20
Packaging 1. Width in cm 17
Packaging 1. Height in cm 6
Product Information
Europeans Customs Tariff Nr. 85176200000
Country of Origin China
Packaging Material Plastic/Paper
VPE Information
Master Packaging Unit (pcs) 1
