PT-C-HDAEDE

4K 18Gbps HDMI Audio De-Embedder and Embedder

Features
  • Audio de-embedding and embedding with HDMI and D/A inputs / outputs
  • Supports 18Gbps for resolutions up to 4K UltraHD 60Hz
  • Complex audio manipulation incl. MIC/LINE mixing and HDMI integration
  • 48V phantom power, digital / analog audio de-embedding
  • Downscaling (4K - 1080p), pass-through for ARC, formats up to DTS-X / Atmos
4K 18Gbps HDMI Audio De-Embedder and Embedder
The PT-C-HDAEDE is an HDMI 2.0 Audio De-Embedder and Embedder which allows for a multitude of complex audio manipulations and therefore is suitable for private home cinema applications as well as professional high-end installations. It supports the full HDMI 2.0 bandwidth of 18Gbps at the HDMI input / output and can output the HDMI audio signal in digital as well as analog format. At the same time, an analog audio signal (Line / Mic / Mic with 48V phantom power) can be embedded and mixed with the HDMI audio, or replace it completely. ARC signals are also transmitted in the reverse direction via HDMI. The integrated downscaler converts 4K resolutions down to FullHD / 1080p, thus making the system compatible with older display devices.
PureTools - Professional Electronic Products for Commercial Applications

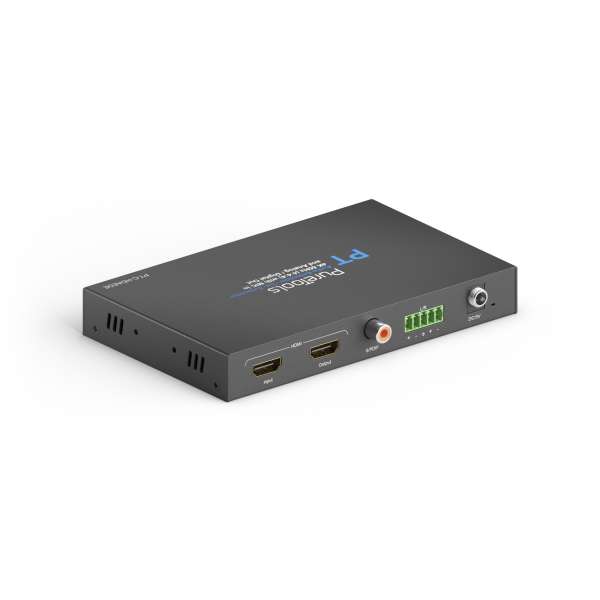

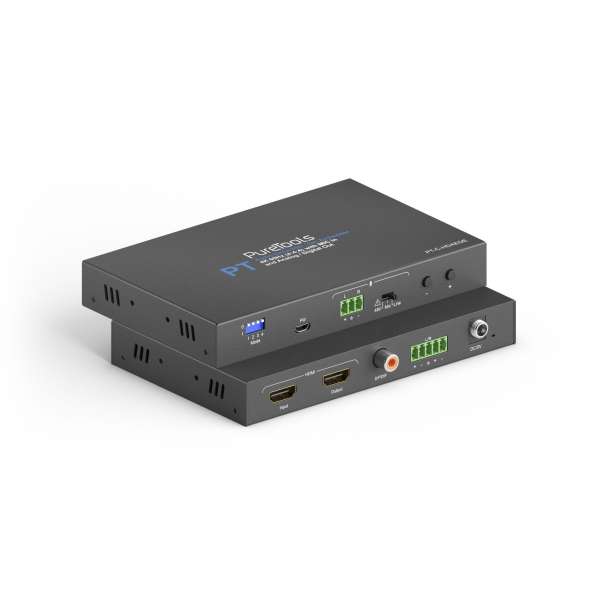

The PT-C-HDAEDE 4K 18Gbps HDMI Audio De-Embedder and Embedder allows for complex audio manipulations and thus opens up completely new installation concepts. It is equipped with one HDMI input and one HDMI output including HDMI ARC support as well as connectors for digital (S/PDIF coaxial, max. 96KHz / 16Mbps) or analog (bal., 5-pin Phoenix) audio de-embedding and one analogue connector (3-pin Phoenix) for separate audio embedding. The HDMI connections support the full HDMI v2.0 bandwidth up to 18Gbps for resolutions up to 4K@60 (4:4:4). All standards of the HDMI v2.0 specification are supported, such as HDR, DeepColor 12bit and HDCP 2.2 as well as digital audio formats up to LPCM 7.1 / 24bit / 96 kHz, Dolby Atmos and DTS-X.
The PT-C-HDAEDE's ability to freely combine the various audio input and output signals allows it to be used as a simple audio de-embedder or embedder, but also as a voiceover unit, microphone preamp or audio mixer in more complex situations.

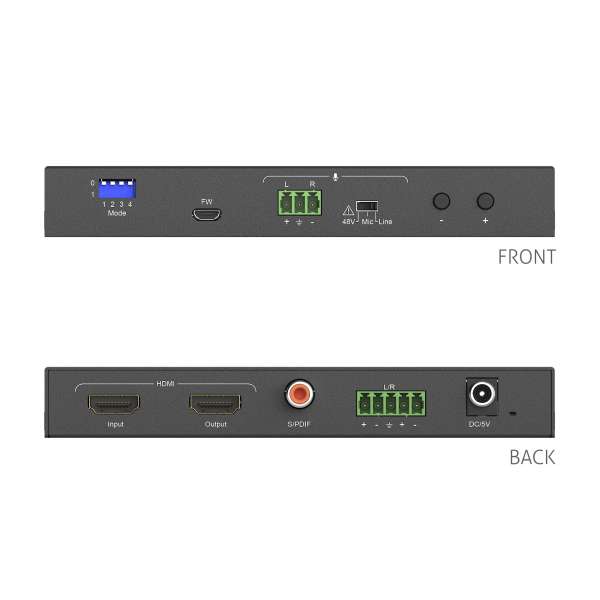

Four DIP switches on the front of the unit control the entire mixing behaviour of the PT-C-HDAEDE. A total of 16 switch combinations can set just about any conceivable output format configuration available. The four DIP switches control the following settings, in this order: 1. enable / disable analog audio input, 2. enable / disable HDMI input audio, 3. HDMI output audio configuration, 4. S/PDIF output audio configuration. An exact description of the procedure can be found in the detailed manual.
Also on the front panel there a toggle switch with three possible positions can be found which determines the format of the analog audio input. Here it is possible to choose between a "Line", "Mic" or a "Mic 48V" format. The latter setting is suitable for integrating a (condenser) microphone that is supplied with 48V phantom power.
HDMI input and output both support the reverse transmission of an audio signal via ARC.
The integrated HDMI downscaler can rescale an incoming 4K signal to FullHD / 1080p, making the PT-C-HDAEDE compatible with both modern and older display devices.
The Micro USB port allows for easy firmware updates.
Two additional buttons on the front panel control the volume of the analog audio input in a range from -18dB to +24dB in 1dB steps.
The 5V / 1A power connector on the back of the unit is screwable, making it suitable for professional installations. A power LED also indicates the operating status.
The compact housing with an overall size of 151 x 93.5 x 21 mm takes up little space during installation and weighs just 360g. This means that the PT-C-HDAEDE can be installed and operated invisibly and in the smallest of spaces, e.g. in an AV rack in a server room or in a lowboard.

PureTools - Professional Electronic Products for Commercial Applications
The PureTools product line is made up of high-quality audio / video electronic products such as matrices, switchers, splitters, converters and extenders for commercial AV installations and applications. The product line's focus is on the transmission of digital signals such as HDMI, DisplayPort, DVI, USB, HDBaseT and many more. Dependable technology designed according to the latest standards and combined with intelligent innovations, make the PureTools product line perfect for professional installers, as well as guaranteeing an "Install and Forget" experience thanks to top grade performance.
Features
Audio de-embedding and embedding with HDMI and D/A inputs / outputs
Supports 18Gbps for resolutions up to 4K UltraHD 60Hz
Complex audio manipulation incl. MIC/LINE mixing and HDMI integration
48V phantom power, digital / analog audio de-embedding
Downscaling (4K - 1080p), pass-through for ARC, formats up to DTS-X / Atmos
Logistics Information
Product 1. Net Weight in Kg 0,44
Product 1. Gross Weight in Kg 0,47
Product 1. Length in cm 15
Product 1. Width in cm 105
Product 1. Height in cm 2,3
Packaging 1. Length in cm 21,5
Packaging 1. Width in cm 18,5
Packaging 1. Height in cm 6,3
Master Carton Length in cm 44
Master Carton Width in cm 38
Master Carton Height in cm 32
Product Information
Europeans Customs Tariff Nr. 85437090990
Country of Origin China
Packaging Material Plastic/Paper
VPE Information
Master Packaging Unit (pcs) 20
Connections
Input connector(s) 1x HDMI, 1x MIC/LINE (3 pin Phoenix)
Output connector(s) 1x HDMI, 1x Digital Audio (RCA), 1x Analog Bal. Stereo (5 pin Phoenix)
Power connector(s) DC 5V / 1A, screwable
Control connector(s) 1x Micro USB (Firmware)
Electric signal
Maximum data rate 18Gbps
HDCP Yes
CEC Yes
EDID Yes
Mechanical
Power supply Max. 5W
Power consumption DC 5V / 1A
Operating temperature -5~ 40℃
Humidity 5% ~ 90%
Enclosure Steel
Dimensions 151 x 93.5 x 21 mm
Signal transmission
Supported standards HDMI 2.0, HDCP 2.2
Supported Colors HDMI v2.0 compatible
Supported audio standards LPCM up to 7.1 / 24bit / 96kHz, Dolby Atmos, DTS-X, ARC Pass-Through
Maximum resolution 4K@60Hz (4:4:4)
Further standards HDR, DeepColor 12bit, CEC, ARC
Weiteres
Safety CE, RoHS, REACH
Colour black
Delivery Content
1x PT-C-HDAEDE 4K 18Gbps HDMI Audio De-Embedder and Embedder
1x 3-pin Phoenix Connector, 1x 5-pin Phoenix Connector
1x Mounting Set
1x Power Adapter (5V, 1A)
1x User Manual
