PT-HDBT-220WP

4K 18Gbps Multiformat HDBaseT Wallplate Extender Set

Features
  • Transmission of HDMI and USB-C via HDBaseT up to 40m (4K), 70m (1080p)
  • Supports 18Gbps for resolutions up to 4K UltraHD 60Hz (HDMI) / 30Hz (USB-C)
  • Bidirectional PoC, pass-through for IR and RS232, EDID management
  • 3 USB-A v2.0 KVM ports on receiver, USB-C supporting data and AV transmission
  • Wallplate for installation in 2-gang wall socket
4K 18Gbps Multiformat HDBaseT Wallplate Extender Set
The Multiformat via HDBaseT Wallplate Extender Set PT-HDBT-220WP consists of a wallplate transmitter for integration into a 2-gang wall socket as well as a stand-alone receiver. It transmits HDMI 2.0 signals with full 18Gbps bandwidth up to 4K@60Hz (4:4:4) including HDCP 2.2 / 1.4 2 as well as USB-C signals up to 4K@30Hz (4:4:4). The maximum transmission distance is 40 meters for 4K@60 (4:4:4) resolutions and 70 meters for FulllHD / 1080p@60 resolutions. The input signals can be automatically detected and switched or manually switched by pressing a button, including CEC support. Three USB-A KVM ports are available on the receiver to transfer USB 2.0 signals via HDBaseT to the USB-B port of the transmitter, to which a PC is connected for remote operation. The system allows bidirectional transmission (pass-through) of PoH / PoC up to 24V as well as IR control signals, each with separate In/Out ports on TX and RX. Both devices can be accessed in three modes via RS232.
PureTools - Professional Electronic Products for Commercial Applications

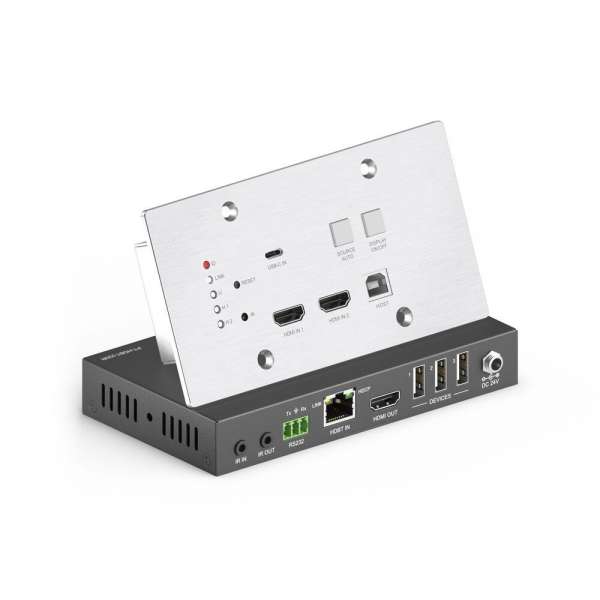

The PT-HDBT-220WP 4K Multiformat HDBaseT Wallplate Extender Set includes an HDMI and USB-C wallplate transmitter / switcher (TX) for direct integration into a 2-gang wall socket and a stand-alone receiver (RX) to transmit incoming AV signals via HDBaseT. Both devices are connected with a conventional Cat. Cable (Cat.5e / Cat.6a) over distances up to 40 meters for 4K resolutions with max. 60Hz at 4:4:4 colour subsampling or up to 70 meters for 2K FullHD / 1080p resolutions with max. 60Hz at 4:4:4 colour subsampling. The USB-C input accepts AV streams via USB-C alt mode as well as USB data signals.

The immediate use of a fully integrated wall connection panel means less cabling effort and requires less additional hardware, such as separate wall or desk connection panels.

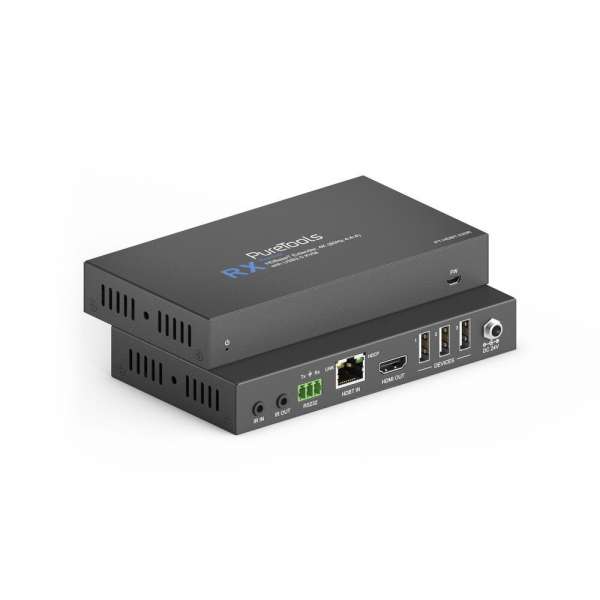

Three USB-A ports are provided on the receiver for integration of USB 2.0 devices. Their signals are transmitted via HDBaseT to the USB-B port on the wallplate transmitter, to which the receiving "host" PC is then connected. For example, USB storage devices can be connected at the RX site and easily accessed from the respective host PC at the workstation or presentation site. It is also possible to connect KVM devices such as keyboard, mouse and webcam for use with remote PCs. "Hi-Speed" USB 2.0 is supported, which enables the integration of older and newer devices. Devices with USB 3.x or higher therefore transmit with a maximum of 480Mbps USB 2.0 Hi-Speed data rate.

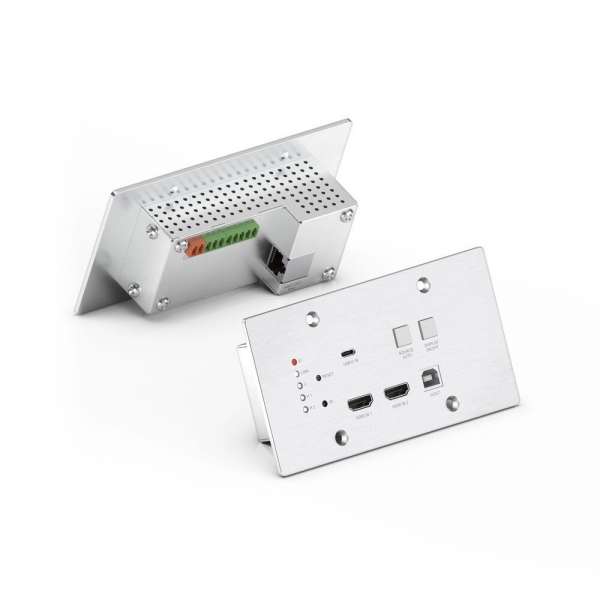

Two push buttons are available on the wallplate transmitter for system control. The "Display ON/OFF" push button is used for remote display shutdown and can be programmed via IR learning or RS232. The HDMI / USB-C input signals can be automatically detected and switched or manually switched via "Source-Auto" button, including CEC support.
The system supports bidirectional PoC or PoH power up to 24V. This means that only one of the two devices needs to be powered so that the other device is also supplied via the HDBaseT Cat connection. This saves on power supplies and keeps things tidy, thanks to less cabling in one of the two locations.
Both devices feature an IR input as well as an IR output. This means that the connected display device can be controlled from the side of the source device and vice versa.
Both transmitter and receiver also include a 3-pin Phoenix connector for control via RS232 in 3 modes: local control at the TX, pass-through from the TX through the RX to the display device, or pass-through from the RX to the TX.
The 12V power connector on the receiver is lockable with a screw lock.
The wallplate transmitter also features several status LEDs, indicating the operating status, HDBaseT connection and the active input. In addition, the wallplate transmitter has a recessed "Reset" push button and an integrated IR eye.

PureTools - Professional Electronic Products for Commercial Applications
The PureTools product line is made up of high-quality audio / video electronic products such as matrices, switchers, splitters, converters and extenders for commercial AV installations and applications. The product lines focus is on the transmission of digital signals such as HDMI, DisplayPort, DVI, USB, HDBaseT and many more. Dependable technology designed according to the latest standards and combined with intelligent innovations, make the PureTools product line perfect for professional installers, as well as guaranteeing an "Install and Forget" experience thanks to top grade performance.
Features
Transmission of HDMI and USB-C via HDBaseT up to 40m (4K), 70m (1080p)
Supports 18Gbps for resolutions up to 4K UltraHD 60Hz (HDMI) / 30Hz (USB-C)
Bidirectional PoC, pass-through for IR and RS232, EDID management
3 USB-A v2.0 KVM ports on receiver, USB-C supporting data and AV transmission
Wallplate for installation in 2-gang wall socket
Logistics Information
Product 1. Net Weight in Kg 0,72
Product 1. Gross Weight in Kg 0,79
Product 1. Length in cm 15,2
Product 1. Width in cm 8,2
Product 1. Height in cm 6
Packaging 1. Length in cm 29,5
Packaging 1. Width in cm 19,5
Packaging 1. Height in cm 8
Master Carton Length in cm 44
Master Carton Width in cm 33
Master Carton Height in cm 56
Product Information
Europeans Customs Tariff Nr. 85176200000
Country of Origin China
Packaging Material Platic/Paper
VPE Information
Master Packaging Unit (pcs) 14
Connections
Input connector(s) TX: 2x HDMI-A, 1x USB-C | RX: 1x HDBaseT (RJ45)
Output connector(s) TX: 1x HDBaseT (RJ45) | RX: 1x HDMI-A
Power connector(s) DC 24V, 1.25A
Control connector(s) TX: 1x USB-B (Host), 1x IR In (3-pin Phoenix), 1x IR Out (2-pin Phoenix), 1x RS232 (3-pin Phoenix),
Electric signal
HDCP Yes
CEC Yes
EDID Yes
Mechanical
Power supply Max. 20W total (TX / RX)
Power consumption DC 24V / 1.25A or PoC
Operating temperature -25~ 70℃
Storage temperature 10% ~ 90%
Humidity TX: Aluminium | RX:
Enclosure TX: 146 x 86 x 42 mm
Signal transmission
Supported standards HDMI 2.0, HDCP 2.X / 1.X
Transmission modes HDBaseT
Supported Colors HDMI v2.0 / USB-C compatible
Supported audio standards HDMI v2.0 / USB-C compatible
Maximum resolution Up to 4K@60Hz (4:4:4) via HDMI, 4K@30Hz (4:4:4) via USB-C
Further standards USB 2.0
Weiteres
Safety CE, FCC, RoHS, REACH
Colour TX: Alu | RX: black
Delivery Content
1x PT-HDBT-220WP Wallplate Transmitter & Switcher / Receiver Set
2x Mounting Ears with 2 Screws for RX
3x 3-pin Phoenix Terminal Blocks, 1x 2-pin Phoenix Terminal Block
1x Power Adapter (24V, 1.25A)
1x User Manual
