- USB 3.2 (Gen 1x1) – 5Gbps data transmission
- Gold plated precision contacts
- USB-A male to USB-A male
- High purity copper conductors and triple shielding
- Power transmission with max. power output 3A / 5V / 15W

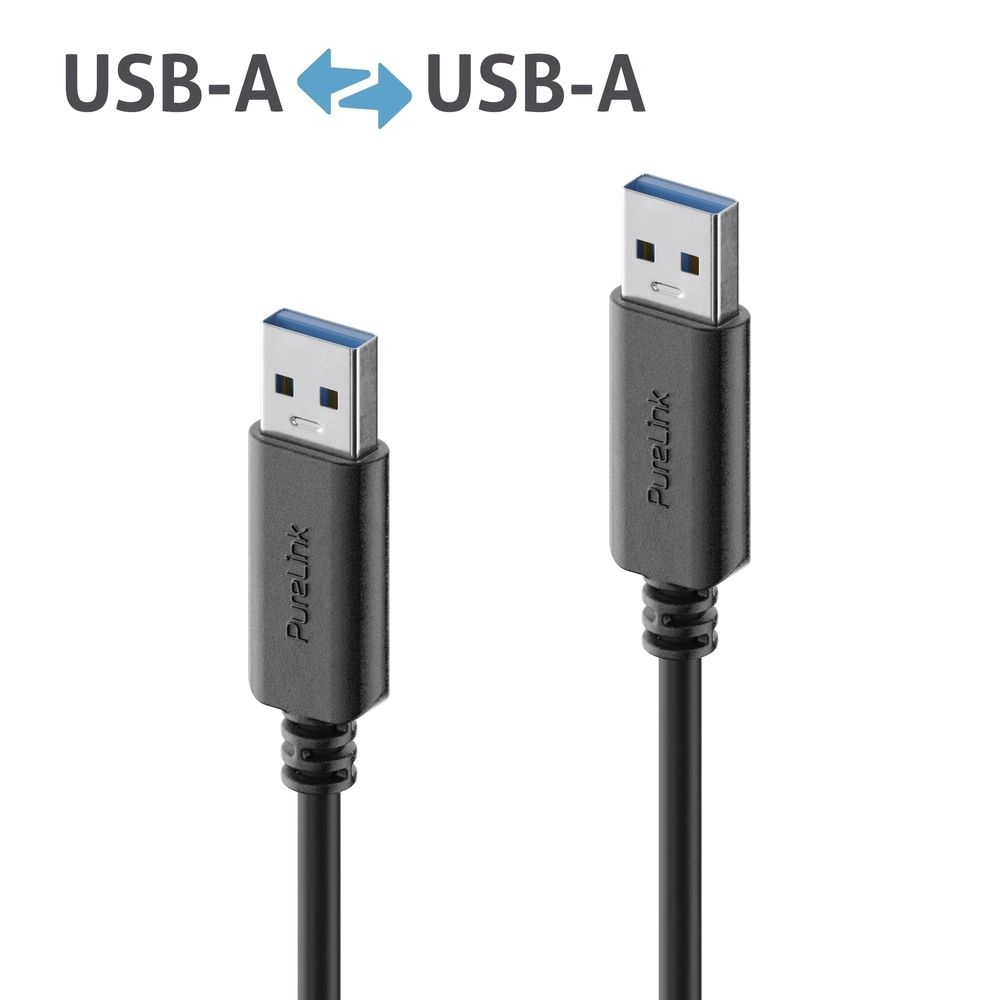

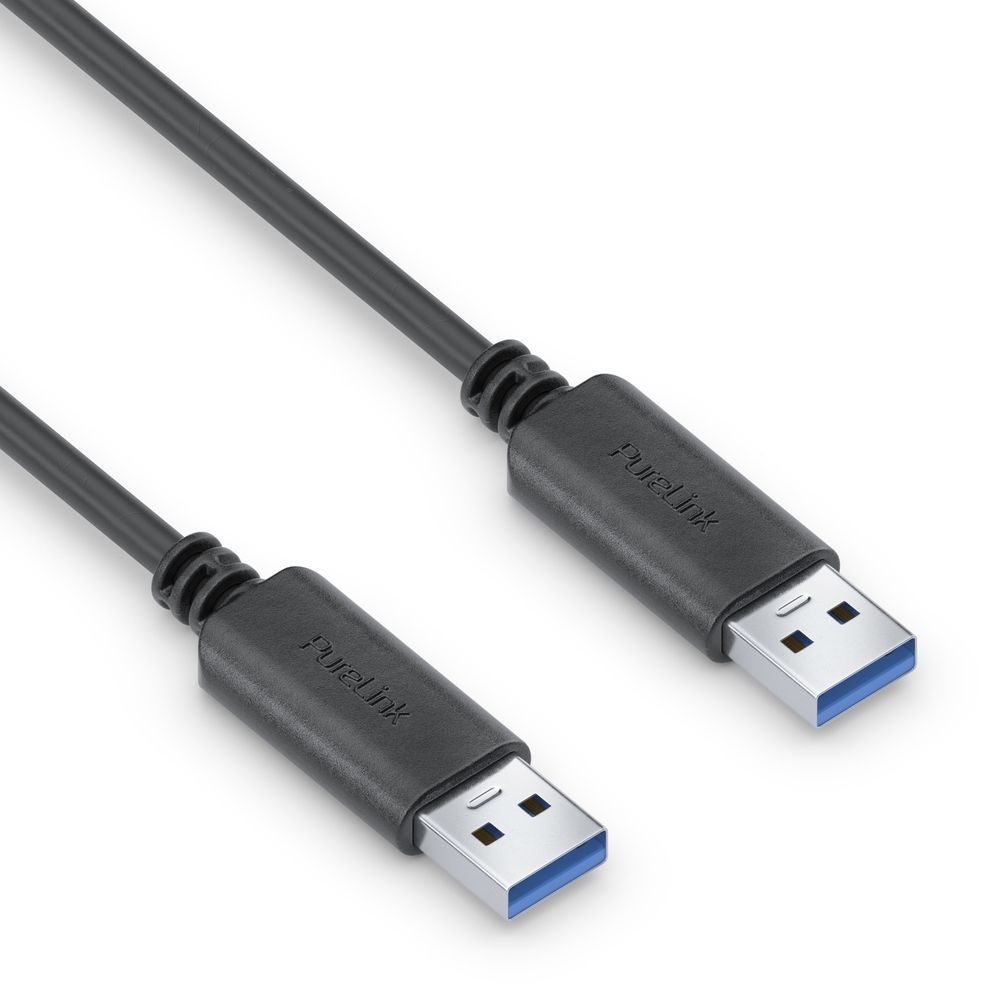

iSeries IS2401 Premium USB 3.2 (Gen 1) USB-A Cable
The IS2401-005, included in PureLink's iSeries is a 0.50 meter long premium USB-A cable that connects two USB-A 3.2 (Gen1) compliant devices with a maximum data transfer rate of 5Gbps. The cable features nickel-plated USB-A connectors on both sides with gold-plated precision contacts as well as triple shielded, high-purity copper conductors. The cable can also be used as a power cable for USB-A devices, supporting a max. power output of 3A / 5V / 15W without support for USB Power Delivery.
PureLink iSeries - Cables and Adapters for Apple Devices and More
The iSeries' USB 3.2 cable range IS2400 to IS2611 by PureLink is designed for connecting devices with USB-C and/or USB-A ports. The cables enable data transfer via USB with 5Gbps or 10Gbps and are compliant with the USB 3.2 (Gen1 or Gen2) standard, also called SuperSpeed USB 5Gbps / SuperSpeed USB 10Gbps or formerly SuperSpeed USB / SuperSpeed+ USB. The cables in the range are equipped with USB-C or USB-A connectors on both sides, or with USB-C on one side and a USB-A connector on the other. They are equipped with a nickel-plated housing and gold-plated precision contacts. The USB-C plug is reversible, so there is no need to pay attention to the plug direction. The cables themselves are triple-shielded and equipped with high-purity copper inner conductors. Of course, all cables are backwards compatible with the older USB 2.0 / 1.1 specification.
All cables with USB-C connectors on both sides (IS2500 to IS2511) are equipped with E-Marker and therefore support USB Power Delivery (USB PD) with up to 5A / 20V / 100W. They also feature DisplayPort Alt Mode compatibility and can therefore be used for the transmission of AV streams in addition to data and power, provided that the source and display devices also support the DisplayPort Alt Mode. This mode thus also enables the connection of USB docking stations with multiple USB and separate AV connections, such as HDMI or DisplayPort.
All cables with at least one USB-A connector (IS2400 to IS2411 and IS2600 to IS2611) do not support DisplayPort Alt-Mode or USB Power Delivery but are suitable for a maximum charging power up to 3A / 5V / 15W.
The cable diameter varies depending on the length of the cable. All cables are available in two colour variants. White cables end with the digit "0" in the item number, the black versions with a "1".
The cables in this range at a glance:
IS2400 / IS2401: USB-A to USB-A, USB 3.2 (Gen1), 5 Gbps, 3A / 5V / 15W max. power output
IS2410 / IS2411: USB-A to USB-A, USB 3.2 (Gen2), 10 Gbps, 3A / 5V / 15W max. power output
IS2500 / IS2501: USB-C to USB-C, USB 3.2 (Gen1), 5 Gbps, DP Alt-Mode, E-Marker, USB Power Delivery up to 3A / 20V / 60W
IS2510 / IS2511: USB-C to USB-C, USB 3.2 (Gen2), 10 Gbps, DP Alt-Mode, E-Marker, USB Power Delivery up to 5A / 20V / 100W
IS2600 / IS2601: USB-C to USB-A, USB 3.2 (Gen1), 5 Gbps, 3A / 5V / 15W max. power output
IS2610 / IS2611: USB-C to USB-A, USB 3.2 (Gen2), 10 Gbps, 3A / 5V / 15W max. power output
iSeries - For mini DisplayPort / USB-C Devices such as MacBook, iMac and Mac mini™
The iSeries from PureLink offers a full range of cables and adapters for all common types of AV signals, as well as pure USB-C cables for charging devices and transferring AV and/or data. Connect your USB-C, mini DisplayPort or Thunderbolt enabled Apple device directly to any standard digital or analog display via USB-C, VGA, DVI, HDMI or DisplayPort. Designed with portability in mind, the iSeries is lightweight, compact and easy to carry with you, wherever you go.
|USB 3.2 (Gen 1x1) – 5Gbps data transmission|
|Gold plated precision contacts|
|USB-A male to USB-A male|
|High purity copper conductors and triple shielding|
|Power transmission with max. power output 3A / 5V / 15W|
|Product 1. Net Weight in Kg||0,03|
|Product 1. Gross Weight in Kg||0,03|
|Product 1. Length in cm||8|
|Product 1. Width in cm||9|
|Product 1. Height in cm||1,1|
|Packaging 1. Length in cm||14,5|
|Packaging 1. Width in cm||9|
|Packaging 1. Height in cm||2|
|Master Carton Length in cm||45|
|Master Carton Width in cm||34|
|Master Carton Height in cm||34|
|Europeans Customs Tariff Nr.||85444290900|
|Country of Origin||China|
|Master Packaging Unit (pcs)||120|
|Connector material||PVC, nickel-plated housing|
|Connector 1||USB-A male|
|Connector 2||USB-A male|
|Dimensions Con.1||38,4 x 15,5 x 8,15 mm|
|Dimensions Con.2||38,4 x 15,5 x 8,15 mm|
|Maximum data rate||Gen 1 - 5Gbps|
|Inner conductor material||Tinned Copper|
|Number of shieldings||3|
|Outer material||Very elastic PVC|
|Operating temperature||Up to 80°C|
|Transmission modes||Data and power|
|Safety||CE, FCC, ROHS, REACH|
|further Certificates||VW-1, UL2725|
|Warranty||3 Years Manufacturer's Warranty|
|1x IS2401-005 Premium USB 3.2 (Gen 1) USB-A Cable - 0.50m, black|
Dokumente "Premium USB v3.2 USB-A Cable – 0.50m, Black"
