USB v3.2 USB-A AOC Fiber Optic Cable – 40.00m
- USB 3.2 (Gen 2x1) – 10Gbps data transmission
- Gold plated precision contacts
- USB-A male to USB-A male, full-metal housing
- Hybrid cable, bidirectional data transfer
- With EMI resistance, low attenuation, no external power supply required

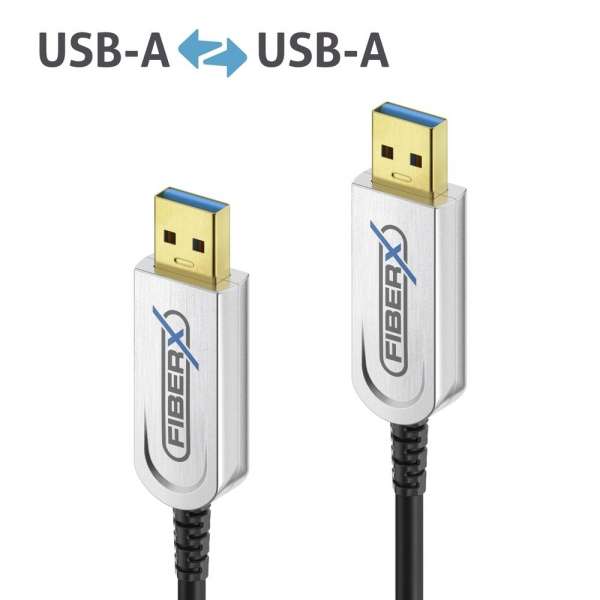

FiberX FX-I540 USB-A AOC Fiber Optic Cable
The FX-I540-040 is a 40.00m long AOC hybrid cable with an outer diameter of 4.5mm. It is compliant with the USB 3.1 (Gen2) specification and therefore suitable for data transfer rates of up to 10Gbps. The cable features USB-A connectors with gold plated precision contacts on both sides. Due to its hybrid construction it provides complete shielding against electromagnetic interference and a low attenuation for perfect transmission quality. The cable does not require an external power supply; it is directly powered via the USB port.
FiberX - When Distance, Quality and Bandwidth are Essential
The FX-I540 USB-A cables included in the FiberX series from PureLink are designed for optimal transmission of USB signals over long distances. The hybrid construction, consisting of fiber optic and copper conductors allows significantly longer cable lengths than conventional USB-A copper cables. This is enabled by transmitting the USB data via fiber optics, which are free of electromagnetic influences / interference and is only supplemented by copper wires for the transmission of power. Due to this hybrid design, the cables of this series are available for very long cable runs between 10.00m and 50.00m, all while being able to be used in complex environments.
The cables comply with the USB standard SuperSpeed USB 10Gbps (also called SuperSpeed+ or USB 3.0 / 3.1 / 3.2 Gen2) and are able to transfer data at up to 10Gbps or 900MB per second.
They are not compatible with legacy USB specifications, such as USB 2.0 / 1.1.
The small cable diameter of only 4.5mm allows an extremely tight bending radius of up to 45mm (static) or 90mm (dynamic), which makes them especially relevant for laying / installation in narrow environments, such as the back of a rack.
The USB-A plugs on both sides are equipped with gold-plated precision contacts on the one hand and a nickel-plated plug shell on the other hand. These refinements make the connectors unsusceptible to corrosion and thus guarantee a permanently functioning data transmission.
Due to its hybrid construction, this cable cannot be used for USB Power Delivery profiles. The maximum power transmitted is 5V with 0.9A for a maximum of 4.5W charging potential.
The intended use of this cable is to connect USB huddle cams and/or other USB conference devices, such as webcams or digital conference phones with the operating hardware located far away, e.g. in a separate rack room. These long distances can now be bypassed effortlessly and in combination with the AV connection.
The AV industry continues to push for greater bandwidth, faster speeds and a lossless signal quality over ever increasing distances. Traditional copper cabling is becoming less reliable or inadequate for these long ranges. The FiberX product line has long been setting standards as a leading brand for optical fiber solutions.
By combining different optical transmission standards with cutting-edge technology, FiberX ensures that existing AV infrastructures continue to meet the highest standards. In addition, the high fiber quality of FiberX products features tighter bending radiuses, enabling faster and easier installations than comparable products.
|USB 3.2 (Gen 2x1) – 10Gbps data transmission|
|Gold plated precision contacts|
|USB-A male to USB-A male, full-metal housing|
|Hybrid cable, bidirectional data transfer|
|With EMI resistance, low attenuation, no external power supply required|
|Product 1. Net Weight in Kg||1,44|
|Product 1. Gross Weight in Kg||1,44|
|Product 1. Length in cm||22|
|Product 1. Width in cm||22|
|Product 1. Height in cm||5|
|Packaging 1. Length in cm||24|
|Packaging 1. Width in cm||22,5|
|Packaging 1. Height in cm||7,5|
|Master Carton Length in cm||46,5|
|Master Carton Width in cm||42,5|
|Master Carton Height in cm||25,5|
|Europeans Customs Tariff Nr.||84718000000|
|Country of Origin||China|
|Master Packaging Unit (pcs)||10|
|Connector material||Full-Metal Zinc Alloy|
|Connector 1||USB-A Male|
|Connector 2||USB-A Male|
|Dimensions Con.1||40 x 18 x 9 mm|
|Dimensions Con.2||40 x 18 x 9 mm|
|Maximum data rate||10Gbps / 900MBps|
|Type||AOC Fiber Optic / Co|
|Inner conductor material||4x OM3 Fiber Optic, 5x Copper Conductors|
|Outer material||PVC / TPU|
|Power supply||< 0.5 W (max.)|
|Power consumption||5V / 0,9A / 4,5W via|
|Humidity||10% ~ 80%|
|Supported standards||SuperSpeed USB 10Gbps (SuperSpeed+ or USB 3.0 / 3.1 / 3.2 Gen2)|
|Transmission modes||Data over Fiber, Power over Copper|
|Safety||CE, FCC, ROHS, UL13|
|EMI / EMC||100% free of EMI|
|Warranty||3 Years Manufacturer's Warranty|
