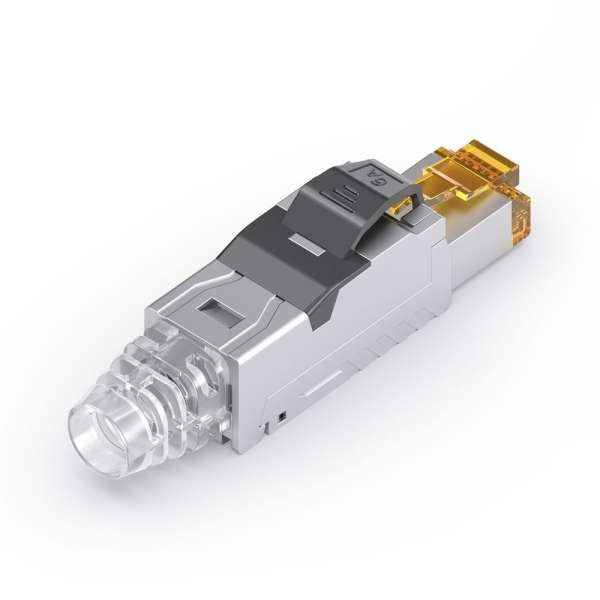

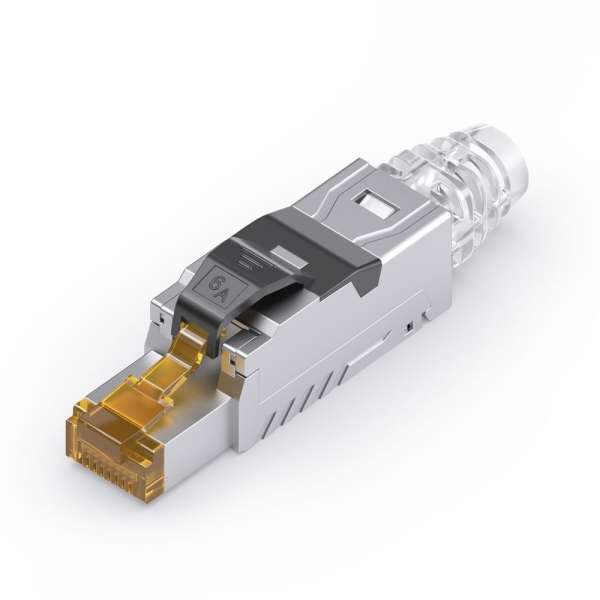

- Cat.6a with up to 500MHz for 10GBase-T Ethernet and HDBaseT
- 360° shielded connection, tool-free assembly
- RJ45 male to cable connector, “Click & Fit” mechanism
- For AWG23 to AWG26 twisted pair patch cables
- Zinc alloy die-cast housing, gold-plated contacts, field termination without special tool
Each AV infrastructure is unique
AVIT Media technology powered products simplify the distribution of 10 Gigabit Ethernet, IP streaming and point-to-point 4K / UltraHD AV signals. The AVIT Media series features a variety of modular Cat.6a products and is designed to comply with worldwide industrial IT standards as well as to fulfill the requirements of structured cabling. With its forward thinking product standards, the AVIT Media Series surpasses all applicable industry standards, including ANSI/TIA-568-C.2 and ISO/IEC 11801 Ed 2.2.
Solutions for A/V via Cat. signal transmissions
With the advance in virtualization of LAN and SAN infrastructure, the boundaries of cabling industry are being pushed further out. Based on good understanding of today's vital business and technology challenges and how they impact data centers, AVIT Media offers the best-of-class physical infrastructure solutions. It is a set of complementary network copper technologies to ensure better network performance, systems reliability, energy efficiency and more flexibility for all kinds of infrastructure. AVIT Media products provide the extra advantage of performance and stability, a to be assured that the network you deploy today can carry you into the future.
AVIT Media products acquire the advantage of being engineered in one of the world's hottest spots for high-end electronics and information technology. Companies around the world rely on the high quality of components developed and designed to maintain their own standards of quality and reliability. Industry specialists know that there is no better source for electronic components.
- High-bandwidth, shielded RJ45 CAT 6A connector

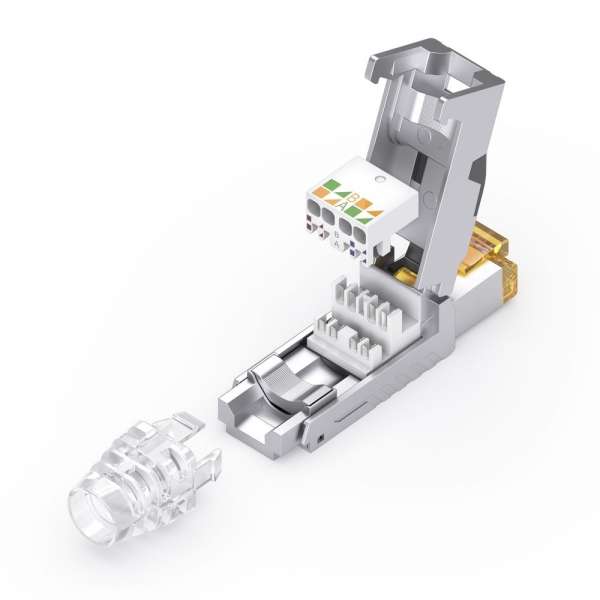

- Click & Fit - Field assembly without special tool requirements
- For use with AWG23 to AWG26 twisted-pair cables
- Quick and reliable field-termination
- Perfect for use in on-site locations
|Cat.6a with up to 500MHz for 10GBase-T Ethernet and HDBaseT|
|360° shielded connection, tool-free assembly|
|RJ45 male to cable connector, “Click & Fit” mechanism|
|For AWG23 to AWG26 twisted pair patch cables|
|Zinc alloy die-cast housing, gold-plated contacts, field termination without special tool|
|Product 1. Net Weight in Kg||0,02|
|Product 1. Gross Weight in Kg||0,02|
|Product 1. Length in cm||4,8|
|Product 1. Width in cm||1,4|
|Product 1. Height in cm||1,9|
|Packaging 1. Length in cm||12|
|Packaging 1. Width in cm||8|
|Packaging 1. Height in cm||0,1|
|Master Carton Length in cm||49|
|Master Carton Width in cm||40|
|Master Carton Height in cm||27|
|Europeans Customs Tariff Nr.||85366990990|
|Country of Origin||China|
|Master Packaging Unit (pcs)||500|
|Secondary Packaging Unit (pcs)||50|
