Features
  • HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz
  • Gold plated precision contacts
  • mini HDMI-C male to HDMI-A female

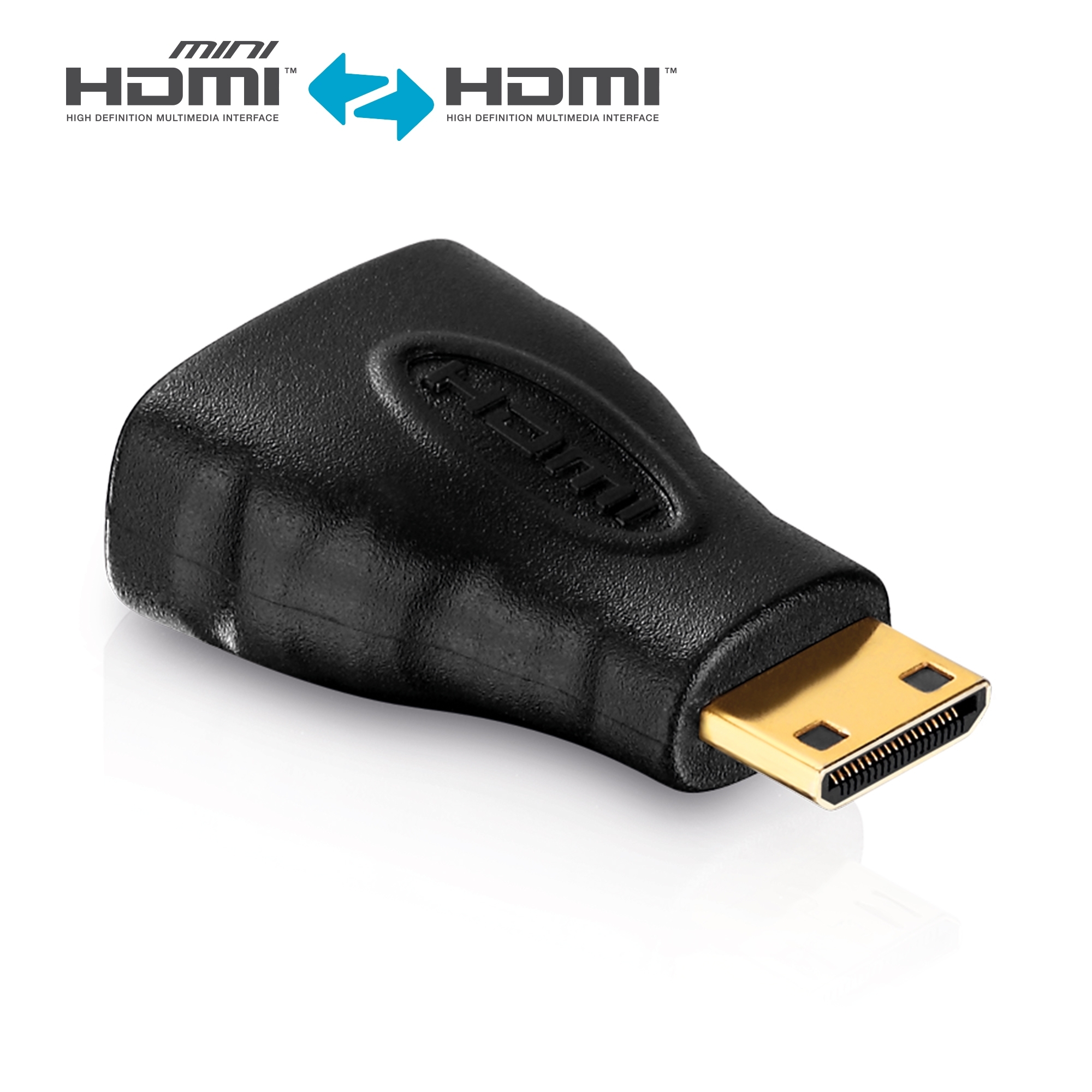

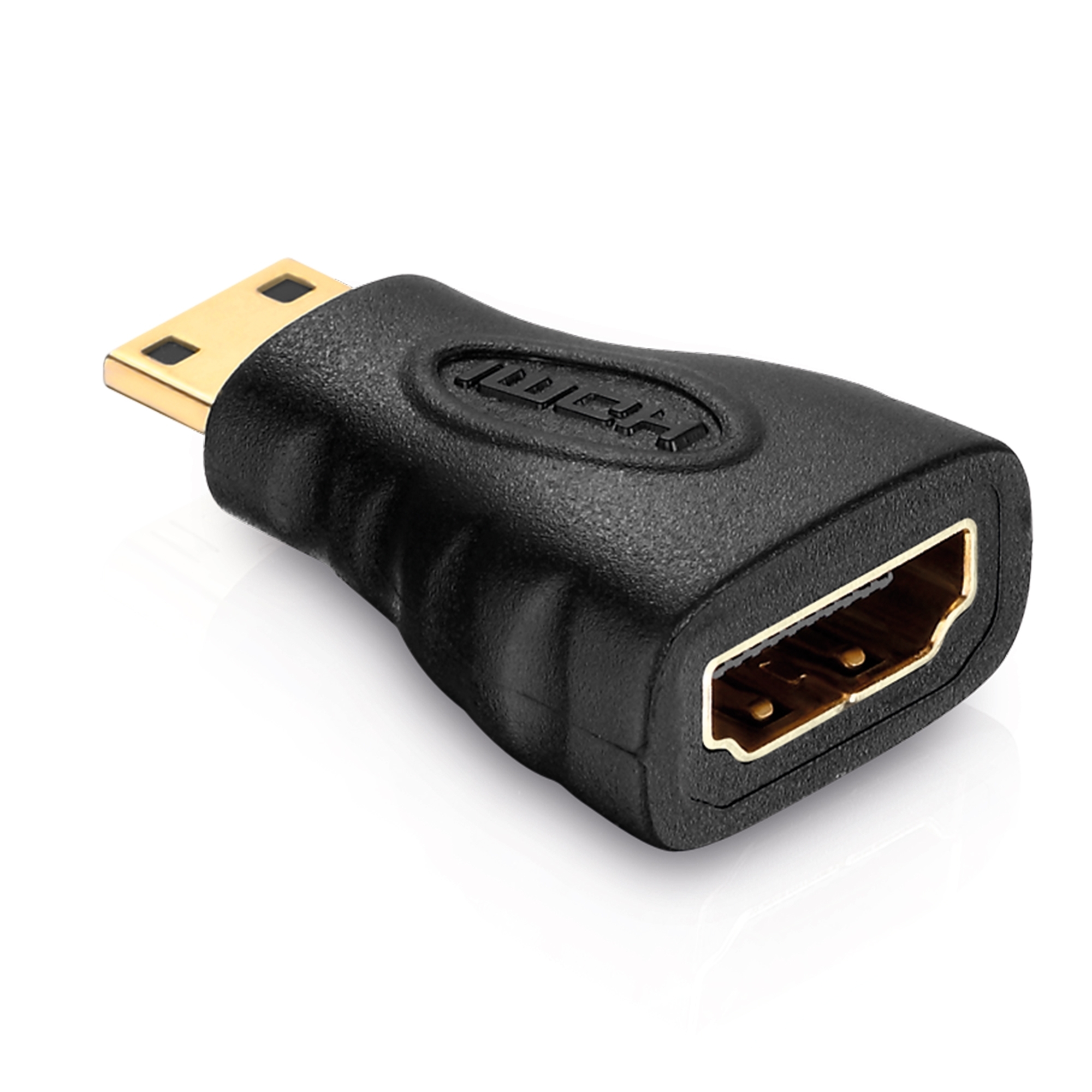

PI055 - High Speed HDMI to Mini HDMI Adapter
From HDMI-A to HDMI-C with High Speed - made possible with this PI055 adapter!
The PI055 is a High Speed adapter which converts the signal from HDMI-A (socket) to Mini HDMI-C (plug). It is equipped with everything needed for professional installations: Ethernet channel (HEAC) and ARC, as well as the proven Secure-Lock-System™, it offers perfect reliability as well as custom-fit and gold-plated plugs for a durable and undisturbed usage without loss of quality.
BENCHMARK FOR PROFESSIONAL INSTALLATIONS
High-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts, PureInstall products are a good investment for any field of use.

The Latest Generation
Our PureInstall HDMI adapters comply with the latest HDMI standard - HDMI 2.0 High Speed with Ethernet. They support resolutions up to 4K (4096x2160) and are downward compatible with all former HDMI versions.

Extended Compatibility
The adapter converts HDMI-A signals (input socket) to Mini HDMI-C (plug) and therefore extends the compatibility of screens with Mini HDMI input.

Custom-fit, Durable and Without Losses
The highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality.

HDMI Ethernet Channel and Audio Return Channel
The Ethernet channel (HEAC) within the HDMI cable is a new feature of the HDMI 1.4 standard. With this channel within the cable, you can integrate IP-based entertainment devices such as your TV, set-top-boxes or gaming consoles into your home network, including internet or IP-based services without additional cables. The audio return channel (ARC) eliminates (like the Ethernet channel does), an additional cable within the home cinema system. The ARC sends the digital audio signal - via the HDMI cable - back to your AV-receiver. Therefore, there is no more need for a separate connection with a Toslink cable.

For Professional Purposes and Installations
All PureInstall adapters are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the adapters undergo over ten quality tests, making them the most reliable choice on the market.
Features
HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz
Gold plated precision contacts
mini HDMI-C male to HDMI-A female
Logistics Information
Product 1. Net Weight in Kg 0,01
Product 1. Gross Weight in Kg 0,01
Product 1. Length in cm 3,32
Product 1. Width in cm 2,15
Product 1. Height in cm 1,2
Packaging 1. Length in cm 14,3
Packaging 1. Width in cm 8,6
Packaging 1. Height in cm 0,1
Master Carton Length in cm 41
Master Carton Width in cm 30
Master Carton Height in cm 30
Product Information
Europeans Customs Tariff Nr. 85366990990
Country of Origin China
Packaging Material Plastic
VPE Information
Master Packaging Unit (pcs) 600
Secondary Packaging Unit (pcs) 10
Connections
Connector material PVC
Contact material 24 ct. gold plated, long-life design
Connector 1 Mini HDMI Type C male (19pin)
Connector 2 HDMI Type A female (19pin)
Dimensions Con.2 26,9 x 21,7 x 11,8 (mm)
Contacts 24 ct. gold plated, long-life design
Electric signal
Maximum pixel clock / bandwidth 4K / UltraHD / 2160p (4096x2160)
HDCP Yes
CEC Yes
EDID Yes
Cable
Type Adapter
Signal transmission
Supported standards HDMI, Mini HDMI
Transmission modes Digital audio and video signals
Supported Colors 16/24 bit RGB/YUV, Deep Color, x.v.Color™
Supported audio standards ARC, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD
Further standards HDMI Ethernet Channel (HEC), 3D, HDCP, CEC, 4K2K (2160i/p), FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)
Weiteres
Safety CE (incl. RoHS), FCC
Colour black
Warranty Optional 15 Years Manufacturer's Warranty
Delivery Content
1x PI055 HDMI-A socket to HDMI-C plug adapter
