• HDMI version 1.4 for resolutions up to WUXGA / 1920x1200
  • Gold plated precision contacts
  • HDMI-A female to DVI-D Single Link (24+1) female

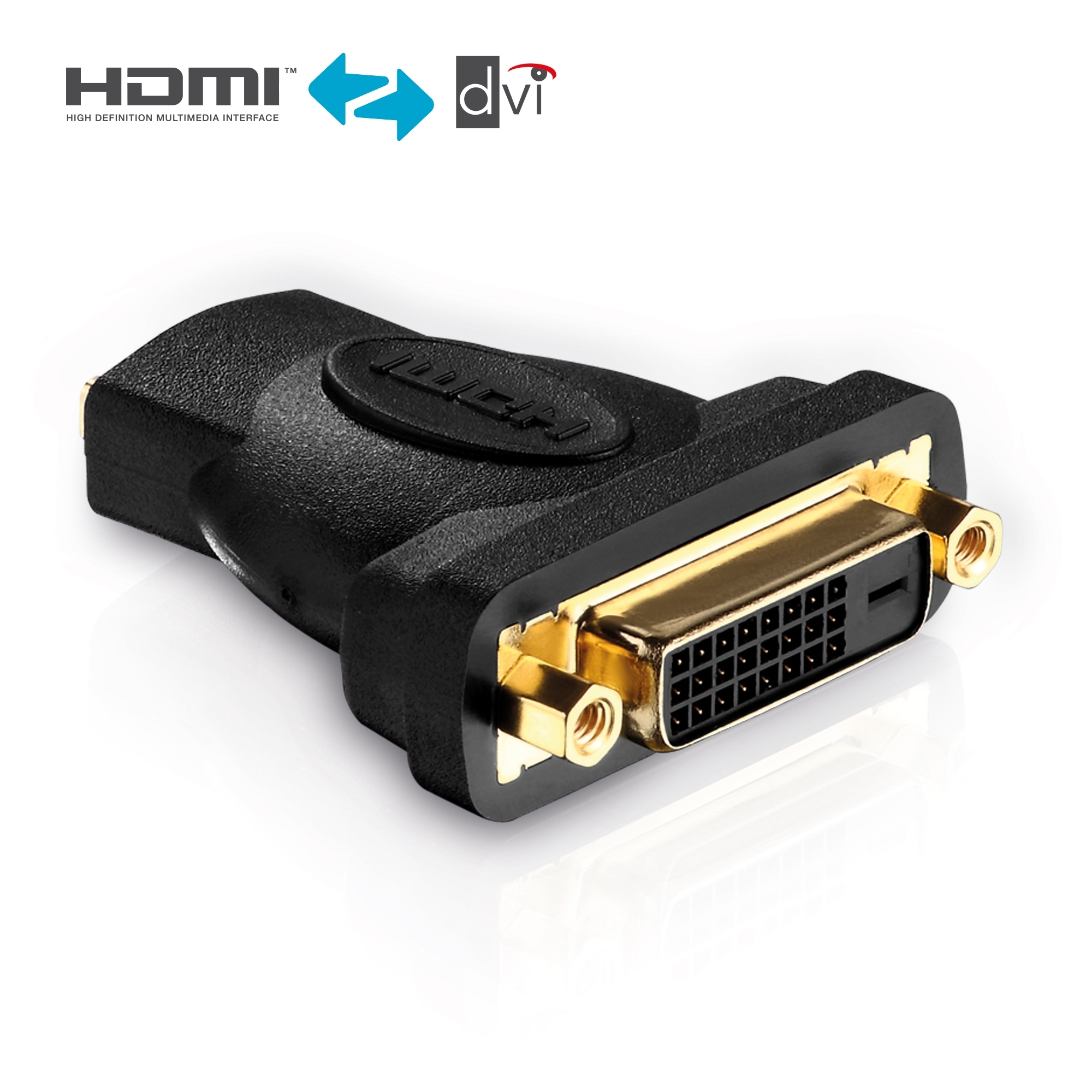

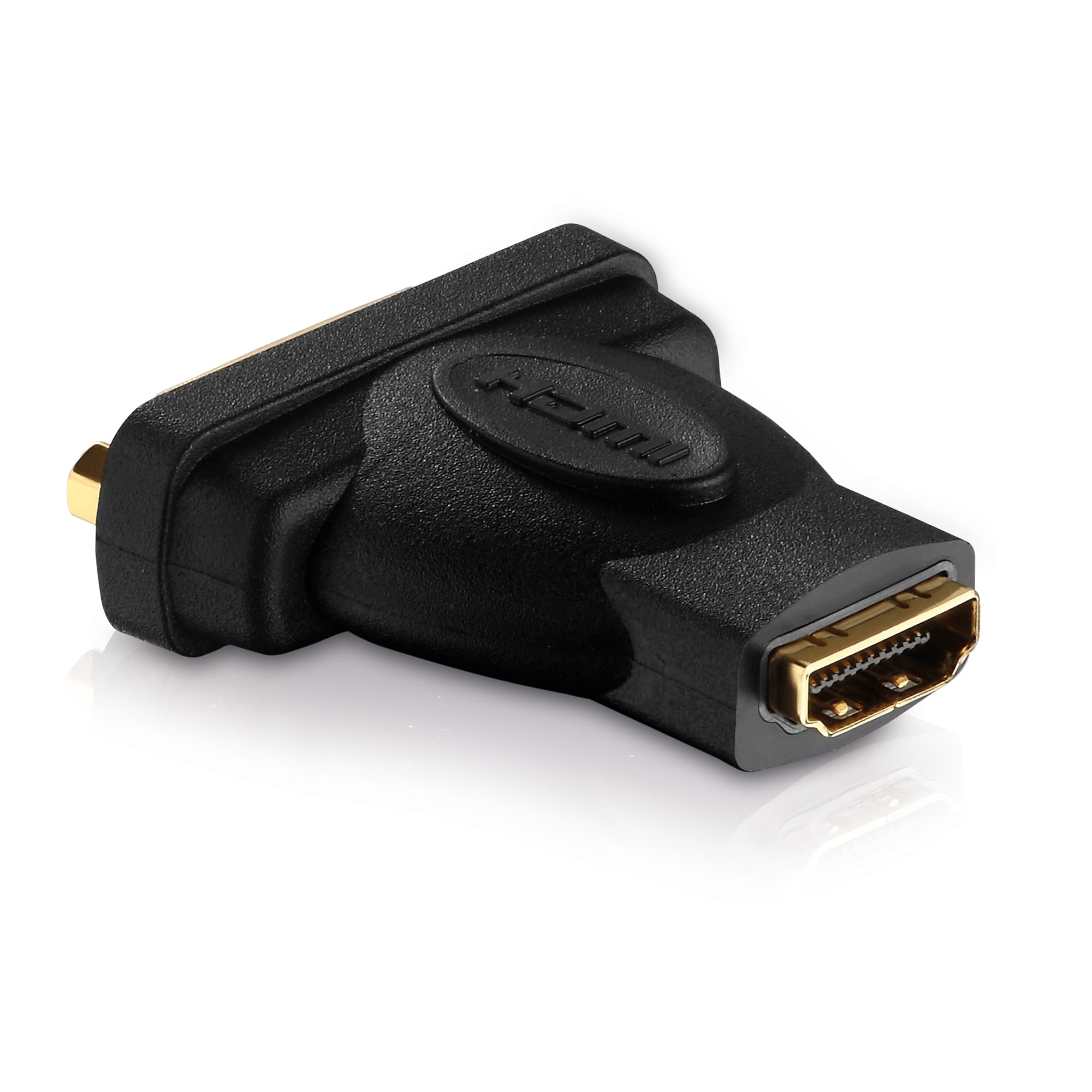

PI045 - High Speed HDMI/DVI Adapter
The PI045 adapter achieves a conversion of the AV-signal to a chosen direction!
This adapter allows for the conversion from HDMI to DVI-D (18+1pin) signals and reverse way, therefore it is suited for bidirectional use. Thanks to its high reliability it is especially suitable for professional installations. Its custom-fit and gold-plated plugs guarantee a durable and undisturbed connection.
High-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts, PureInstall products are a good investment for any field of use.

The Latest Generation
Our PureInstall HDMI to DVI adapters comply with the latest HDMI standard - HDMI High Speed. The adapters included in our PureInstall Series support resolutions up to WUXGA (1920x1200) and are downward compatible with all former HDMI versions.

Two Directions, One Product
Due to its two-sided equipment with sockets, AV-signals can be conversed bidirectionally: meaning in both directions, from HDMI to DVI and in reverse. Usual cables with double-sided plugs can therefore be used without a problem.

Custom-fit, Durable and Without Losses
The highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality.

Space-Saving Installation
The product design has been reduced to a significant minimum, allowing for the use of PureInstall adapters in any space. Even if the space offered is limited as it often is when it comes to professional installations. The security aspect, however, is not left out: The DVI plug is of course equipped with the usual screw locks.

For Professional Purposes and Installations
All PureInstall adapters are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the adapters undergo over ten quality tests, making them the most reliable choice on the market.
HDMI version 1.4 for resolutions up to WUXGA / 1920x1200
Gold plated precision contacts
HDMI-A female to DVI-D Single Link (24+1) female
Logistics Information
Product 1. Net Weight in Kg 0,03
Product 1. Gross Weight in Kg 0,04
Product 1. Length in cm 5,05
Product 1. Width in cm 4,3
Product 1. Height in cm 1,55
Packaging 1. Length in cm 14,3
Packaging 1. Width in cm 8,6
Packaging 1. Height in cm 0,1
Master Carton Length in cm 32,5
Master Carton Width in cm 29
Master Carton Height in cm 30
Product Information
Europeans Customs Tariff Nr. 85366990990
Country of Origin China
Packaging Material Plastic
VPE Information
Master Packaging Unit (pcs) 300
Secondary Packaging Unit (pcs) 10
Connector material PVC
Contact material 24 ct. gold plated, long-life design
Connector 1 HDMI Type A female (19pin)
Connector 2 DVI-D female (24+1pin)
Dimensions Con.2 46,0 x 43,0 x 15,0 (mm)
Contacts 24 ct. gold plated, long-life design
Electric signal
Maximum pixel clock / bandwidth WUXGA (1920x1200)
Type Bi-direct. Adapter
Signal transmission
Supported standards HDMI, DVI
Transmission modes Digital video signals
Supported Colors 8 bit RGB/YUV, Deep Color, x.v.Color™
Further standards FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)
Safety CE (incl. RoHS), FCC
Colour black
Warranty Optional 15 Years Manufacturer's Warranty
Delivery Content
1x PI045 DVI-D socket to HDMI-A socket adapter *bi-directional*
