Features
- DP 1.1 / DVI for resolutions up to WUXGA / 1920x1200, unidirectional
- Gold plated precision contacts with locking mechanism
- DisplayPort male to DVI-D Single Link (24+1) female, 10cm cable

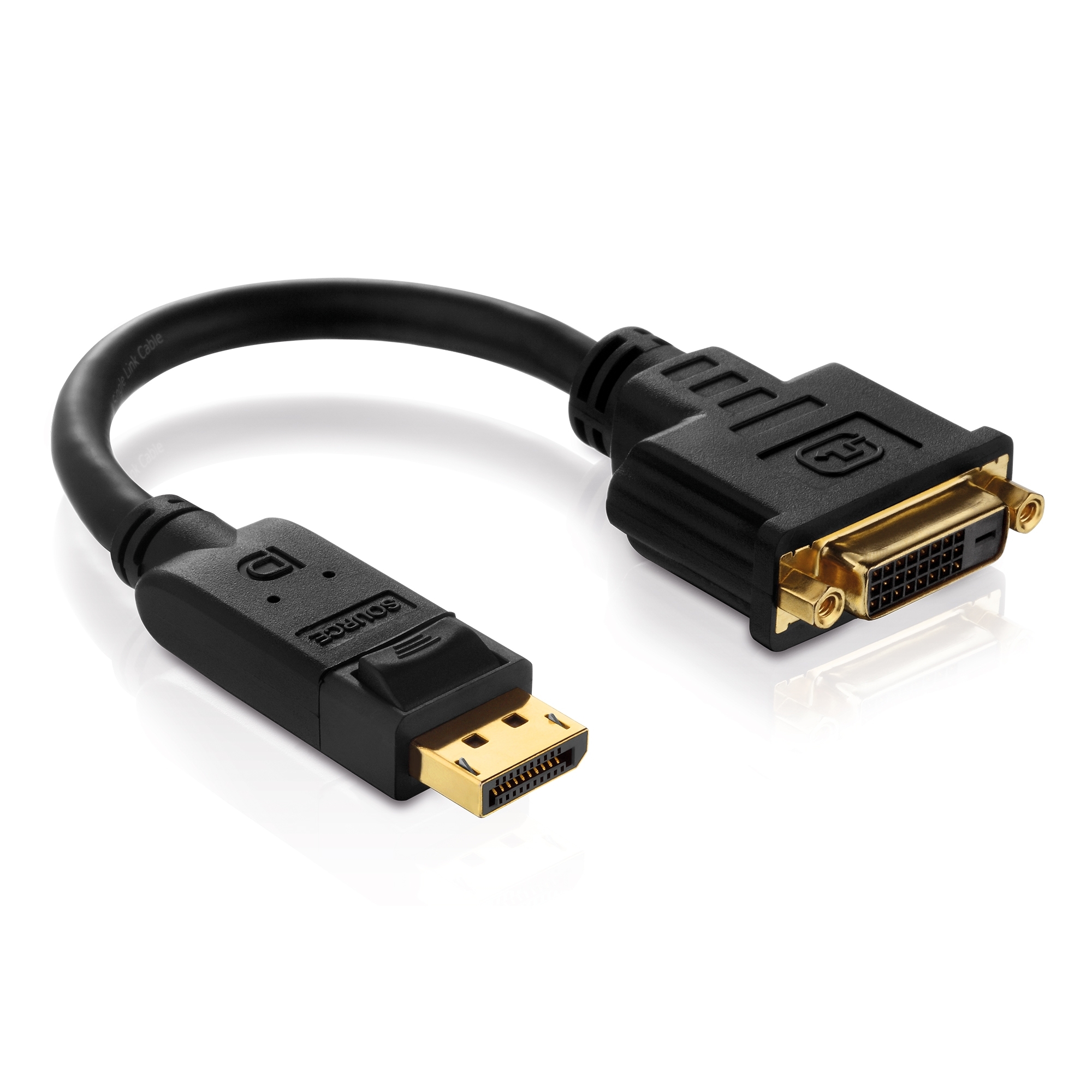

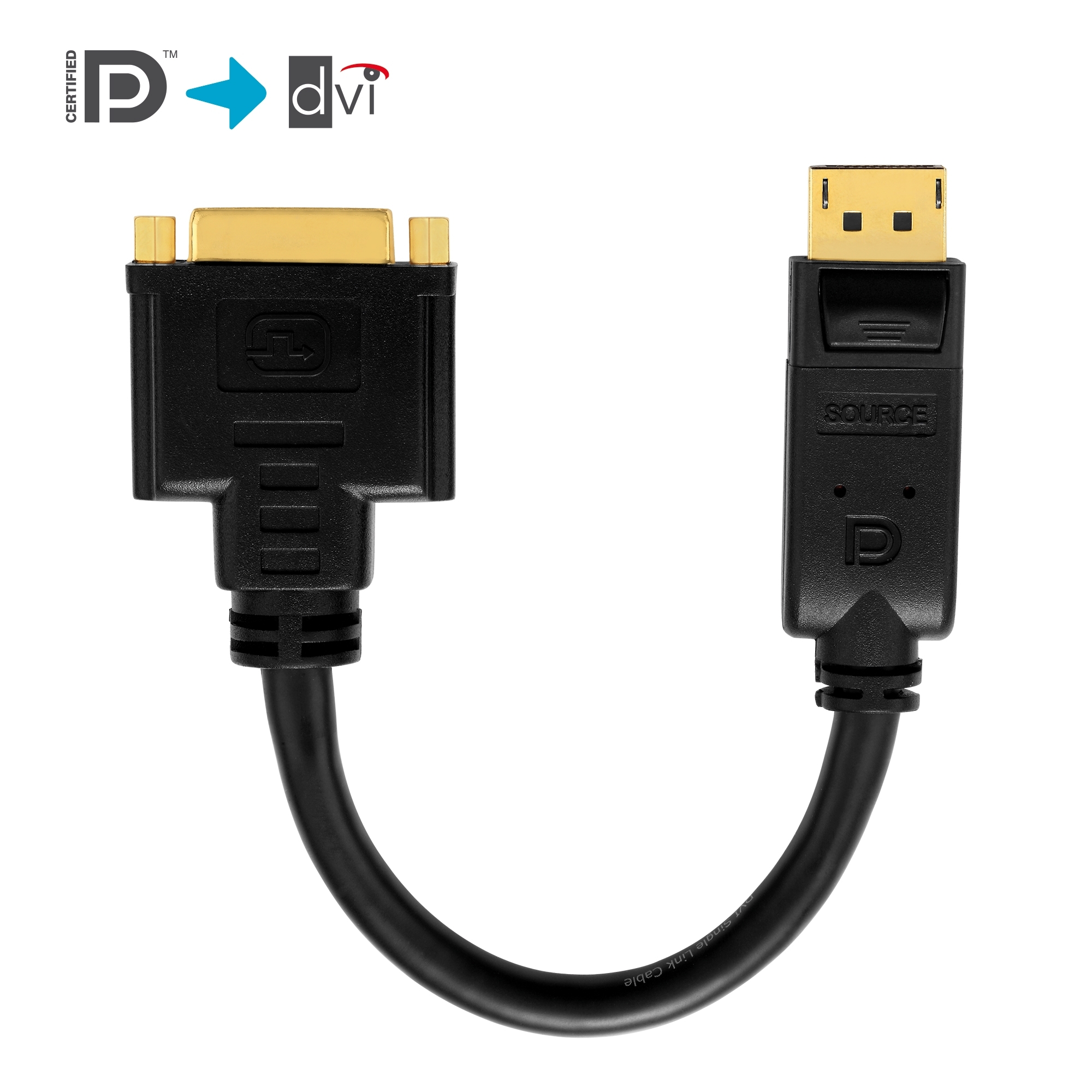

PI170 - DisplayPort to DVI Portsaver Adapter
DisplayPort devices can now be connected to DVI-ready screens - without straining the socket too much!With the PI170 adapter, a DisplayPort output can easily be connected to a common DVI cable and a DVI-ready screen can be used for play back. Additionally, this adapter offers all features of a Portsaver, equipped with traction relief at the socket and a small bending radius. The custom-fit and gold-plated plugs guarantee a durable and undisturbed connection.
BENCHMARK FOR PROFESSIONAL INSTALLATIONS
High-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts, PureInstall products are a good investment for any field of use.The Latest GenerationOur PureInstall DisplayPort to DVI adapters comply with the latest HDMI standard - HDMI High Speed. They support resolutions up to WUXGA (1920x1200) and are downward compatible with all former DP and DVI versions.Extended CompatibilityThe adapter converts signals from DisplayPort (plug) to DVI-D (socket) and therefore extends the compatibility of sources with DisplayPort output effectively by a DVI port for DVI-ready screens. The adapter is, however, not bidirectionally (from DVI source to DisplayPort sink) usable!Never Again Worry about Worn SocketsPortsavers are a reasonable addition when stiff and long and/or thick HDMI cables are being used. The Portsaver is being connected to the socket of the receiving device and reliefs it by picking up the traction coming from the connected cable. Additionally, our Portsavers have an extreme bending radius (up to 180°), thanks to their highly elastic manufacturing. This simplifies the use of stiff HDMI cables in fragile sockets.Custom-fit, Durable and Without LossesThe highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality.Space-Saving InstallationThe product design has been reduced to a significant minimum, allowing for the use of PureInstall adapters in any space. Even if the space offered is limited as it often is when it comes to professional installations. The security aspect, however, is not left out: The DVI plug is of course equipped with the usual screw locks. For Professional Purposes and InstallationsAll PureInstall adapters are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the adapters undergo over ten quality tests, making them the most reliable choice on the market.
Features |
DP 1.1 / DVI for resolutions up to WUXGA / 1920x1200, unidirectional |
Gold plated precision contacts with locking mechanism |
DisplayPort male to DVI-D Single Link (24+1) female, 10cm cable |
Logistics Information | |
Product 1. Net Weight in Kg | 0,05 |
Product 1. Gross Weight in Kg | 0,06 |
Product 1. Length in cm | 1,7 |
Product 1. Width in cm | 3,9 |
Product 1. Height in cm | 1,6 |
Packaging 1. Length in cm | 24,3 |
Packaging 1. Width in cm | 16,6 |
Packaging 1. Height in cm | 0,1 |
Master Carton Length in cm | 41 |
Master Carton Width in cm | 30 |
Master Carton Height in cm | 30 |
Product Information | |
Europeans Customs Tariff Nr. | 85366990990 |
Country of Origin | China |
Packaging Material | Paper |
VPE Information | |
Master Packaging Unit (pcs) | 130 |
Secondary Packaging Unit (pcs) | 10 |
Connections | |
Connector material | PVC |
Contact material | 24 ct. gold plated, long-life design |
Connector 1 | DisplayPort male (20pin) |
Connector 2 | DVI-D female (24+1pin) |
Dimensions Con.1 | 45,9 x 19,5 x 15,0 (mm) |
Dimensions Con.2 | 47,9 x 38,8 x 15,8 (mm) |
Contacts | 24 ct. gold plated, long-life design |
Electric signal | |
Maximum pixel clock / bandwidth | WUXGA (1920x1200) |
HDCP | Yes |
EDID | Yes |
Cable | |
Type | Portsaver |
Lenght | 0.10m |
Inner conductor material | Tinned OFC copper |
AWG | AWG28 |
Number of shieldings | 3 |
Shielding 1 | Aluminium foil (100% density) |
Shielding 3 | Mesh (100% density) |
Outer material | Elastic PVC |
Outer diameter | 7.3mm |
Signal transmission | |
Supported standards | DisplayPort, DVI |
Transmission modes | Digital audio and video signals |
Supported Colors | RGB/YUV, Deep Color, x.v.Color™ |
Further standards | HDCP, FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p) |
Weiteres | |
Safety | CE (incl. RoHS), FCC |
Colour | black |
Warranty | 3 Years Manufacturer's Warranty |
Delivery Content |
1x PI170 DisplayPort plug to DVI-D socket portsaver adapter |
