Features
  • DVI for resolutions up to WUXGA / 1920x1200
  • Gold plated precision contacts with locking mechanism
  • DVI-D Single Link (18+1) male to DVI-D Single Link (24+1) female, 10cm cable

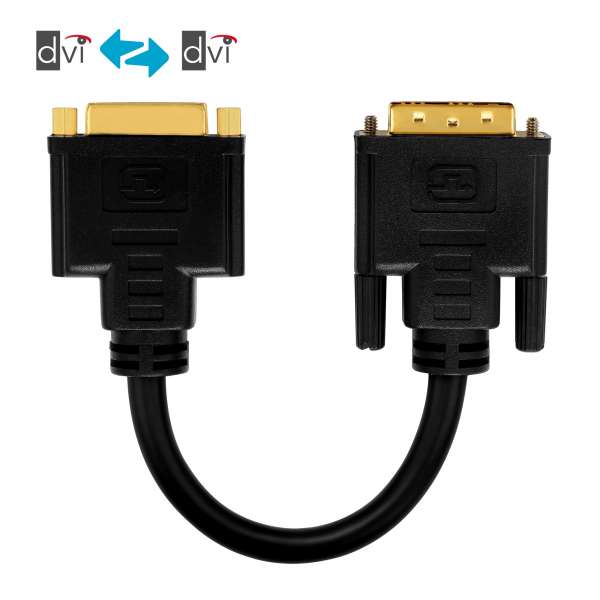

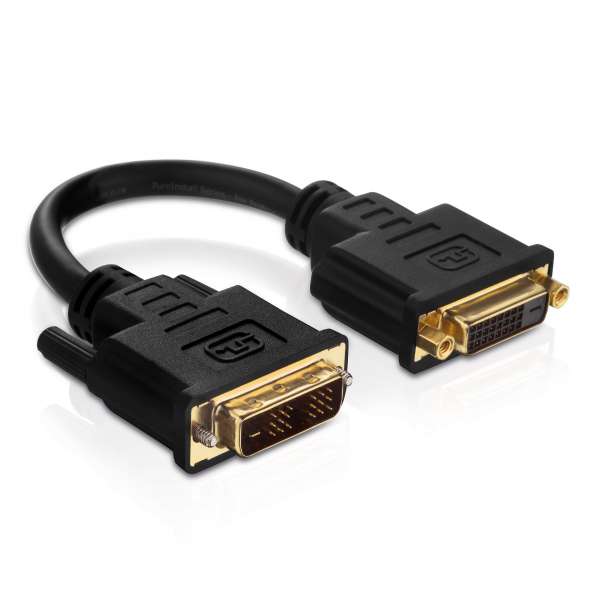

PI070 - DVI to DVI Portsaver
The solution for highly demanded DVI sockets!
The PI070 Portsaver offers the possibility to connect two DVI-ready devices while immensely reducing the traction on the cable at the socket, due to a very smal bending radius. Thanks to its high reliability and the custom-fit, gold-plated plugs, the PI070 is a highly professional and durable product for challenging installations.
BENCHMARK FOR PROFESSIONAL INSTALLATIONS
High-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts, PureInstall products are a good investment for any field of use.

The Latest Generation
Our PureInstall DVI adapters comply with the latest DVI standard - HDMI High Speed. They support resolutions up to WUXGA (1920x1200) and are downward compatible with all former DVI versions.

Never Again Worry about Worn Sockets
Portsavers are a reasonable addition when stiff and long and/or thick HDMI cables are being used. The Portsaver is being connected to the socket of the receiving device and reliefs it by picking up the traction coming from the connected cable. Additionally, our Portsavers have an extreme bending radius (up to 180°), thanks to their highly elastic manufacturing. This simplifies the use of stiff HDMI cables in fragile sockets.

Custom-fit, Durable and Without Losses
The highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality.

Space-Saving Installation
The product design has been reduced to a significant minimum, allowing for the use of PureInstall adapters in any space. Even if the space offered is limited as it often is when it comes to professional installations. The security aspect, however, is not left out: The DVI plug is of course equipped with the usual screw locks.

For Professional Purposes and Installations
All PureInstall adapters are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the adapters undergo over ten quality tests, making them the most reliable choice on the market.
Features
DVI for resolutions up to WUXGA / 1920x1200
Gold plated precision contacts with locking mechanism
DVI-D Single Link (18+1) male to DVI-D Single Link (24+1) female, 10cm cable
Logistics Information
Product 1. Net Weight in Kg 0,08
Product 1. Gross Weight in Kg 0,08
Product 1. Length in cm 20
Product 1. Width in cm 4
Product 1. Height in cm 2
Packaging 1. Length in cm 24,3
Packaging 1. Width in cm 16,6
Packaging 1. Height in cm 0,1
Master Carton Length in cm 41
Master Carton Width in cm 30
Master Carton Height in cm 30
Product Information
Europeans Customs Tariff Nr. 85444290900
Country of Origin China
Packaging Material Plastic
VPE Information
Master Packaging Unit (pcs) 100
Secondary Packaging Unit (pcs) 10
Connections
Connector material PVC
Contact material 24 ct. gold plated, long-life design
Connector 1 DVI-D male (18+1pin)
Connector 2 DVI-D female (24+1pin)
Dimensions Con.1 47,7 x 37,7 x 15,8 (mm)
Dimensions Con.2 47,9 x 38,8 x 15,8 (mm)
Contacts 24 ct. gold plated, long-life design
Electric signal
Maximum pixel clock / bandwidth 1920x1200 WUXGA
HDCP Yes
EDID Yes
Cable
Type Portsaver
Lenght 0.10m
Inner conductor material Tinned OFC copper
AWG AWG28
Number of shieldings 3
Shielding 1 Aluminium foil (100% density)
Shielding 3 Mesh (100% density)
Outer material Elastic PVC
Outer diameter 7.3mm
Signal transmission
Supported standards DVI
Transmission modes Digital video signals
Supported Colors 8 bit RGB/YUV, Deep Color, x.v.Color™
Further standards FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)
Weiteres
Safety CE (incl. RoHS), FCC
Colour black
Warranty Optional 15 Years Manufacturer's Warranty
Delivery Content
1x PI070 DVI-D plug to DVI-D socket portsaver
