Features
  • DP 1.2 / HDMI 1.4 for resolutions up to WUXGA / 1920x1200
  • Gold plated precision contacts with PureLink SLS™ (Secure-Lock-System™)
  • DisplayPort male to HDMI-A female, 10cm cable, non-bidirectional
  • Portsaver for a narrow bending radius and strain relief of device ports
  • Especially suitable for professional applications and installations

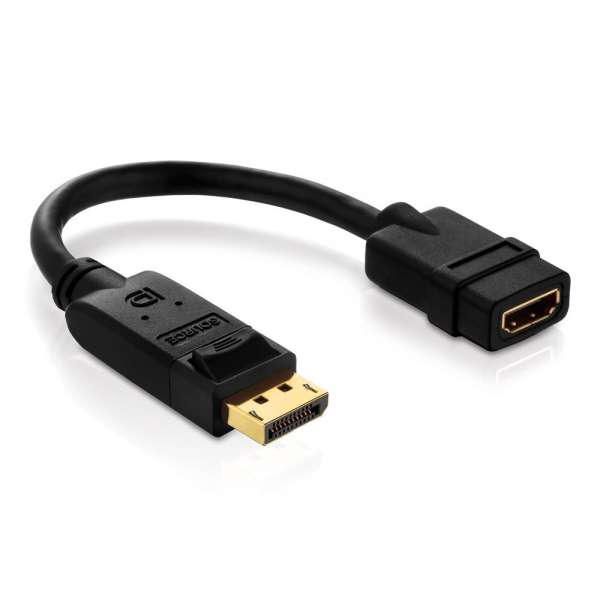

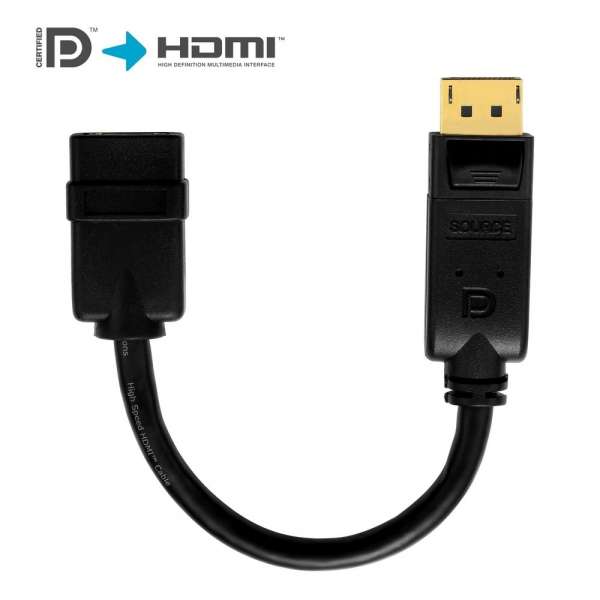

PI155 - DisplayPort to HDMI Portsaver Adapter
The PI155 connects DisplayPort to HDMI and at the same time protects sensitive sockets!
This DisplayPort (plug) to HDMI (socket) adapter offers various features: It offers the connection of a DisplayPort source to a common HDMI cable and extends sources with DisplayPort by a HDMI output effectively. Additionally, the PI155 is a Portsaver, which offers traction relief at the socket and comes with a small bending radius - a professional product for professional use. Please note, that this adapter does not work bidirectionally, it cannot be used for HDMI sources to connect to DisplayPort-ready sinks.
BENCHMARK FOR PROFESSIONAL INSTALLATIONS
High-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts, PureInstall products are a good investment for any field of use.

The Latest Generation
Our PureInstall HDMI to DisplayPort adapters comply with the latest HDMI standard - HDMI High Speed. They support resolutions up to WUXGA (1920x1200) and are downward compatible with all former DP and HDMI versions.

Extended Compatibility
The adapter converts signals from DisplayPort (plug) to HDMI-A (socket) and therefore extends the compatibility of sources with DisplayPort output effectively by a HDMI port for HDMI-ready screens. The adapter is, however, not bidirectionally (from HDMI source to DisplayPort sink) usable!

Never Again Worry about Worn Sockets
Portsavers are a reasonable addition when stiff and long and/or thick HDMI cables are being used. The Portsaver is being connected to the socket of the receiving device and reliefs it by picking up the traction coming from the connected cable. Additionally, our Portsavers have an extreme bending radius (up to 180°), thanks to their highly elastic manufacturing. This simplifies the use of stiff HDMI cables in fragile sockets.

Secure-Lock-System™
Conventional HDMI plugs easily lose grip in the socket. The solution: PureLink® High Speed HDMI adapters with Secure-Lock-System™. The SLS™ technology was developed by PureLink especially for a more secure use of HDMI connections. This plug design is one of a kind on the current market and enhances the stability of the connection even with high traction rates, securing the connection permanently.

Custom-fit, Durable and Without Losses
The highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality.

For Professional Purposes and Installations
All PureInstall adapters are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the adapters undergo over ten quality tests, making them the most reliable choice on the market.
Features
DP 1.2 / HDMI 1.4 for resolutions up to WUXGA / 1920x1200
Gold plated precision contacts with PureLink SLS™ (Secure-Lock-System™)
DisplayPort male to HDMI-A female, 10cm cable, non-bidirectional
Portsaver for a narrow bending radius and strain relief of device ports
Especially suitable for professional applications and installations
Logistics Information
Product 1. Net Weight in Kg 0,04
Product 1. Gross Weight in Kg 0,05
Product 1. Length in cm 20
Product 1. Width in cm 2,2
Product 1. Height in cm 1,2
Packaging 1. Length in cm 24,3
Packaging 1. Width in cm 16,6
Packaging 1. Height in cm 0,1
Master Carton Length in cm 41
Master Carton Width in cm 30
Master Carton Height in cm 30
Product Information
Europeans Customs Tariff Nr. 85444290900
Country of Origin China
Packaging Material Paper
VPE Information
Master Packaging Unit (pcs) 130
Connections
Connector material PVC
Contact material 24 ct. gold plated, long-life design
Connector 1 DisplayPort male (20pin)
Connector 2 HDMI Type A female (19pin)
Dimensions Con.1 53,0 x 20,0 x 11,0 (mm)
Dimensions Con.2 39,6 x 23,6 x 12,3 (mm)
Contacts 24 ct. gold plated, long-life design
Electric signal
Maximum pixel clock / bandwidth 4K / UltraHD / 2160p (4096x2160)
HDCP Yes
EDID Yes
Cable
Type Portsaver
Lenght 0.10m
Inner conductor material Tinned OFC copper
AWG AWG28
Number of shieldings 3
Shielding 1 Aluminium foil (100% density)
Shielding 3 Mesh (100% density)
Outer material Elastic PVC
Outer diameter 7.3mm
Signal transmission
Supported standards HDMI, DisplayPort
Transmission modes Digital audio and video signals
Supported Colors RGB/YUV, Deep Color, x.v.Color™
Further standards HDCP, FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)
Weiteres
Safety CE (incl. RoHS), FCC
Colour black
Warranty 1 year
Delivery Content
1x PI155 DisplayPort plug to HDMI-A socket portsaver
