PT-MA-HD44UHD

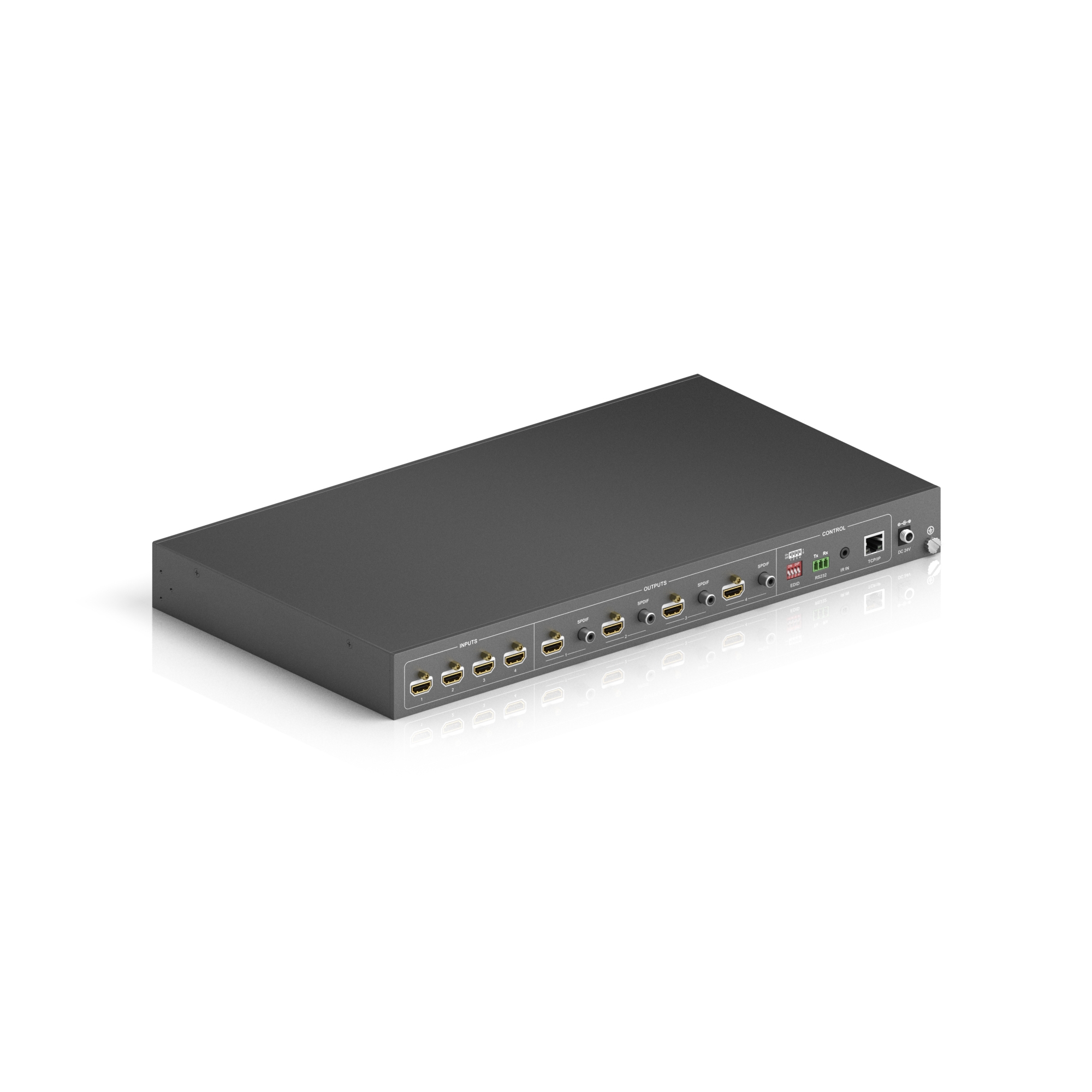

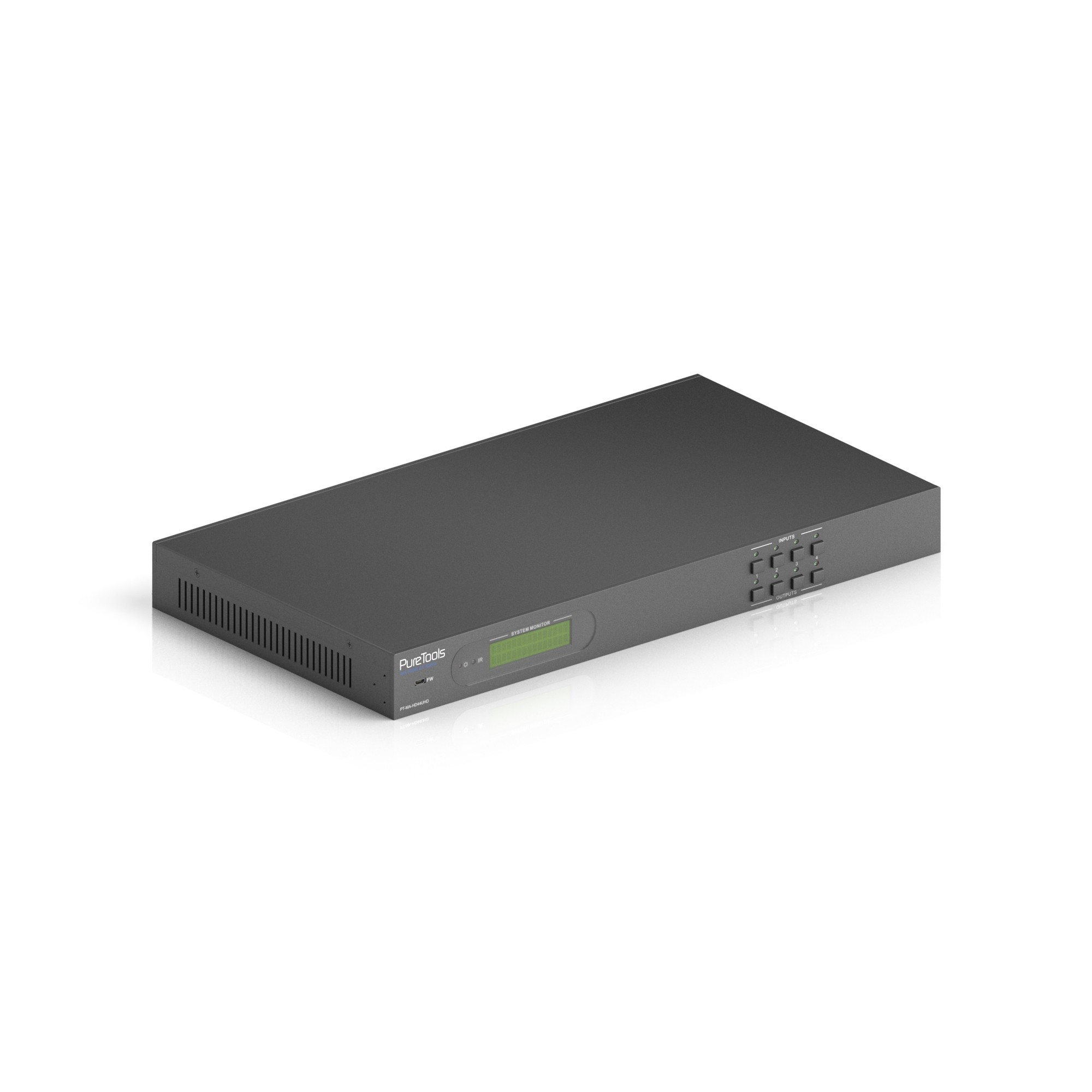

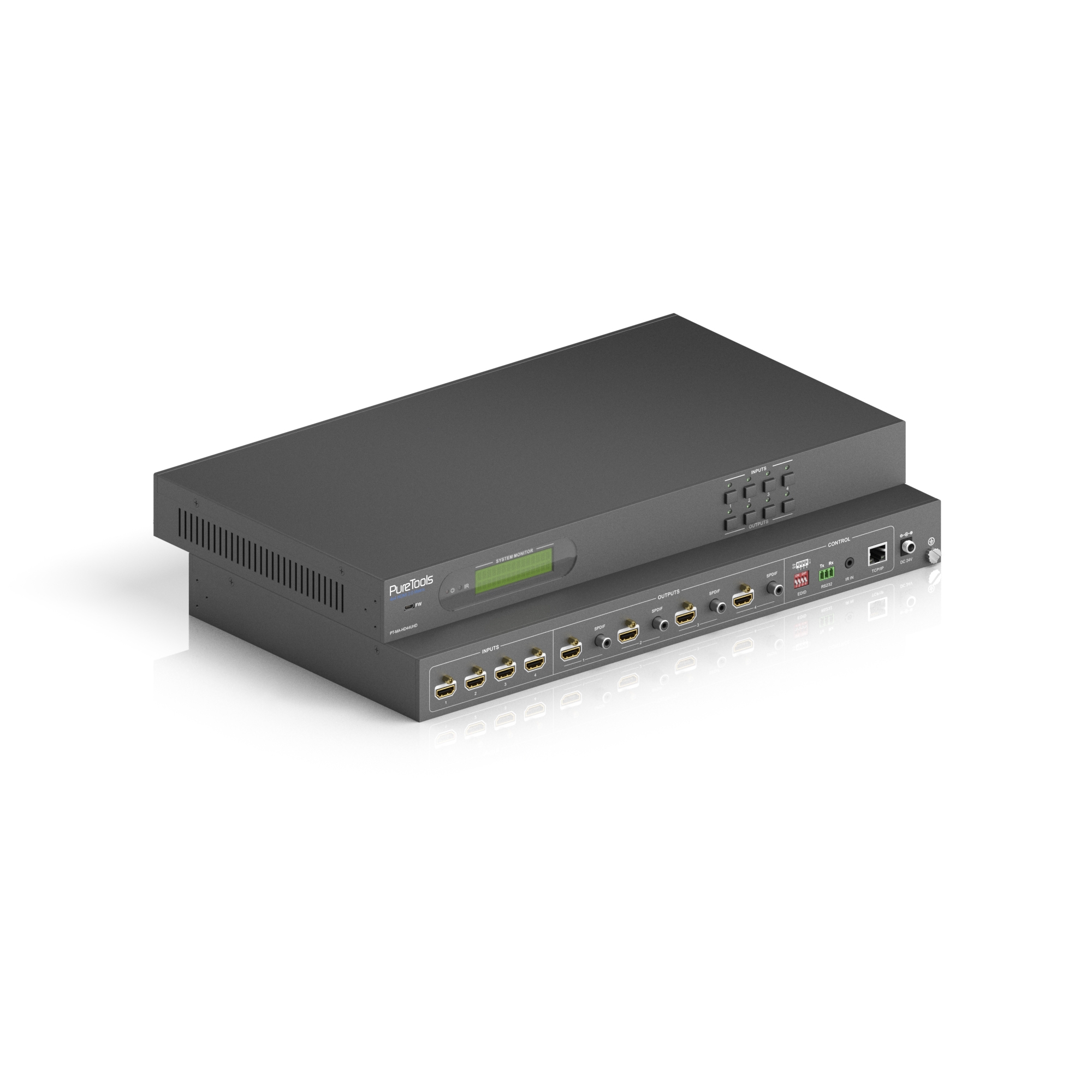

PureTools - HDMI 2.0 Matrix 4x4, 4K (60Hz 4:4:4)

Preview: PureTools - HDMI 2.0 Matrix 4x4, 4K (60Hz 4:4:4) Preview: PureTools - HDMI 2.0 Matrix 4x4, 4K (60Hz 4:4:4) Preview: PureTools - HDMI 2.0 Matrix 4x4, 4K (60Hz 4:4:4) Preview: PureTools - HDMI 2.0 Matrix 4x4, 4K (60Hz 4:4:4)
PureTools - HDMI 2.0 Matrix 4x4, 4K (60Hz 4:4:4)
PureTools - HDMI 2.0 Matrix 4x4, 4K (60Hz 4:4:4)
PureTools - HDMI 2.0 Matrix 4x4, 4K (60Hz 4:4:4)
PureTools - HDMI 2.0 Matrix 4x4, 4K (60Hz 4:4:4)

PureTools
ONEAV B2B-SHOP
Features
  • Compatible with the latest Ultra-High Definition sources and displays, displaying signals at resolutions up to 4K @60 4:4:4 (18Gbps) and shows crystal clear HDR media to its best ability.
  • The PT-MA-HD44UHD simple yet intuitive Web GUI and IR remote are all you need for user control, for more comprehensive control and set up, TCP/IP and RS232 commands are available.
  • Advanced control over IP is simple. Remotely configure settings and even install FW. Remote upgrades limit on-site time and allow installers to perform maintenance remotely and out of hours.
  • Dolby Digital, DTS, and DTS-HD can be extracted from all channels. Audio is output via a digital COAX for use with an AVR or other digital audio device, making it ideal for pro home cinema.
  • Designed for flawless operation. Its powerful combination of fixed DIP switch EDID setting or flexible port by port GUI settings, will guarantee impeccable video reproduction.
PureTools
ONEAV B2B-SHOP
Description Features Logistics Specifications Delivery Content Dokumente
Description
Zurück
4K (60Hz 4:4:4) HDR Matrix Switcher
The PT-MA-HD44UHD is a professional 4K HDMI2.0a matrix switcher designed for home cinema, control room and digital signage applications. This matrix is able to handle the absolute maximum 2.0a bandwidth and high dynamic range content with ease. The SPDIF outputs on every channel extract the audio in HD formats such as DTS-X and Dolby Atmos for use with external amplification and surround sound. This coupled with a rack mount frame, full GUI control and smart EDID management, makes for a simple to use, cost effective 18Gbps professional matrix solution.
4x4 HDMI 2.0a Matrix
FULL 18GBPS AND HDR
Compatible with the latest Ultra-High Definition sources and displays, displaying signals at resolutions up to 4K @60 4:4:4 (18Gbps) and shows crystal clear HDR media to its best ability.

INTUITIVE CONTROL
The PT-MA-HD44UHD simple yet intuitive Web GUI and IR remote are all you need for user control, for more comprehensive control and set up, TCP/IP and RS232 commands are available.

REMOTE UPGRADE
Advanced control over IP is simple. Remotely configure settings and even install FW. Remote upgrades limit on-site time and allow installers to perform maintenance remotely and out of hours.

CINEMA SOUND
Dolby Digital, DTS, and DTS-HD can be extracted from all channels. Audio is output via a digital COAX for use with an AVR or other digital audio device, making it ideal for pro home cinema.

FLEXIBLE EDID MANAGEMENT
Designed for flawless operation. Its powerful combination of fixed DIP switch EDID setting or flexible port by port GUI settings, will guarantee impeccable video reproduction.

RACK MOUNTABLE
All of this technology is packed into a 1U enclosure, for installation into a professional rack.
Features
Zurück
Features
Compatible with the latest Ultra-High Definition sources and displays, displaying signals at resolutions up to 4K @60 4:4:4 (18Gbps) and shows crystal clear HDR media to its best ability.
The PT-MA-HD44UHD simple yet intuitive Web GUI and IR remote are all you need for user control, for more comprehensive control and set up, TCP/IP and RS232 commands are available.
Advanced control over IP is simple. Remotely configure settings and even install FW. Remote upgrades limit on-site time and allow installers to perform maintenance remotely and out of hours.
Dolby Digital, DTS, and DTS-HD can be extracted from all channels. Audio is output via a digital COAX for use with an AVR or other digital audio device, making it ideal for pro home cinema.
Designed for flawless operation. Its powerful combination of fixed DIP switch EDID setting or flexible port by port GUI settings, will guarantee impeccable video reproduction.
Logistics
Zurück
Logistics Information
Product 1. Net Weight in Kg 1,75
Product 1. Gross Weight in Kg 2,30
Product 1. Length in cm 43,7
Product 1. Width in cm 23,6
Product 1. Height in cm 4,4
Packaging 1. Length in cm 52,5
Packaging 1. Width in cm 32,5
Packaging 1. Height in cm 12
Master Carton Length in cm 36
Master Carton Width in cm 57
Master Carton Height in cm 62
Product Information
Europeans Customs Tariff Nr. 85437090990
Country of Origin China
Packaging Material Paper
VPE Information
Master Packaging Unit (pcs) 2
Specifications
Zurück

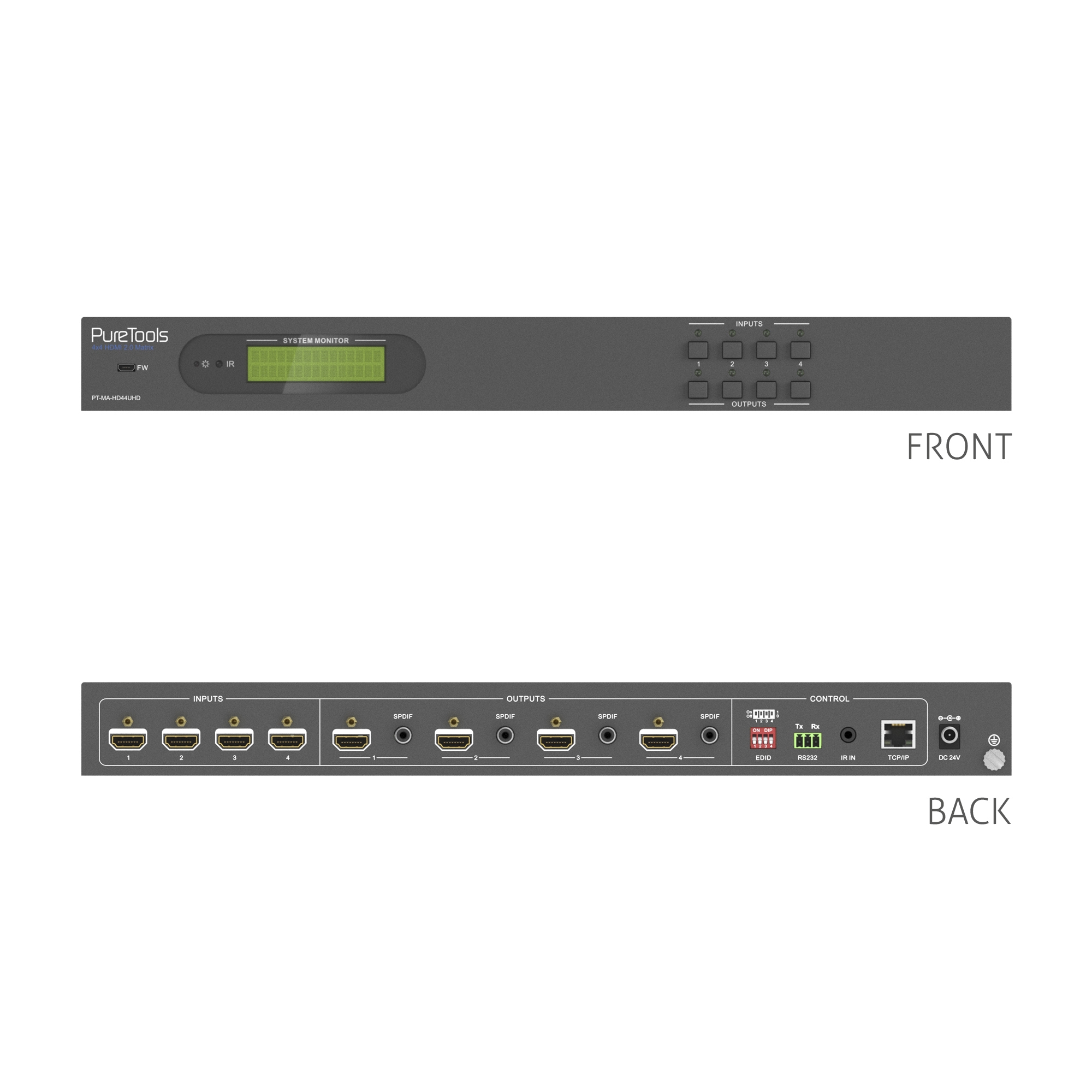

Connections
Input connector(s) 4 x HDMI
Output connector(s) 4 x HDMI
Power connector(s) 24VDC, 1.25A
Control connector(s) Control Ports 1 x TCP/IP (RJ45); 1 x RS232 (3 pin
Electric signal
Maximum data rate ≤5m
Standards HDMI 2.0a & HDCP2.2
HDCP Yes
EDID Yes
Mechanical
Power supply 14W max.
Power consumption 24VDC, 1.25A
Operating temperature -10°C ~ 55°C
Humidity 10% ~ 90%
Dimensions 437.0mm × 44.0mm × 2
Signal transmission
Supported standards HDMI 2.0a & HDCP2.2
Supported audio standards Dolby Digital, DTS, DTS-HD
Weiteres
Safety CE, FCC
Colour black
Warranty Optional 5 Years Manufacturer's Warranty
Delivery Content
Zurück
Delivery Content
1x PT-MA-HD44UHD 4K (60Hz 4:4:4) HDR Matrix Switcher
1x Installation Kit (2x Mounting Ears, 6x Screws, 4x Plastic Cushions)
1x IR Kit (1x IR Remote, 1x IR Receiver)
1x Power Adaptor (24VDC 1.25A), 1x User Manual
OPTIONAL: PTM-RS100 Universal RS232 Cable with Adjustable Pin Settings
