- Cat.6a with up to 500MHz for 10GBase-T Ethernet and HDBaseT
- Gold plated precision contacts
- Neutrik NE8MX-B-1 RJ45 male to Neutrik NE8MX-B-1 RJ45 male
- High purity copper conductors, S/FTP shielding, AWG24
- Halogen-free (LSZH) jacket, low smoke emissions in case of fire
IQ Series IQ-CAT6 Cat.6a S/FTP Patch Cable
The IQ-CAT6-NR700 is a 70.00 meter long Cat.6a Ethernet patch cable included in PureLink's IQ series, which is equipped with Neutrik NE8MX-B-1 connectors and a halogen-free cable sheathing. Neutrik's professional plugs with nickel housing, clamping mechanism and bend protection are lockable and guarantee a tight fit in the corresponding jacks. The halogen-free production of the cable results in less smoke in case of fire (LSZH). The cable with 7.0mm outer diameter (AWG24) enables data transmission speeds of up to 10,000 Mbit/s (10 Gigabit / second) with an operating frequency of up to 500MHz. It is also equipped with S/FTP shielding, high-purity solid core copper conductors as well as gold plated precision contacts and delivered on a professional cable reel.
The IQ Series by PureLink – Installation Quality for Intelligent Quotations
The IQ-CAT6A Ethernet cables of the IQ series are designed for the distribution of network signals with up to 10 Gigabit or a maximum frequency of 500MHz and thus enable IPAV (AV over IP) as well as HDBaseT infrastructures in addition to the conventional TCP/IP distribution. The network cables comply with the Cat.6a standard and feature S/FTP shielding as well as high purity solid core inner conductors. The contacts are gold-plated.

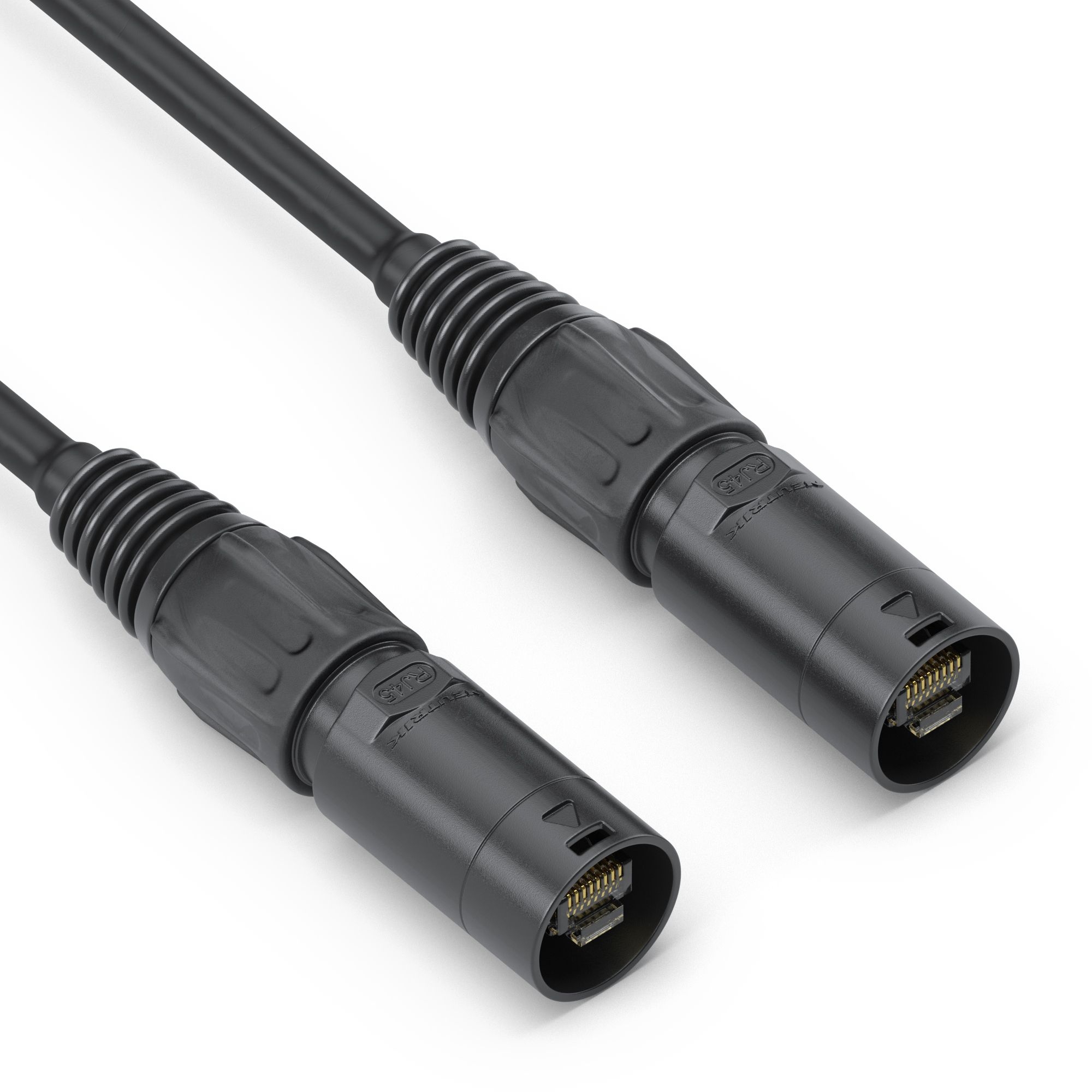

The lockable NE8MX-B-1 connectors from Neutrik are designed to provide a professional solution with a tight fit into suitable sockets. The plugs are equipped with a robust die-cast housing, a clamping mechanism and bend protection, perfect for rough environments subject to heavy duty use. Their full potential is best seen in fail-safe scenarios such as installations at trade fairs or broadcast vans as well as industrial applications.
The cable is equipped with a halogen-free cable sheathing (LSZH) and therefore develops significantly less smoke in the event of fire than cable sheaths manufactured with halogens.
The patch cables are available in lengths between 1.00 and 100.00 meters and can therefore also be used for long distances such as AV over IP or HDBaseT transmission.
Up to 20 meters the outer cable diameter is 6.2mm with AWG26. From 30 meters cable length it is 7.0mm with AWG24.

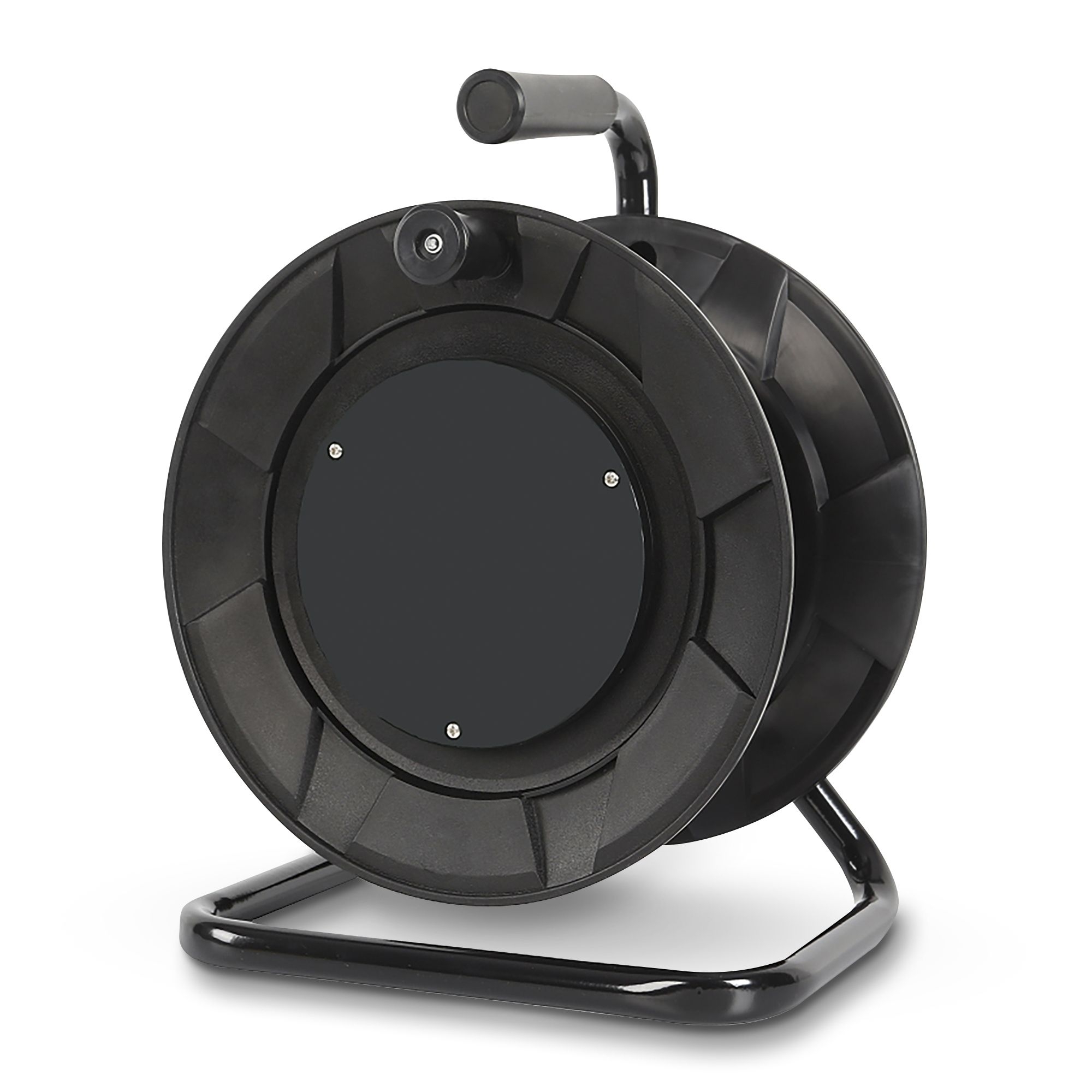

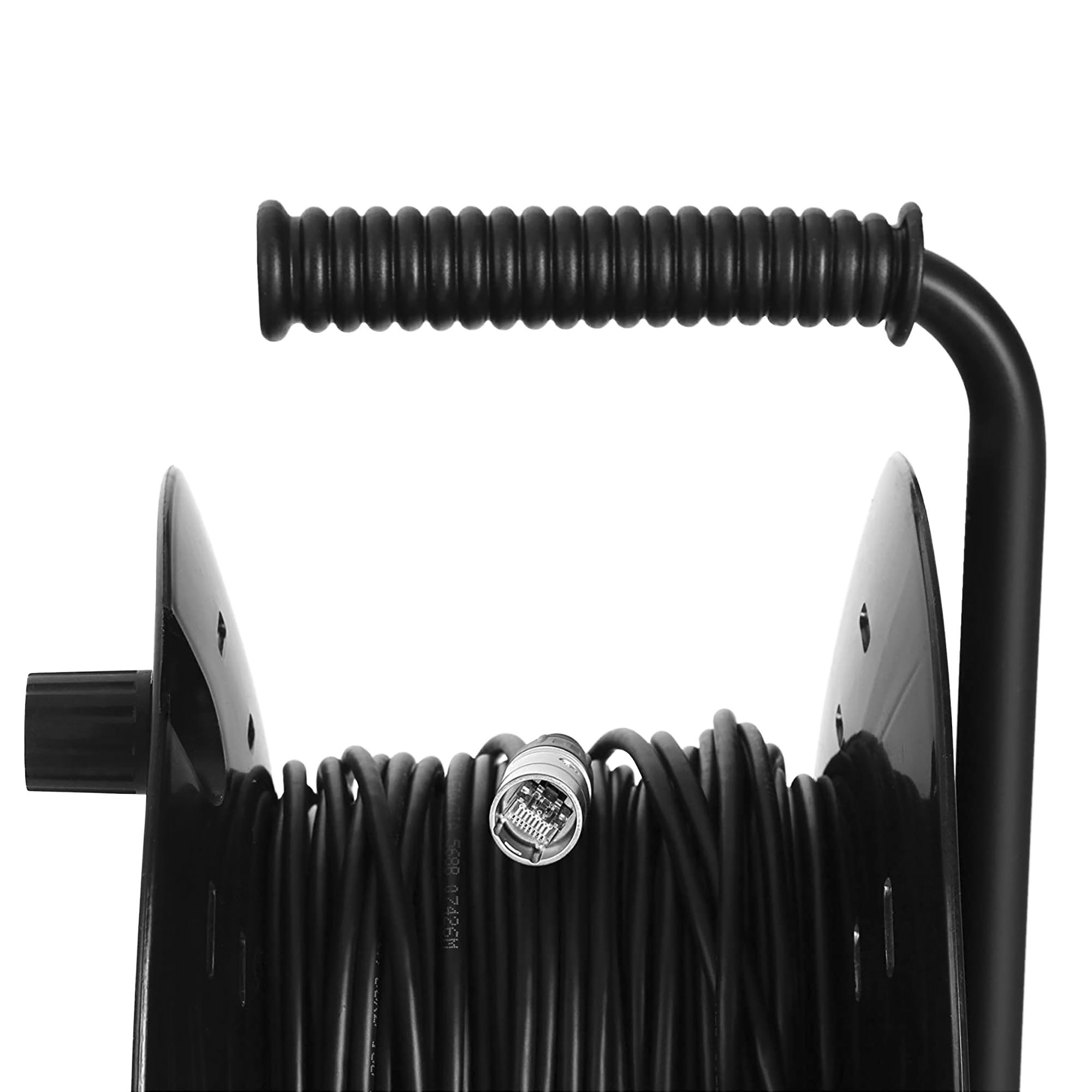

The lengths between 30.00 and 100.00 meters are supplied on a professional reel. This cable reel features a rubber-coated handle, a turning knob, a side-mounted cable outlet and a screwable rotary lock. Long transmission paths, e.g. from event halls, theaters, conference rooms or churches can be bypassed quickly and without any loss. In addition, the efficiency of setup and teardown can be increased and storage optimized - perfect for events and stage technology.
IQ Series - Installation Quality for Intelligent Quotations
No frills installation-level products at a fair price - this concept defines perhaps the smartest product line from PureLink.
IQ can be taken quite literally: A "Smart Buy" for every planner and installer, featuring products and intelligent little helpers for the integrators' everyday needs.
We thought it through so that you can focus on the job at hand.
This applies to professional purchasing staff, but also to the single installation and everyday use of PureLink IQ products.
|Cat.6a with up to 500MHz for 10GBase-T Ethernet and HDBaseT|
|Gold plated precision contacts|
|Neutrik NE8MX-B-1 RJ45 male to Neutrik NE8MX-B-1 RJ45 male|
|High purity copper conductors, S/FTP shielding, AWG24|
|Halogen-free (LSZH) jacket, low smoke emissions in case of fire|
|Product 1. Net Weight in Kg||4,00|
|Product 1. Gross Weight in Kg||4,00|
|Product 1. Length in cm||32|
|Product 1. Width in cm||24|
|Product 1. Height in cm||37|
|Packaging 1. Length in cm||32|
|Packaging 1. Width in cm||24|
|Packaging 1. Height in cm||0,3|
|Master Carton Length in cm||47|
|Master Carton Width in cm||33|
|Master Carton Height in cm||40|
|Europeans Customs Tariff Nr.||85444210000|
|Country of Origin||China|
|Master Packaging Unit (pcs)||2|
|Connector material||Die-cast, Nickel-plated|
|Connector 1||Neutrik RJ45|
|Connector 2||Neutrik RJ45|
|Dimensions Con.1||67,55mm x Ø19,9mm|
|Dimensions Con.2||67,55mm x Ø19,9mm|
|Inner conductor material||Copper|
|Warranty||3 Years Manufacturer's Warranty|
|1x IQ-CAT6A-NR700 Cat.6a Patch Cable, Neutrik RJ45, S/FTP, LSZH, cable reel - 70.00m, black|
Dokumente "Cat.6a Patch Cable, Neutrik NE8MX-B-1 RJ45, S/FTP, LSZH, Reel – 70.00m"
