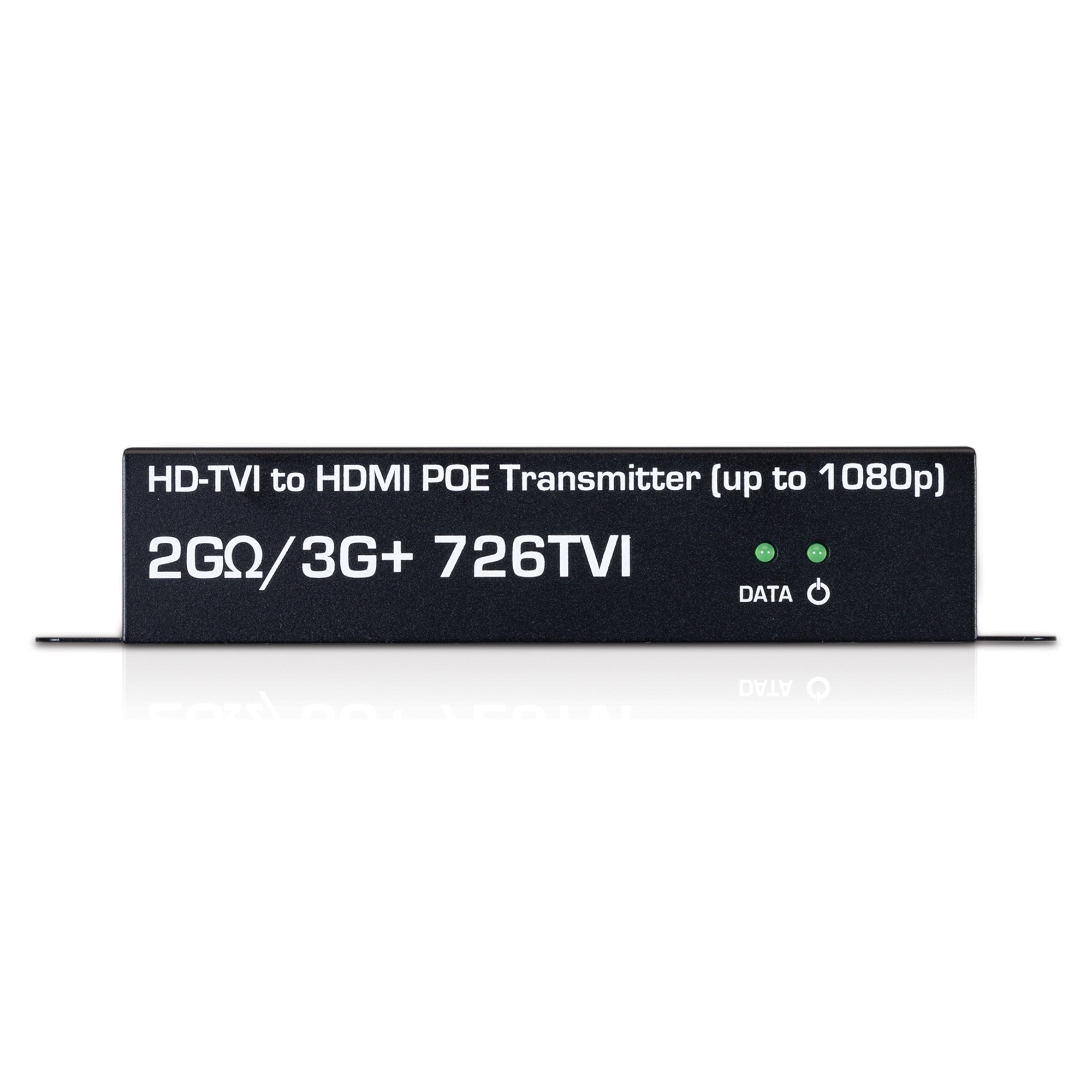

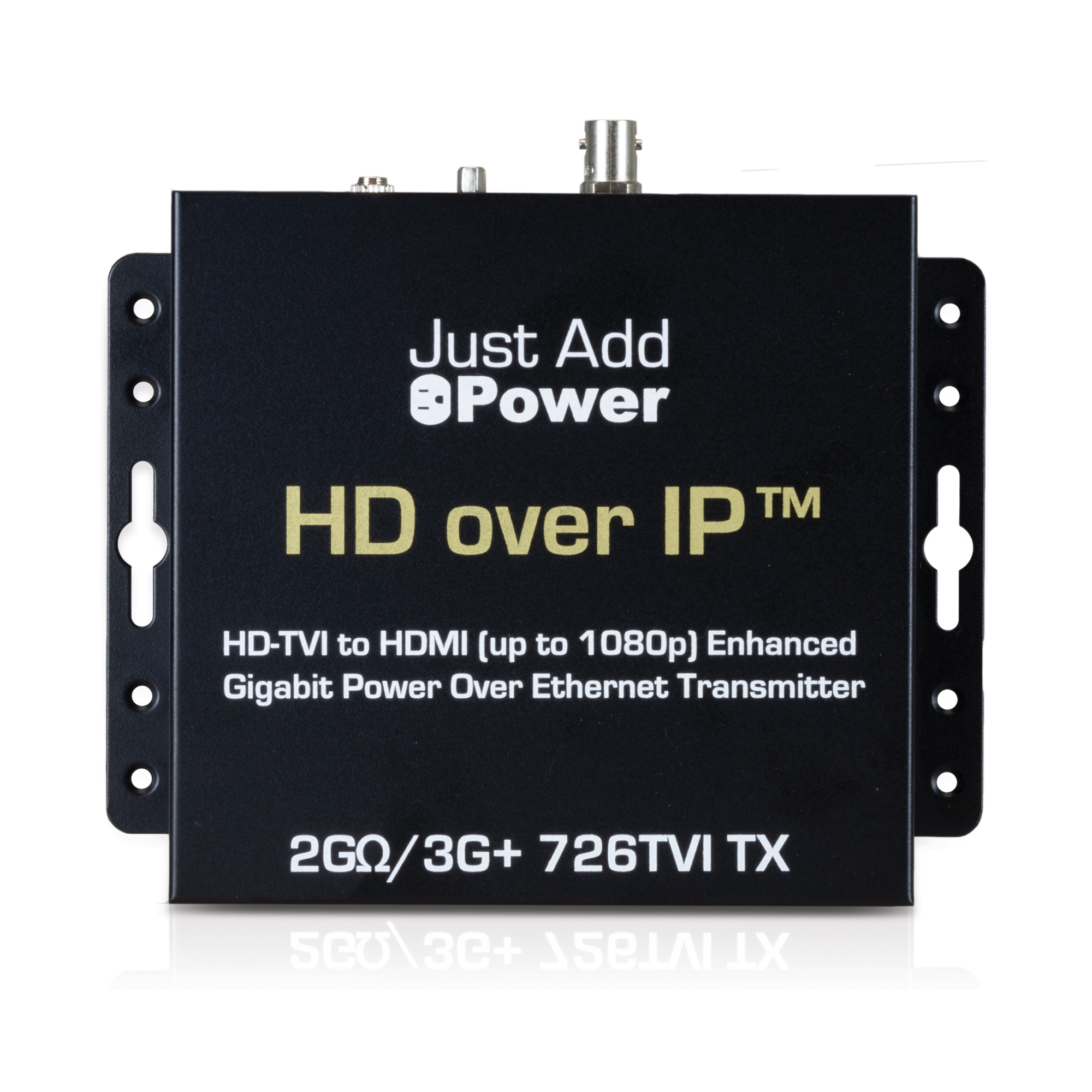

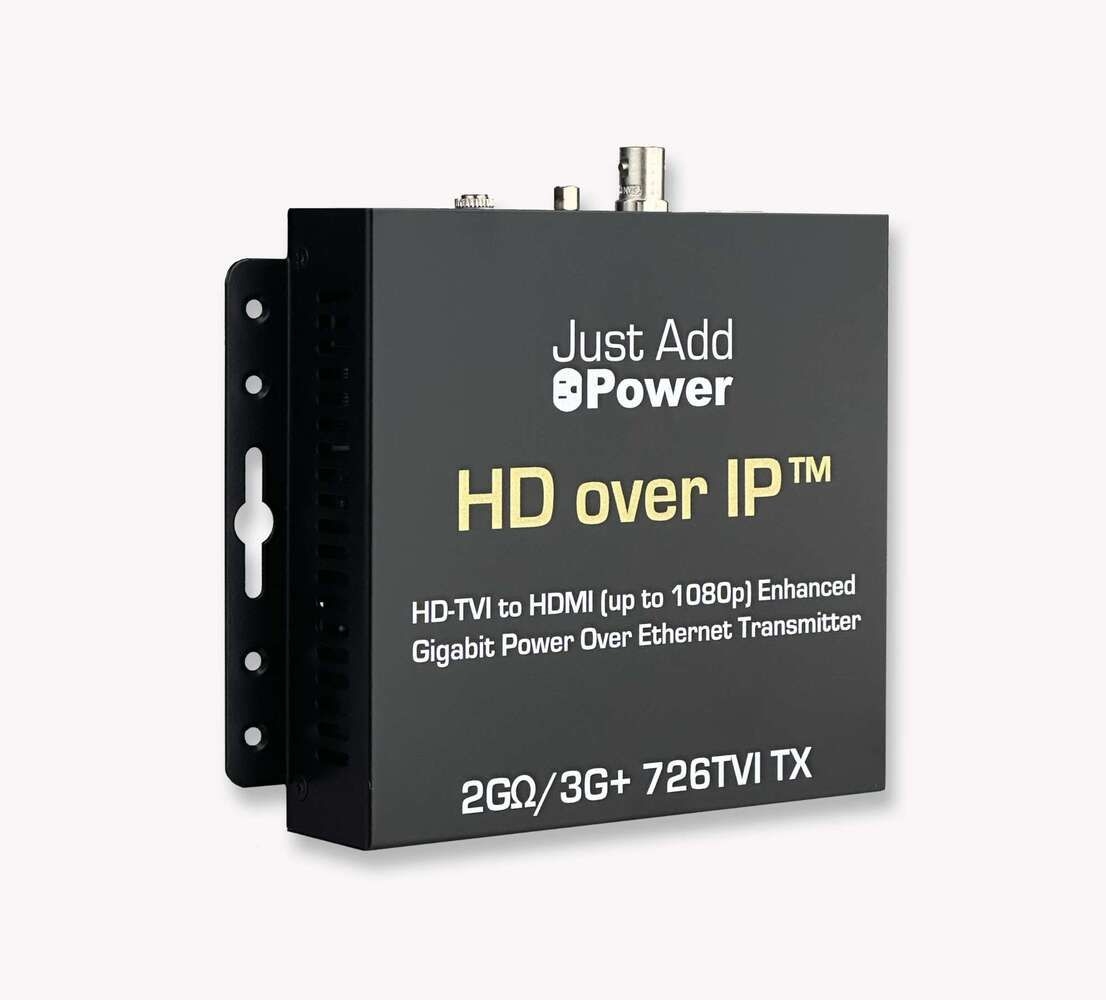

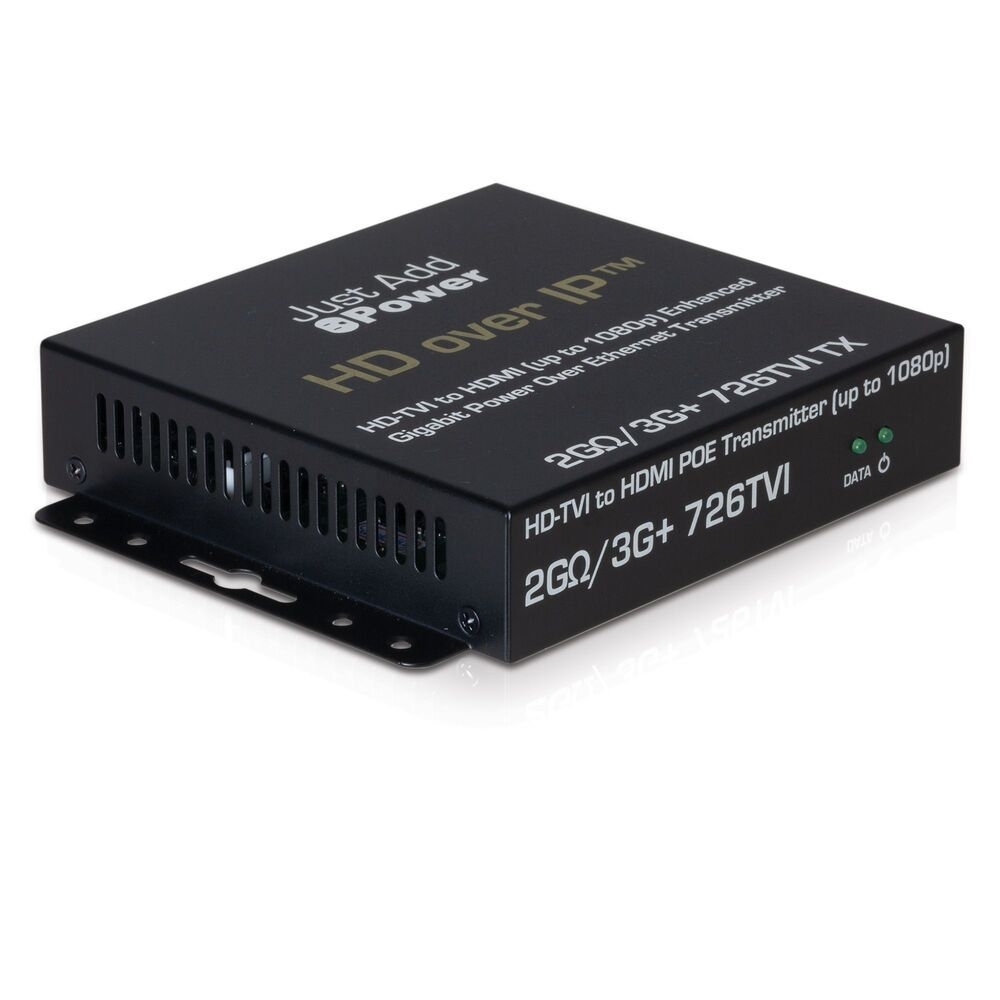

2K TVI over IP Transmitter - 2GΩ/3G+ PoE Series

More than 10 years of experience as the pioneers of HDMI over IP with thousands of completed projects

Video matrixing over IP
Unlike other IP-based solutions, theres no need to use a costly 10Gb Managed Switch or fibre optic cabling. All that is needed to create any size of 4K-capable HDMI matrix is a single 3G Ultra HD over IP transmitter per HDMI source, a Layer 3 Gigabit Managed Switch, a 3G receiver per screen and a compatible control system a top aCat 5e / 6 cabling infrastructure.

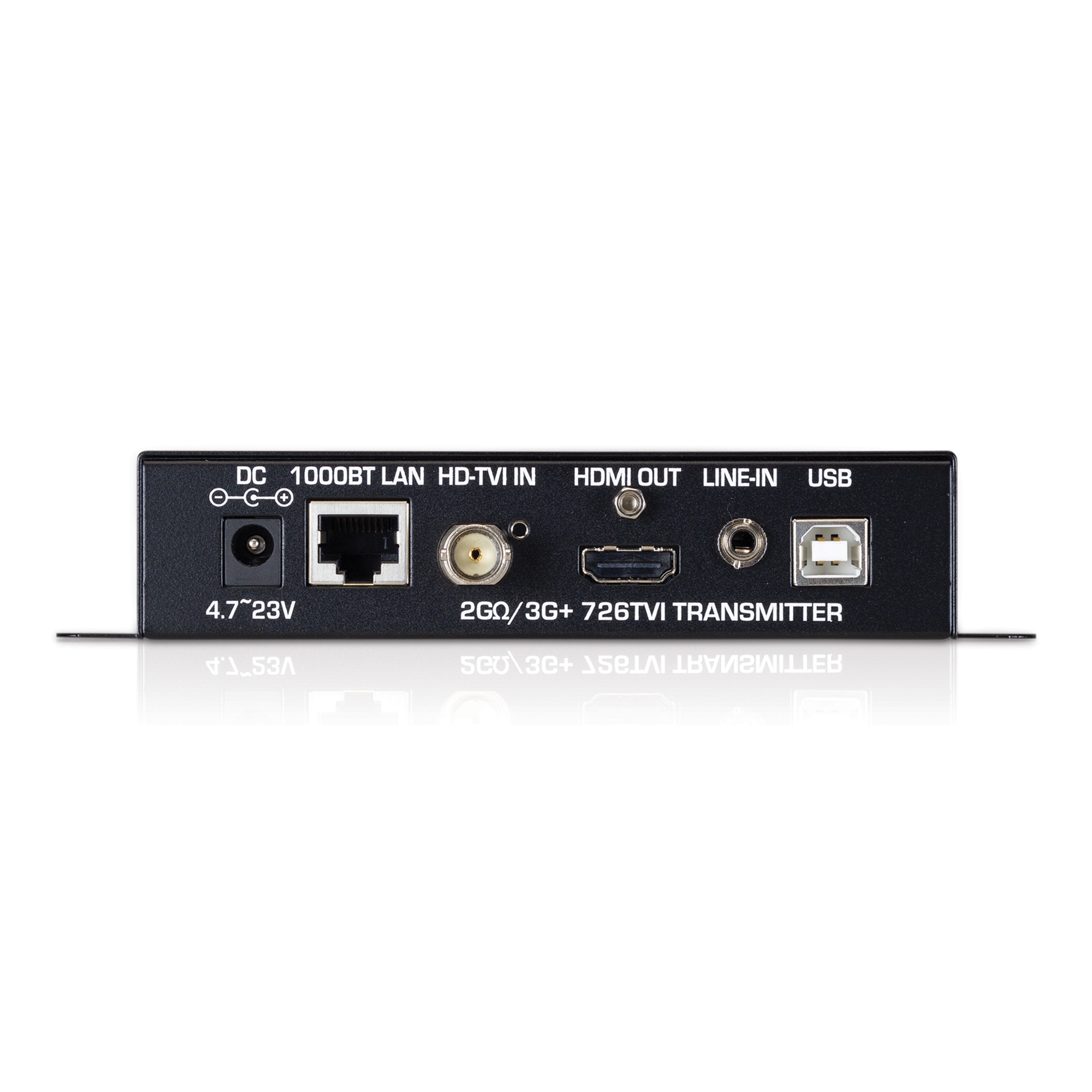

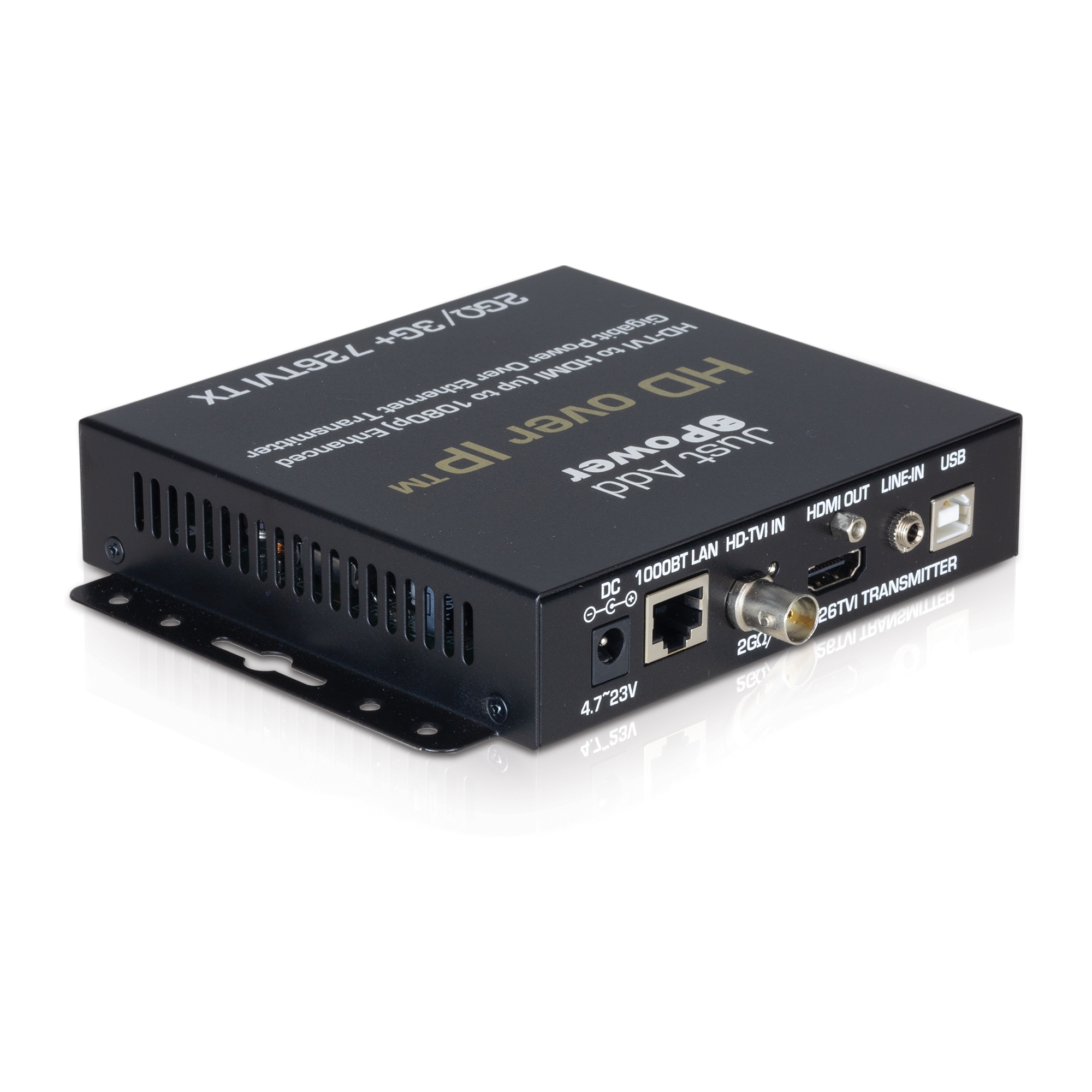

Specific Features of VBS-HDIP-726TVI:
- HD-TVI with up to 1080p
- HDMI pass-through (max. FullHD / 1080p)
- Line-in (3.5mm) for custom analog audio embedding
- USB 2.0 pass-through from Receiver
- Image Play - Push, Pull & Pop


Chipset
The Just Add Power 3G chipset is flexible,affordable, and feature rich, all without sacrificing an ounce of performance or quality.
Flawless video with seamless HDR Management and Audio Management in any format up to Dolby Atmos.
Just Add Power is the only HDMI over IP system built on the sustainable Evolution not Revolution Design platform. That means you dont toss out Products after a year or two. Just Add Power products are designed for Decades of use!
- Flawless Performance
- Buy it Once
- Use for Decades
- Forward Compatibility
- Backward Compatibility
- Free Updates
- Same Switch
- Same Cabling
- Same Control Drivers


We exclusively recommend the use of "Luxul" brand Ethernet switches (to be found here in the shop under "LUX-") for the use with Just-Add-Power devices!

If you want to use a third-party switch, please keep in mind the following information regarding the required product features:
1. Layer 3 (Managed Switch)
2. Jumbo frame support (enabled and set to "high" - for Luxul switches, this is already done via JADConfig)
3. PoE support (if no power supply is to be used)

Further, JAP devices and the third-party switch cannot be configured using JADConfig, so each device and the third-party switch must be configured separately and manually!
In addition, the control options via "MediaSwitcher" are not available - additional hardware / software is required.
We also ask for your understanding that we cannot offer direct support for configuration and / or control of your JAP system if you use it with a third-party switch.



General Just-Add-Power Specifications and Features:

Zero Detectable Latency
Incredibly low encode / decode latency over the network that is visually undetectable

Seamless Switching
Switching between any source is instant, even when resolution changes

Image Preview
Preview image of any source or display in any web browser or control system up to 10 fps

VGA & HDMI Wall Plate Inputs
VGA and HDMI Wall Plate Transmitters available in multiple colors

DHCP Server
DHCP Server allows shared gigabit LAN without bogging down your network

Campus View
Use any Gigabit switch or VLAN switching

Analog Audio Inputs and Outputs
Analog audio inputs can be mixed or muted with HDMI audio and analog Audio Outputs with adjustable volume and delay on each Transmitter and Receiver

Custom Logo Overlay & Default Image
Overlay a custom logo on any display and load a custom default image

Video Tiling
Four custom windows per tiler. Add more for unlimited windows (view on any screen)

Video Wall
Build up to 256 displays in a single dynamic wall with Image Flip and Rotate function for portrait or landscape installations

Free Automatic Drivers
Custom drivers auto build and configure to the network

Any Size Matrix
Hundreds of sources and thousands of displays in a single project

USB 2.0 Over IP
Keyboard, mouse, touch Interface over IP built in
